2 Motor starters
2.4 Mounting
16 EMS2… Electronic motor starter 10/19 MN034003EN www.eaton.com
2.4 Mounting
Devices in the EMS2-DO-…, EMS2-DOS-…, EMS2-RO-… and EMS2-ROS-…
series are designed for mounting on a 35-mm-top-hat rail.

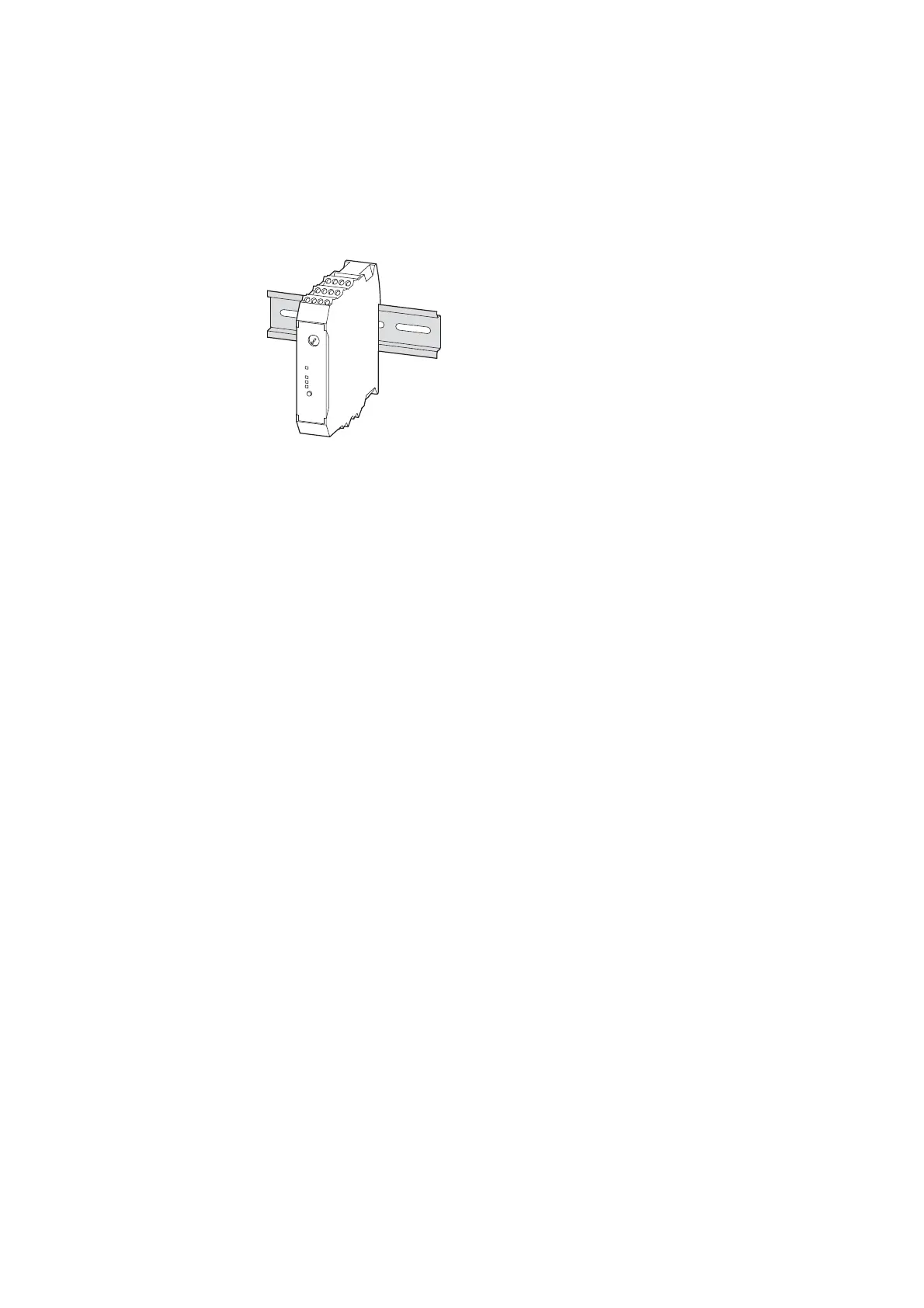

Figure 7: Mounting on top-hat rail
Notes
￫
Note that the direct linking of devices with a rated operational
current I
e
of 9 A can lead to a reduction in performance (derat-
ing) under some circumstances.
￫
EMS-XBR-… (￫ section 9.1.1, “Three-phase current connec-
tor”, page 53) three-phase current connectors can be used to
connect the supply terminals 1L1, 3L2 and 5L3 of up to 5
devices in a row.
