8 Dimensions
8.1 Motor starters
EMS2… Electronic motor starter 10/19 MN034003EN www.eaton.com 51
8 Dimensions
8.1 Motor starters

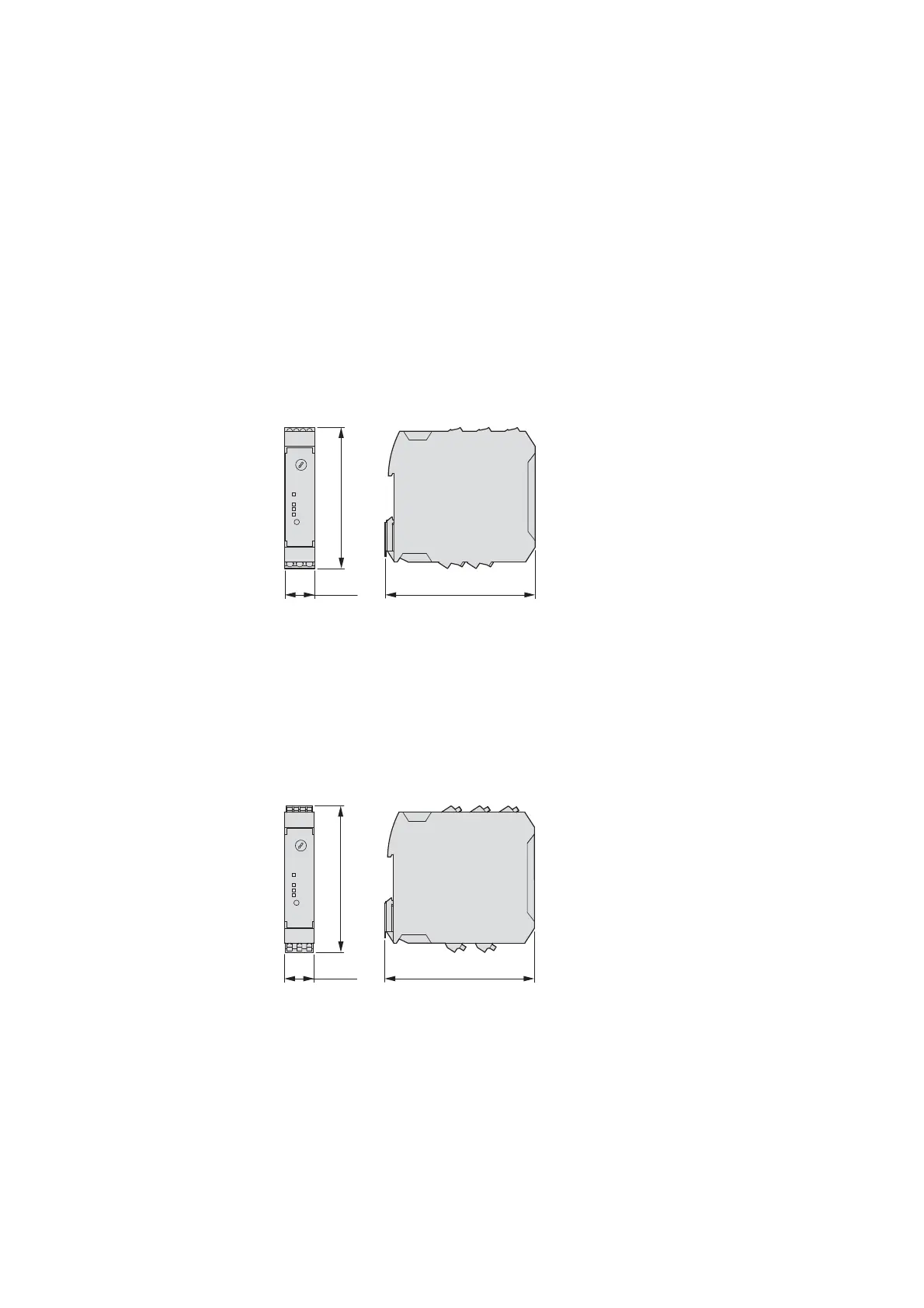

8.1.1 Motor starters with screw terminals for top-hat rail mounting
• EMS2-DO-Z-…
• EMS2-RO-Z-…
• EMS2-DOS-Z-…
• EMS2-ROS-Z-…
Figure 25: EMS2-DO-Z-…, EMS2-RO-Z-…, EMS2-DOS-Z-…, EMS2-ROS-Z-…
8.1.2 Motor starters with push-in terminals for top-hat rail mounting
• EMS2-DO-T-…
• EMS2-RO-T-…
• EMS2-DOS-T-…
• EMS2-ROS-T-…
Figure 26: EMS2-DO-T-…, EMS2-RO-T-…, EMS2-DOS-T-…, EMS2-ROS-T-…
22.5 mm
(0.89")
113.6 mm (4.47")
106.8 mm (4.2")
22.5 mm
(0.89")
113.6 mm (4.47")
110.8 mm (4.36")

Eaton EMS2-DO-T-9-24VDC Specifications

General

Brand	Eaton
Model	EMS2-DO-T-9-24VDC
Category	Industrial Electrical
Language	English
