TM293 MEDC DB3BM UL Technical Manual
SOUNDER/HORN – DB3BM UL TM293.A August 2022 www.eaton.com

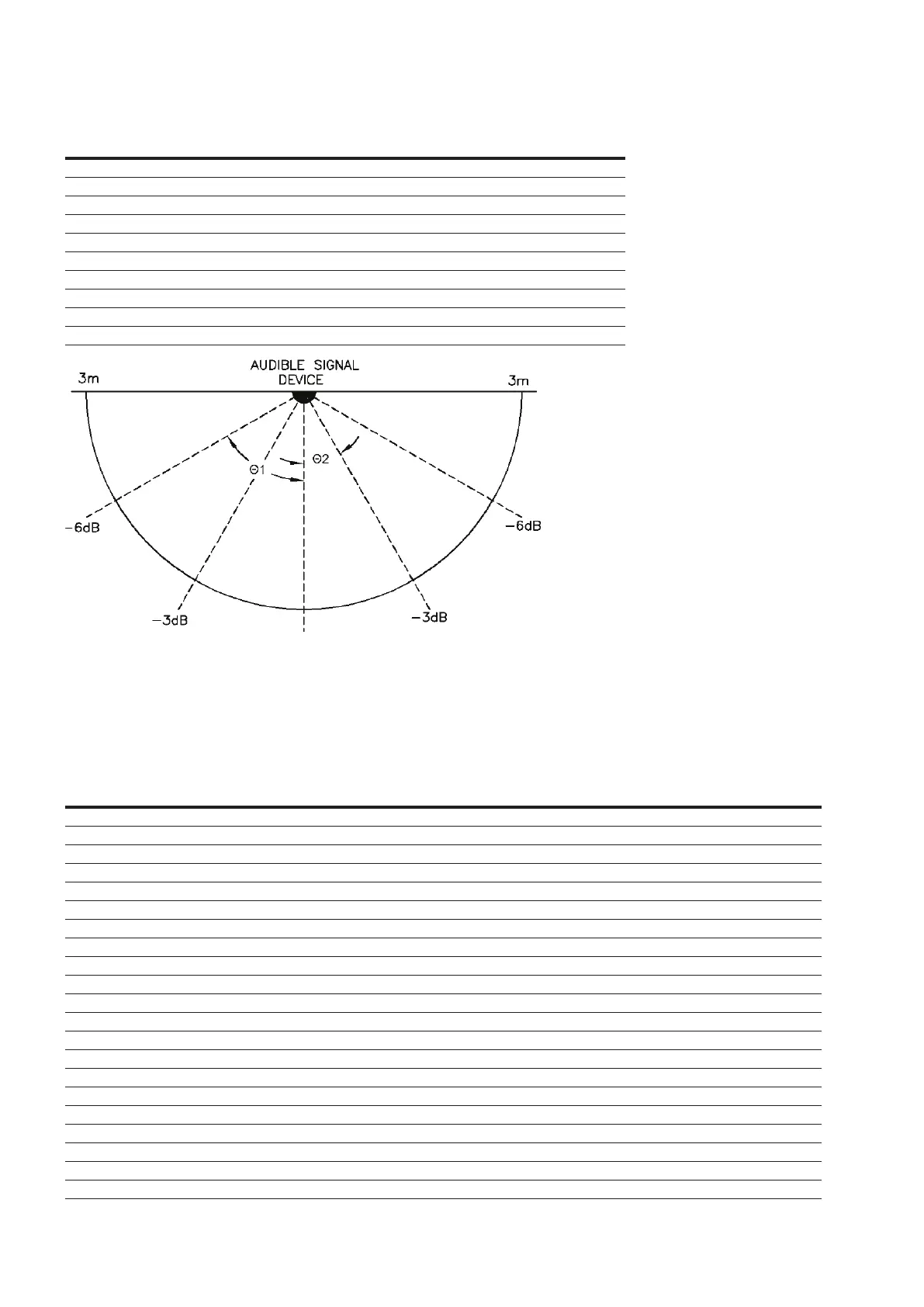

Angle OSPL (dBA) Angle OSPL (dBA)
Long Flare Horizontal Axis
On Axis 90° 96.31 On Axis 90° 96.31
100° 93.09 (-3dBA) 75° 93.26 (-3dBA)
105° 89.42 (-6dBA) 65° 89.79 (-6dBA)
180° 71.56 0° 79.58
Long Flare Vertical Axis
On Axis 90° 96.33 On Axis 90° 96.33
100° 93.89 (-3dBA) 75° 92.47 (-3dBA)
105° 93.89 (-3dBA) 65° 89.34 (-6dBA)
180° 70.62 0° 75.23
Stages:
For all versions, a 5-way DIP switch selects the stage
required for each stage. The settings for the standard
stages are shown in the table below:
TONE No. TONE FREQUENCY/DESCRIPTION SWITCH SETTING 12345 TONE DESCRIPTION Nominal SPL (dB(A) @ 1M)
1 Alt Stages 800/970 Hz at 1/4 sec 11111 112
2 Sweeping 800/970 Hz at 7 Hz 11110 Fast Sweep (LF) 111
3 Sweeping 800/970 Hz at 1 Hz 11101 Medium Sweep (LF) 113
4 Continuous at 2850 Hz 11100 111
5 Sweeping 2400-2850 Hz at 7 Hz 11011 Fast Sweep 112
6 Sweeping 2400-2850 Hz at 1 Hz 11010 113
7 Slow Whoop 11001 Slow Whoop 113
8 Sweep 1200-500 Hz at 1 Hz 11000 Din Stage 117
9 Alt Stages 2400/2850 Hz at 2 Hz 10111 111
10 Int Stage of 970 Hz at 1 Hz 10110 Back-up Alarm (LF) 112
11 Alt Stages 800/970 Hz at 7/8 Hz 10101 112
12 Int Stage at 2850 Hz at 1Hz 10100 Back-up Alarm (HF) 112
13 970 Hz at 1/4 sec on 1 sec off 10011 112
14 Continuous at 970 Hz 10010 112
15 554 Hz for 0.1S/440 Hz for 0.4S 10001 French Fire Sound 113
16 Int 660 Hz 150 mS on 150 mS off 10000 Swedish Fire Alarm 108
17 Int 660 Hz 1.8 sec on 1.8 sec off 01111 Swedish Fire Alarm 108
18 Int 660 Hz 6.5 sec on 13 sec off 01110 Swedish Fire Alarm 109
19 Continuous 660 Hz 01101 Swedish Fire Alarm 108
20 Alt 554/440 Hz at 1 Hz 01100 Swedish Fire Alarm 113
21 Int 660 Hz at 7/8 Hz 01011 Swedish Fire Alarm 108
Tone table 1:
