2.3 Installation in rack configuration
2. Installation

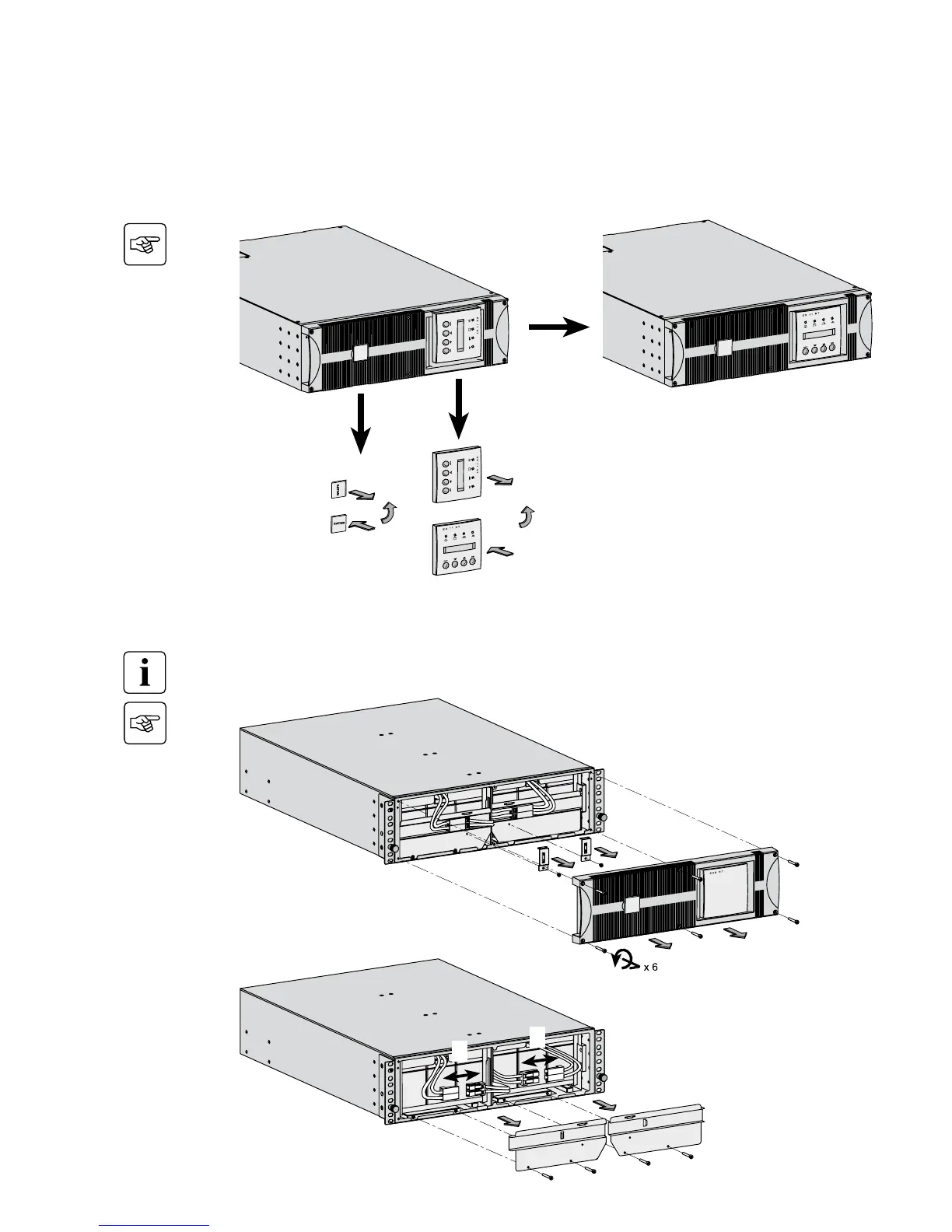

Adjustment of the orientation of the logo and control panels
1
2
3
4
5
6
Battery module rack mounting (optional rails required, part number: 68002)
We recommend to mount the battery module first, then mount the power module above the battery
The battery module is very heavy. To ease its rack integration, we strongly recommend to remove the
battery trays as explained below:
1
2
1
1
2
3
3
4
4
