18 OPERATION AND INSTALLATION INSTRUCTIONS MN280075EN July 2018
Form 6 microprocessor-based rack-mount recloser control
TB2
12
34
56
78
910
11 12
13 14
15 16
17 18
19
20
I(1-2)
I(3-4) I(5-6) V(1-2)
V(3-4) V(5-6) V1
I(SEF)
DISCONNECT
SWITCHES
(customer-supplied)
ote:N Terminal Block positions TB2-9 and
TB2-14 are factory-jumpered together.
Terminal Block positions TB2-10 and
TB2-11 are factory-jumpered together.
Terminal Block positions TB2-12 and
TB2-13 are factory-jumpered together.

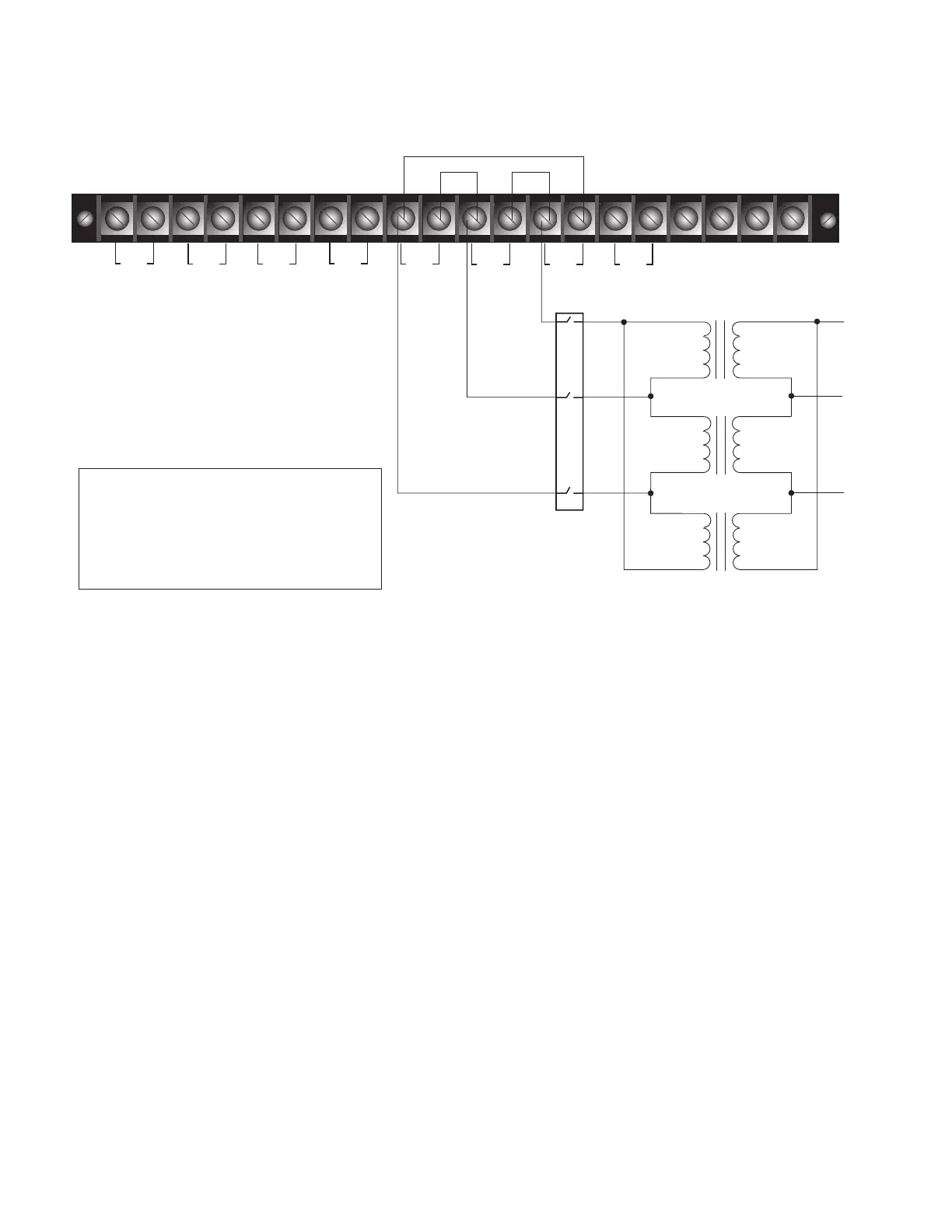

Figure12. Customer connections to TB2, 120 VAC Delta Connection
The AC voltage inputs for both source or load side accept a
voltage input of 120 VAC nominal. For single-phase source
side AC voltage inputs, connections to AØ, BØ, or CØ
areacceptable.
The following are not functional for single phase AC
voltage input:
Directional Protection
Single-Phase Voltage Protection
Three-Phase Metering
Sync Check
