Eaton GridAdvisor Series II Installation Instructions

CL-7 control in Siemens Corporation control
box
Table 3. Kit parts identification
Item Description Part Number Qty
1 CL-7 PRA wiring harness,
Siemens/Howard control
A64316200F 1
2 Faceplate, Right E0003X00G29 1
3 Left Hinge Bracket E0003X00G32 1
4 Siemens Retro Kit Magnet
Assembly
57A643282002 1
5 Hinge 0800071097Z 2
6 Machine Screw: 6-32x0.38 0800071090Z 6
7 Lock Washer: #6 SS 0800070916Z 4
8 Lock Nut: 6-32 0800071115Z 2
9 Ground Lead E0003X00G160 1
10 Adhesive cable-tie anchors 0800069825Z 2
11 Cable tie 0800011079Z 2
Required tools

Screwdriver (standard)

Screwdriver (Phillips head)

5/16-Inch nut driver or combination wrench

3/8-Inch nut driver or combination wrench
ote:N Verify all kit items are present before beginning
installation procedure.
Installation procedure
Follow these instructions to install the CL-7 PRA on a
voltage regulator manufactured by Siemens Corporation.
1. Remove existing control per manufacturer‘s
requirements. Retain the terminal block wing-nuts.
ote:N If the Siemens Corporation style wiring harness
(Figure 16), hinge and magnet assemblies
(Figure 18) have already been installed on the
control, proceed to Step 14.
ote:N The Siemens harness may be equipped with
two wires colored white and white/blue with
two-terminal connectors as shown in Figure 16. The
wires are for connection to the CL-7 control general
purpose inputs (GPIs). The wires can be used for
analog voltage reduction or other programmable
functionality. See document MN225003EN, CL-7
Voltage Regulator Control Installation, Operation, and
Maintenance Instructions for more information on
the GPIs.

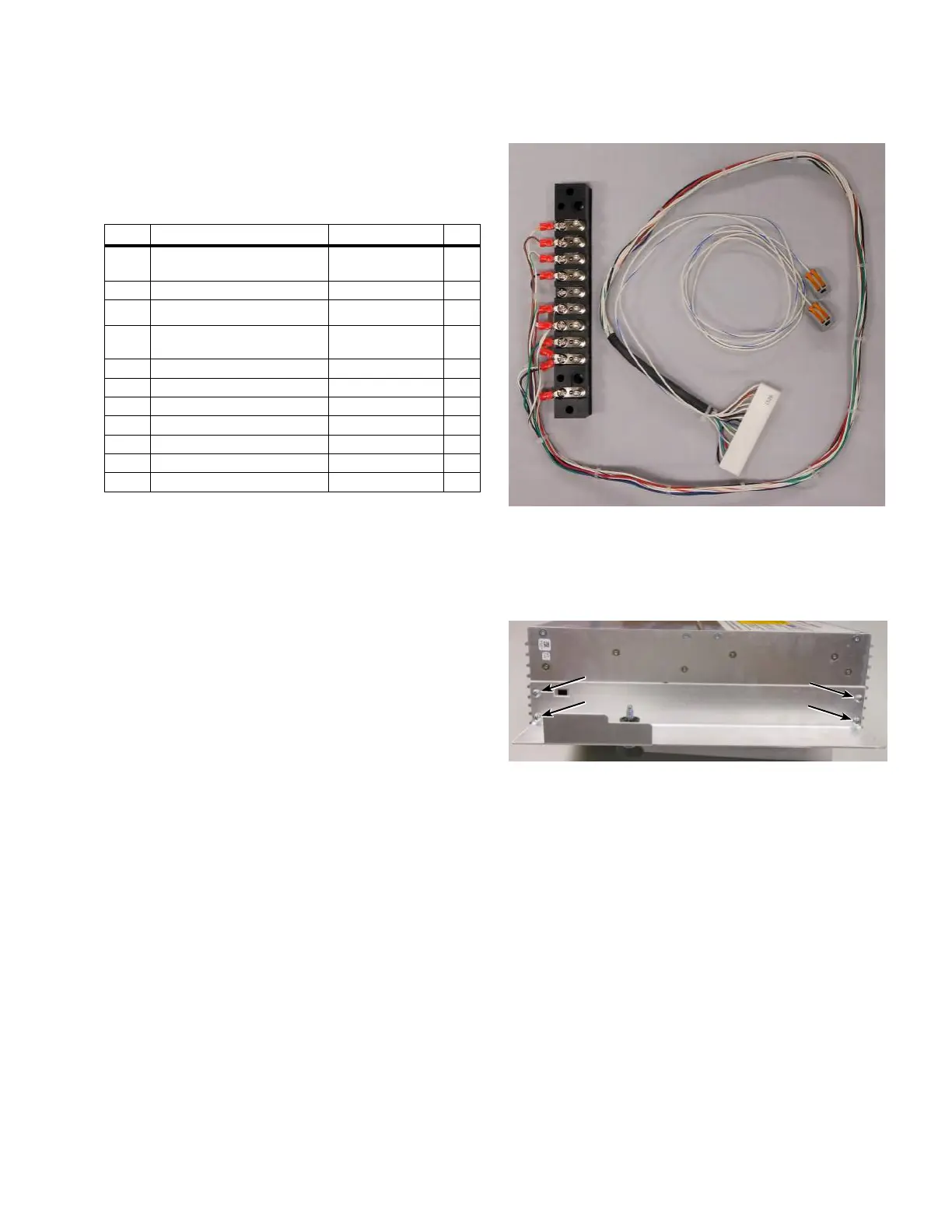

Figure 16. Siemens Corporation wiring harness for the
CL-7 control (Item 1)
2. Using a screwdriver, remove the four screws to
uninstall the existing latch bracket from the left side of
the CL-7 control; retain the screws. See Figure 17.
Figure 17. Removal of latch bracket from CL-7 control
3. Install the left hinge bracket (Item3) using the screws
retained from the last step. See Figure 18.
4. Install the hinges (Item5) using the provided screws
and washers (Items6 and 7). See Figure 18.
7
CL-7 Control Panel Retrofit
InstallatIon InstructIons MN225018EN April 2018
