FIELD INSTALLED UPM INSTALLATION PLAN AND UNPACKING
EATON 9395 Field Installed UPM Mechanical Installation Manual S 164201717 Rev 3 www.eaton.com/powerquality
3−3
1871.5
[73.7]
732
[28.8]
Dimensions are in millimeters [inches].

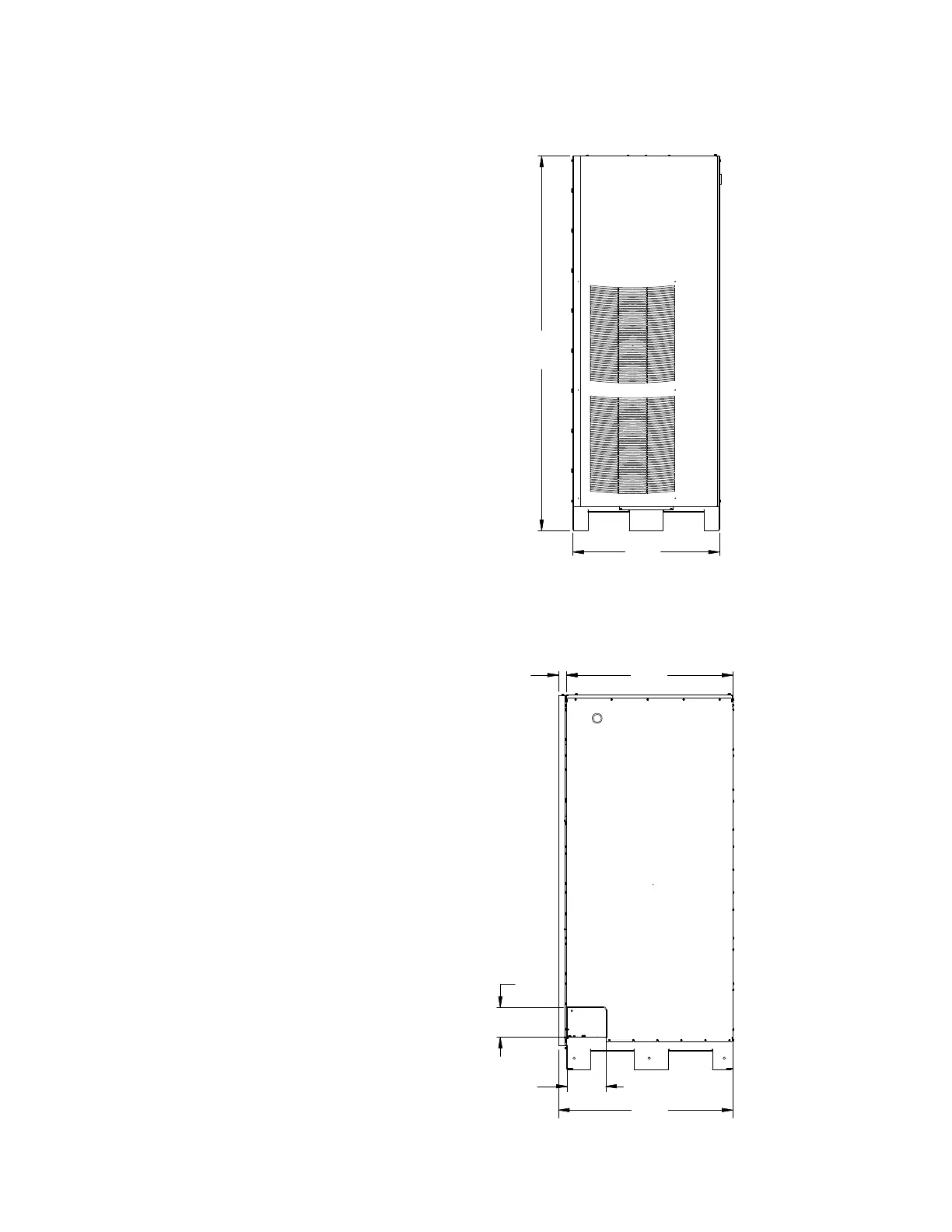

Figure 3-1. FI−UPM Cabinet Dimensions (Front View)
871
[34.3]
831.5
[32.7]
39.5
[1.6]
192.4
[7.6]
149.2
[5.9]
Dimensions are in millimeters [inches].
Figure 3-2. FI−UPM Cabinet Dimensions (Right Side View)
