TRSM0940 Service Procedures | Main Case Main Shaft Disassembly with Low Force Gearing
Main Case Main Shaft Disassembly with Low Force Gearing
Special Instructions
None
Special Tools
None

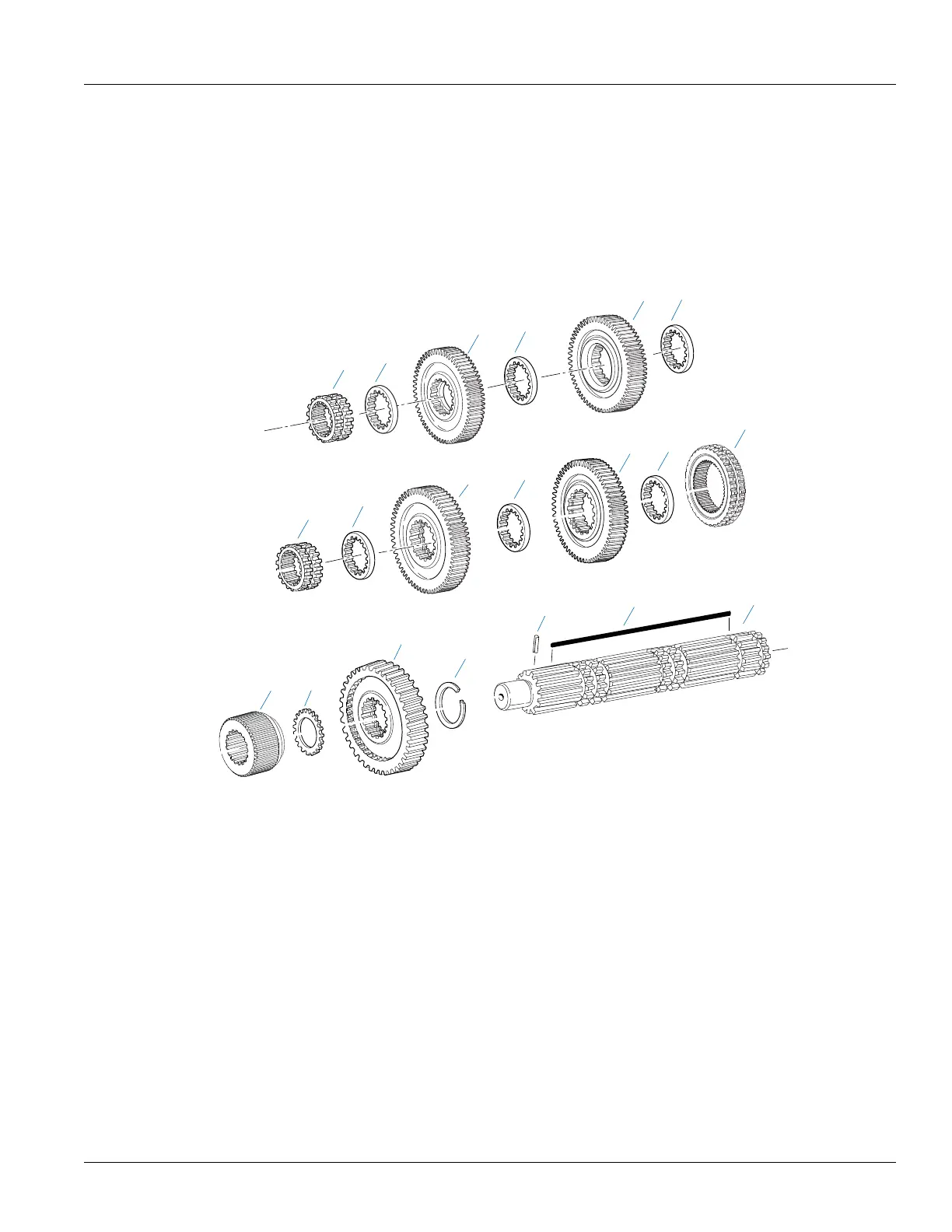

Component Identification
1. Main Shaft
2. Roll Pin
3. Main Shaft Key
4. Snap Ring
5. Reverse Gear
6. Spacer
7. Main Shaft Sleeve
8. 1st Gear
9. Washer
10. 2nd Gear
11. 3rd Gear
12. OD Gear
13. Sliding Clutch
14. Washer
15. Sliding Clutch
16. Sliding Clutch
15
14
12
9
11
16
10
8
9
13
1
3
2
4
5
6
7
9
9
9
