VCS/VMS Auxiliary Section Assembly and Installation | Service Procedures TRSM0940

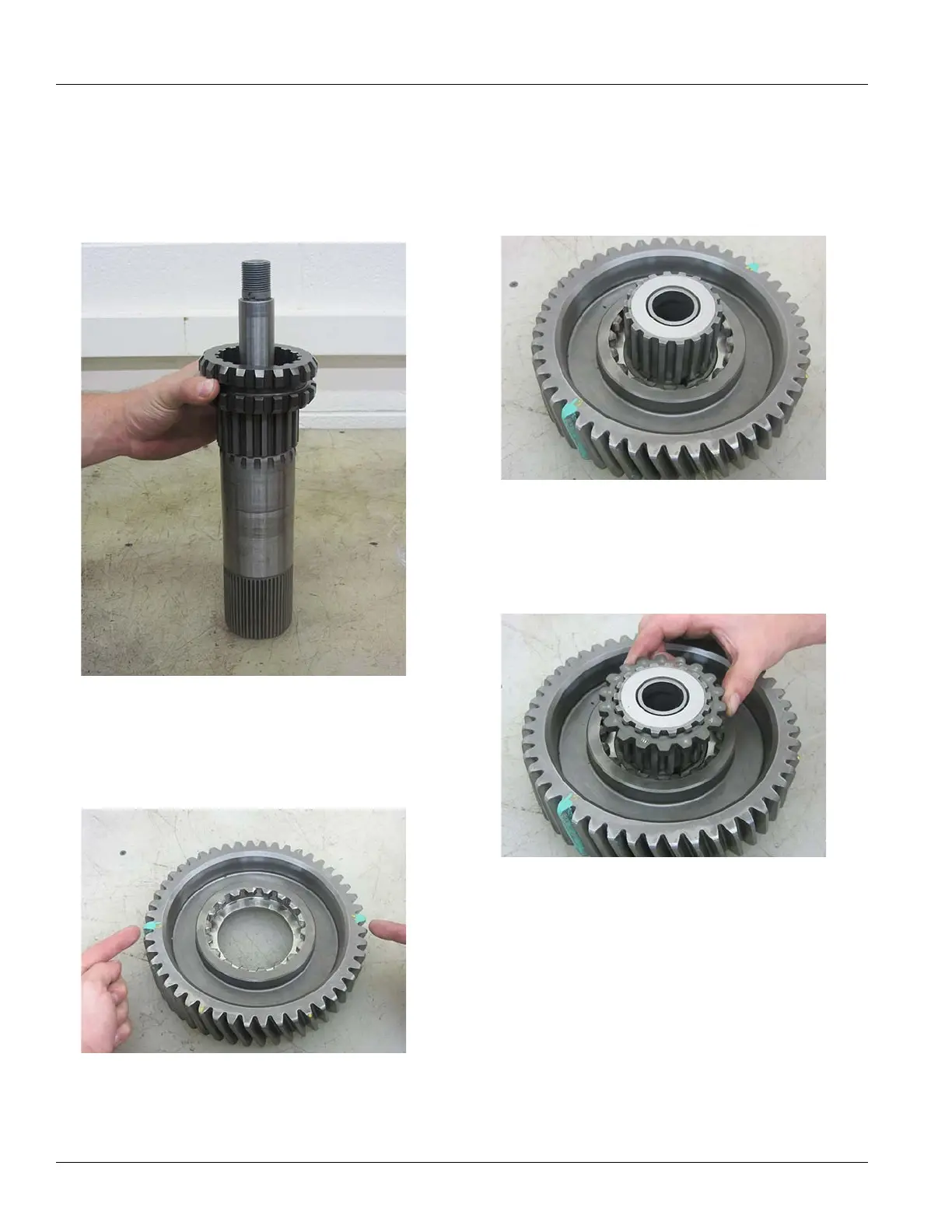

Auxiliary Section Assembly
1. Assemble the Deep Reduction Sliding clutch over the
splines on the Auxiliary Main Shaft. Install the clutch
from the front of the shaft.
2. Prepare the
Low Range Gear for timing. Mark any tooth
on the gear and repeat on the tooth directly opposite of
the first marked.
3. On
the Low Range Gear Coupler, install the bushings if
removed.
4. Install
the Low Range Gear (Reduction Gear) over the
Coupler.
5. With the splined washer
facing up, place the washer in
ID of the Low Range Gear. Rotate the washer so that it
locks in place and aligns the drive pin holes.
