Ebyte E870-E1 User Manual

Chengdu Ebyte Electronic Technology Co., Ltd. E870-E1_User Manual_EN
Copyright ©2012
–
2022,
Chengdu Ebyte Electronic Technology Co., Ltd.
4
Chapter 1 Product Description
1.1
Product introduction

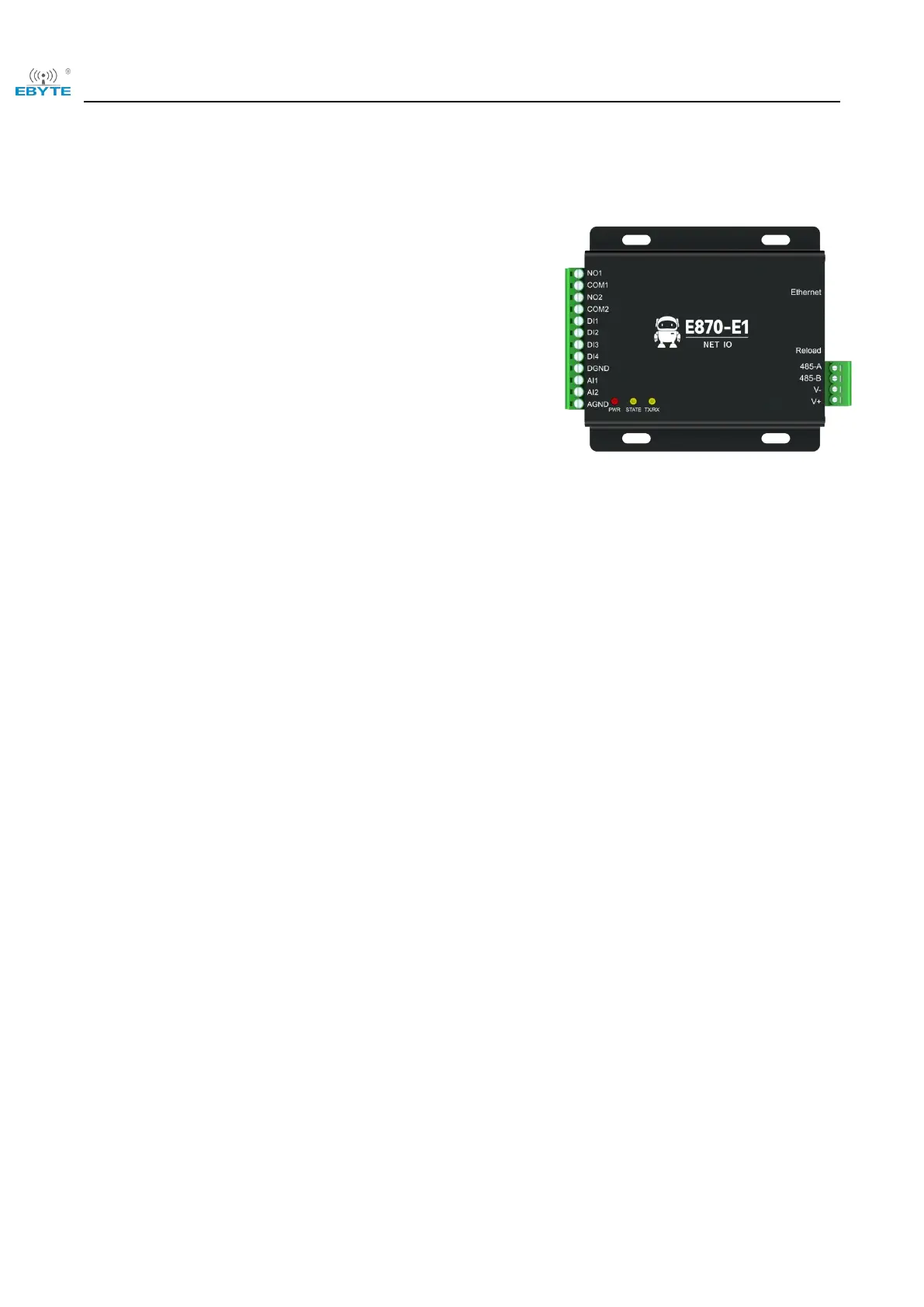

E870-E1 is an Ethernet cloud IO gateway developed based on the
communication protocol "Ebyte Cloud Device Communication
Protocol" developed by our company. It can send commands to the
device through the server to achieve control or acquisition functions,
and open 4-way switch value acquisition on the device. ,2-channel
analog (0-20/4-20mA) acquisition, 2-channel A-type relay output,
support multiple protocols (TCP, UDP, MQTT) access to the server,
support heartbeat packet, registration packet settings;
At the same time, the product supports a variety of configuration methods and supports web platform;
Supports acquisition and control of edge RTU nodes, and can also be used as an RTU device to parse Modbus
commands to acquire and control device IO;
Adopt industrial-grade design standards to ensure high reliability of the equipment.
1.2 Functional features

Support "Ebyte Cloud Device Communication Protocol" open protocol

Support remote management of Ebyte cloud platform

Support edge acquisition and control 20 Modbus RTU data points

Support change reporting, periodic reporting and other reporting methods

Supports adding edge computing formulas to upstream and downstream data

Support Alibaba Cloud IoT model JSON protocol reporting

Automatic 10/100M Ethernet interface

Support 4-way Socket independent connection to user-defined server

Support TCPC, UDPC, MQTT3.1.1 protocol

Support registration package and heartbeat package

Support various configuration methods such as Ebyte cloud platform, host computer, network, etc.

Support the host computer to upgrade the device through the network and serial port

2 analog inputs (0-20/4-20mA)

4-way switch input DI (dry contact)

2-way switch output DO (A-type relay)

Support as an RTU device to parse the host Modbus RTU command to collect and control the IO of the control
device

Industrial design supports -40~85℃ working environment
