FUEL SYSTEM
CS-600
28

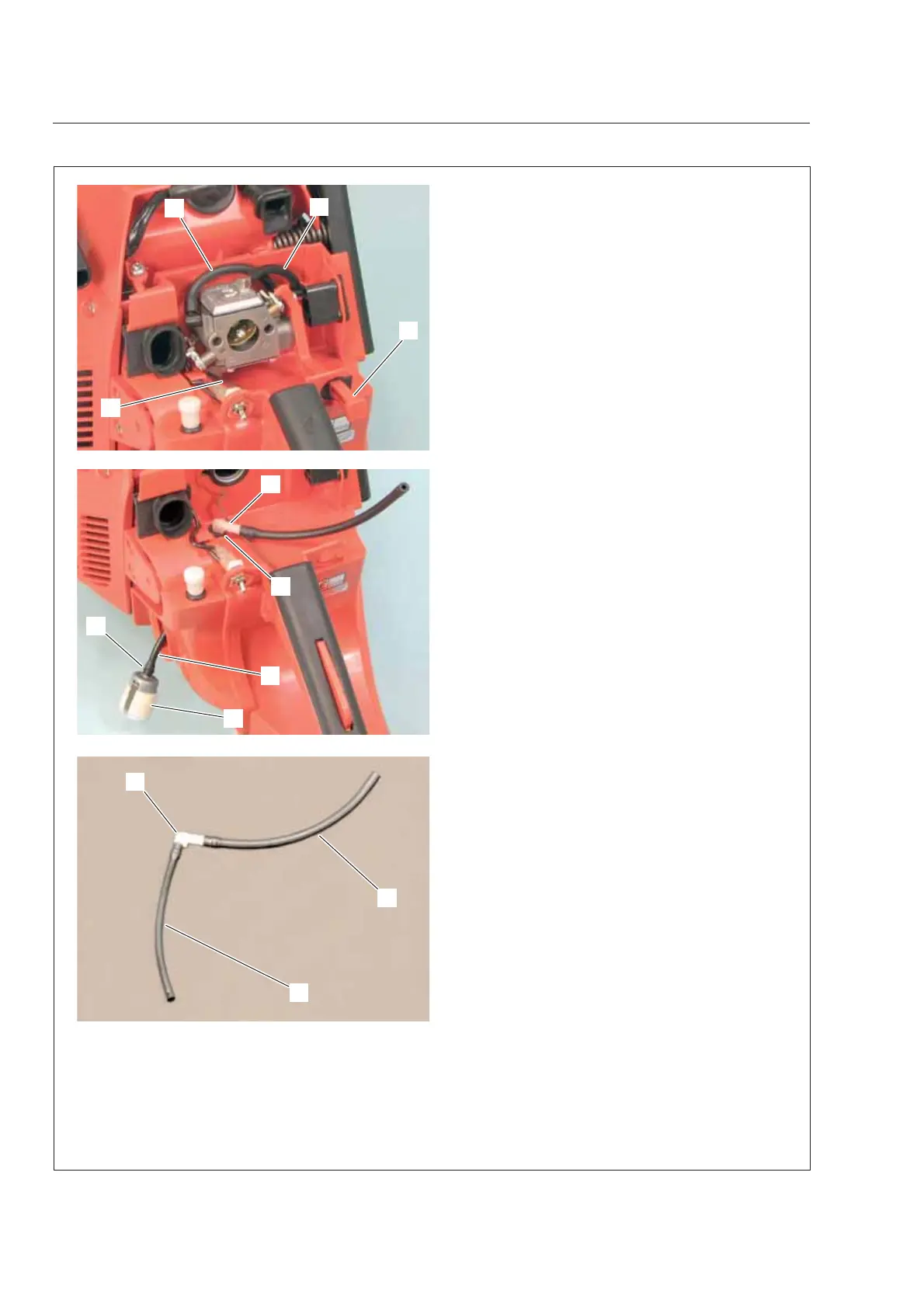

4-5 Replacing fuel line
1. Remove cleaner lid, air fi lter and cleaner case.
2. Disconnect fuel line (A) and pulse line (B) from
carburettor.
3. Remove carburettor by disconnecting throttle
rod (C) and choke knob (D).
4. Remove fuel cap and remove fuel strainer (E)
and clip (F) from fuel line (G).
5. Remove fuel line connector (H) from grommet (J)
together with fuel lines. Replace them if defective.
6. Assemble new lines (A: 135mm) and (G:
120mm) on fuel line connector (H). Pass fuel line
(G) through grommet. Push fuel connector into
grommet.
7. Pull out fuel line from fuel tank and install clip
and fuel strainer to fuel line.
8. Reinstall carburettor, cleaner case, air fi lter and
cleaner lid.
C
B
E
H
G
F
A
D
J
A
H
G
