16

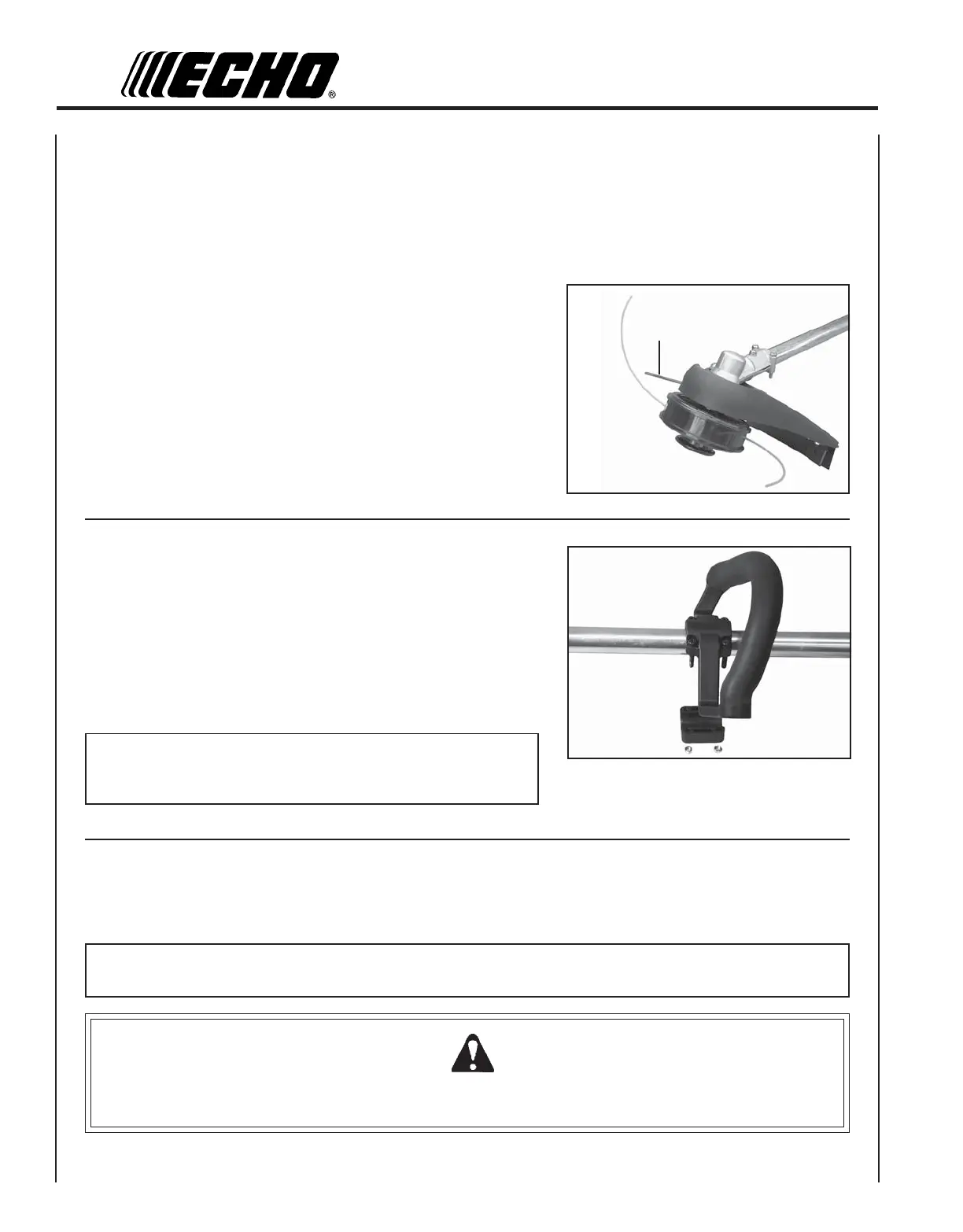

NYLON LINE HEAD INSTALLATION
(Use with Plastic Shield)
Tools Required: Head Locking Tool,
Parts Required: Nylon Line Head.
1. Be sure upper adaptor plate remains on PTO shaft.
2. Align locking hole in upper plate with notch in edge of gear
housing and insert head locking tool (B).
3. Thread line head onto shaft by turning it counter clockwise until
head is tight against upper plate.
FRONT HANDLE INSTALLATION
(SRM-231)
Tools Required: Screwdriver.
Parts Required: Front Handle Assembly
1. Position front handle for comfortable operation and secure screws.
NOTE
For SRM-231U Handle Assembly refer to "U-Handle Installation"
page 19, instructions 10, 12-14, 16, 17.
B
ACCESSORY INSTALLATION
Blade Conversion Kit P/N 99944200415, U-Handle / Blade Conversion Kit P/N 99944200521.
NOTE
Refer to Operation with Blades page 21 for correct Accessory / Blade equipment requirements.
WARNING DANGER
You must install a U-Handle/Blade Conversion Kit before operating this unit using metal blades, otherwise serious
injury may result.
