417101373_Ecodos-PCB.docx
- 14 -
Rev. 10-03.12

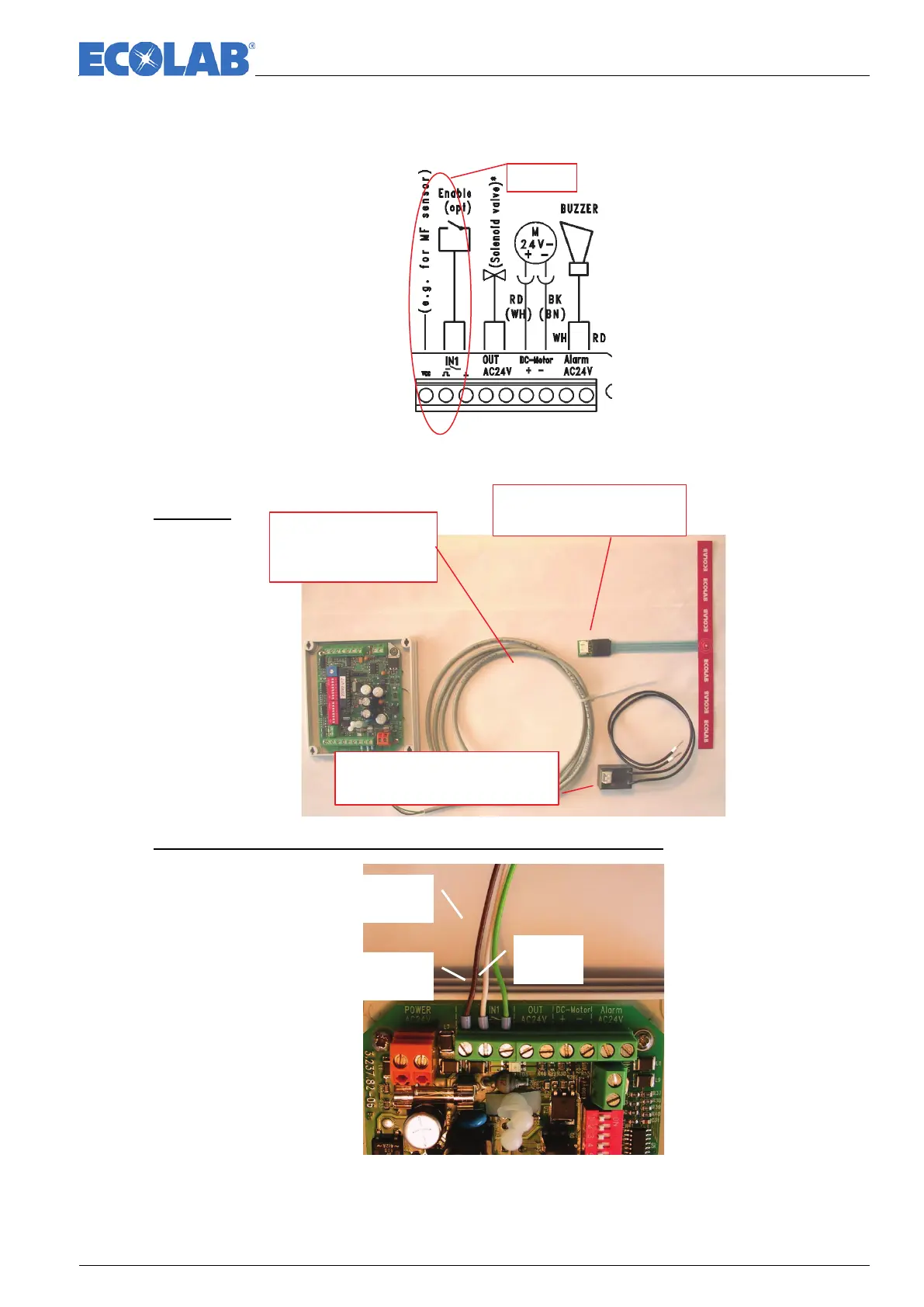

5.5 Mögliche Freigabemodule (Anschluss an IN1)
1. Mechanischer Kontakt (Kontakt geschlossen = System aktiviert)
Abb. 5.2
2. Elektrisches Freigabemodul (Bestell-Nr.: 273075) oder
Magnetfeldsensor (Bestell-Nr.: 273076)
Übersicht:
Abb. 5.3
Anschlusskabel für Freigabesignal (Enable-Cable) 273055 an PCB:
Abb. 5.4
GN
(Grün)
WH
(Weiß)
BN
(Braun)
Anschlusskabel für
Freigabesignal
(273055)
Magnetfeldsensor
(273075)
Elektr. Freigabemodul
(273076)
IN1
