ECS GeForce 6100PM-M2 User Manual

9
Installing the Motherboard
Checking Jumper Settings

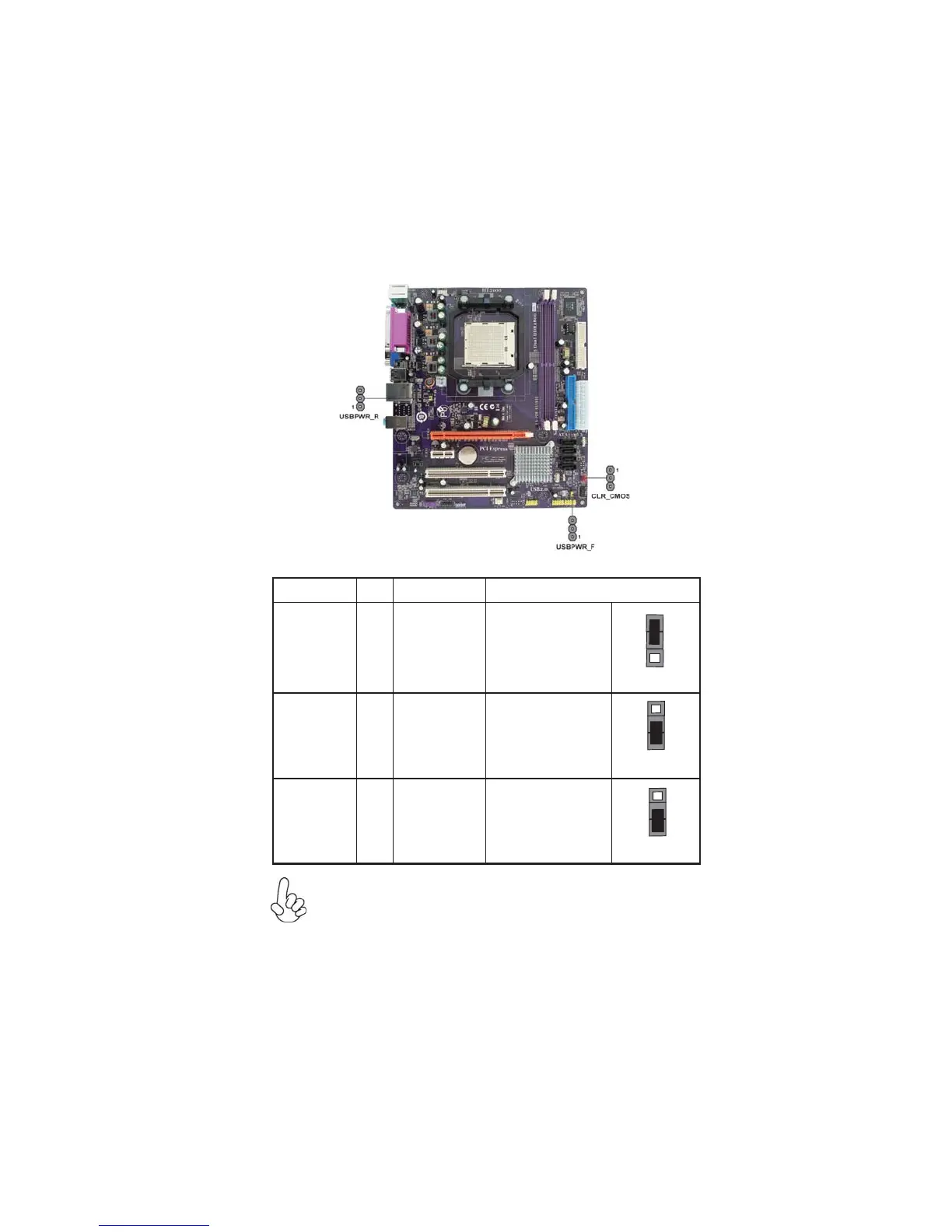

The following illustration shows the location of the motherboard jumpers. Pin 1 is
labeled.
Jumper Settings
To avoid the system instability after clearing CMOS, we recommend
users to enter the main BIOS setting page to “Load Optimized Defaults”
and then “Save & Exit Setup”.
1.
2.
Make sure the power supply provides enough VCC5_DUAL voltage
before selecting the VCC5_DUAL function.
3.
It is required that users place the USBPWR_F & USBPWR_R cap onto
2-3 pin rather than 1-2 pin as default if you want to wake up the
computer by USB/PS2 KB/Mouse.
Jumper Type Description Setting (default)
CLR_CMOS
3-pin
CLEAR CMOS
1-2: NORMAL
2-3: CLEAR
Before clearing the
CMOS, make sure to
turn the system off.
3-pin
USBPWR_R
1-2: VCC5
2-3: VCC5_DUAL
Rear USB/PS2
Power Select
Jumper
3-pin
USBPWR_F
1-2: VCC5
2-3: VCC5_DUAL
Front Panel
USB Power
Select Jumper
USBPWR_F
CLR_CMOS
1
1
USBPWR_R
1
