10
Installing the Motherboard
Connecting Case Components

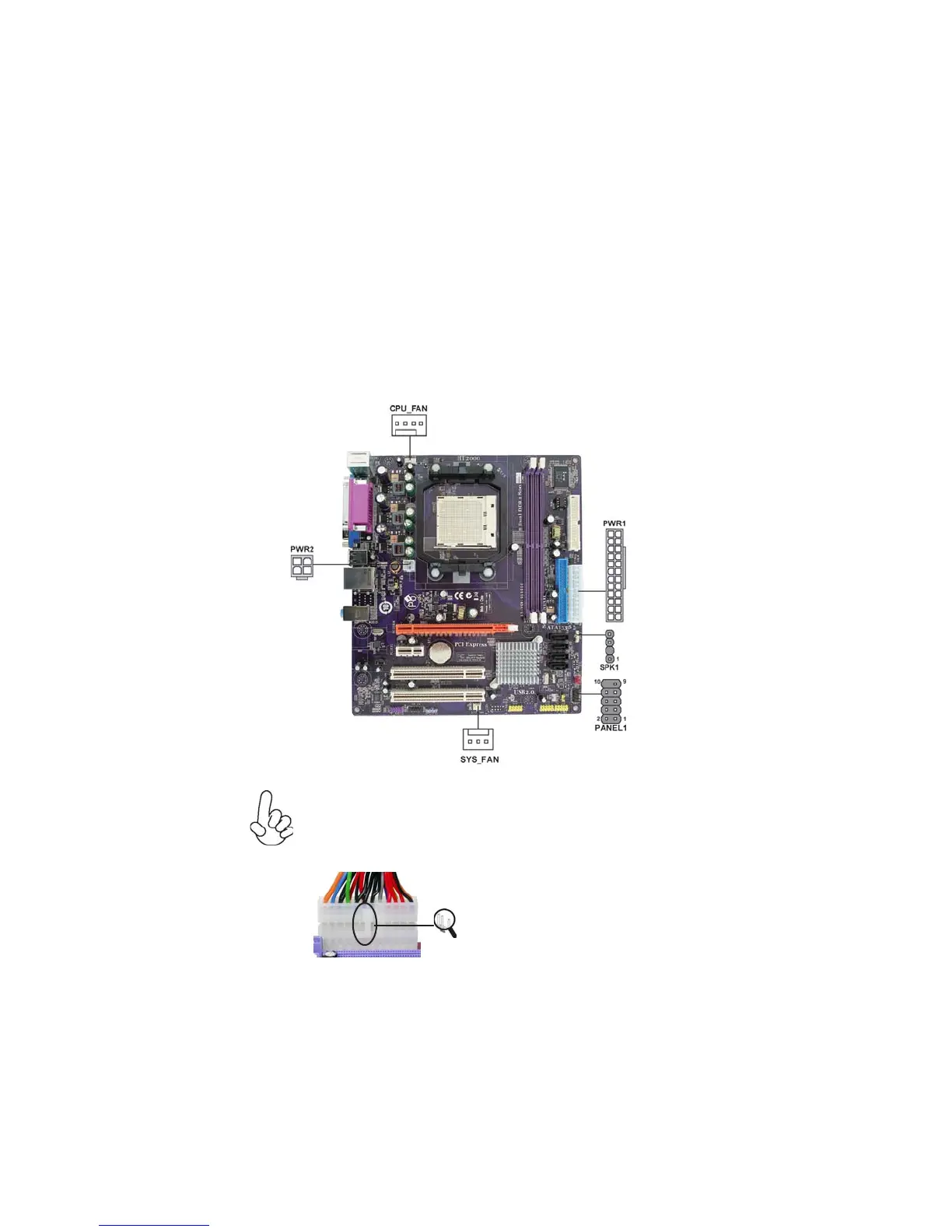

After you have installed the motherboard into a case, you can begin connecting the
motherboard components. Refer to the following:
1 Connect the CPU cooling fan cable to CPU_FAN.
2 Connect the system cooling fan connector to SYS_FAN.
3 Connect the standard power supply connector to PWR1.
4 Connect the auxiliary case power supply connector to PWR2.
5 Connect the case switches and indicator LEDs to the PANEL1.
6 Connec the case speaker cable to SPK1.
Users please note that the 24-pin power cable can be connected to the
PWR1 connector.
With ATX v2.x power supply, users please
note that when installing 24-pin power
cable, the latches of power cable and the
PWR1 match perfectly.
Connecting 24-pin power cable
24-pin power cable
