25
Installing the Motherboard
Connecting I/O Devices

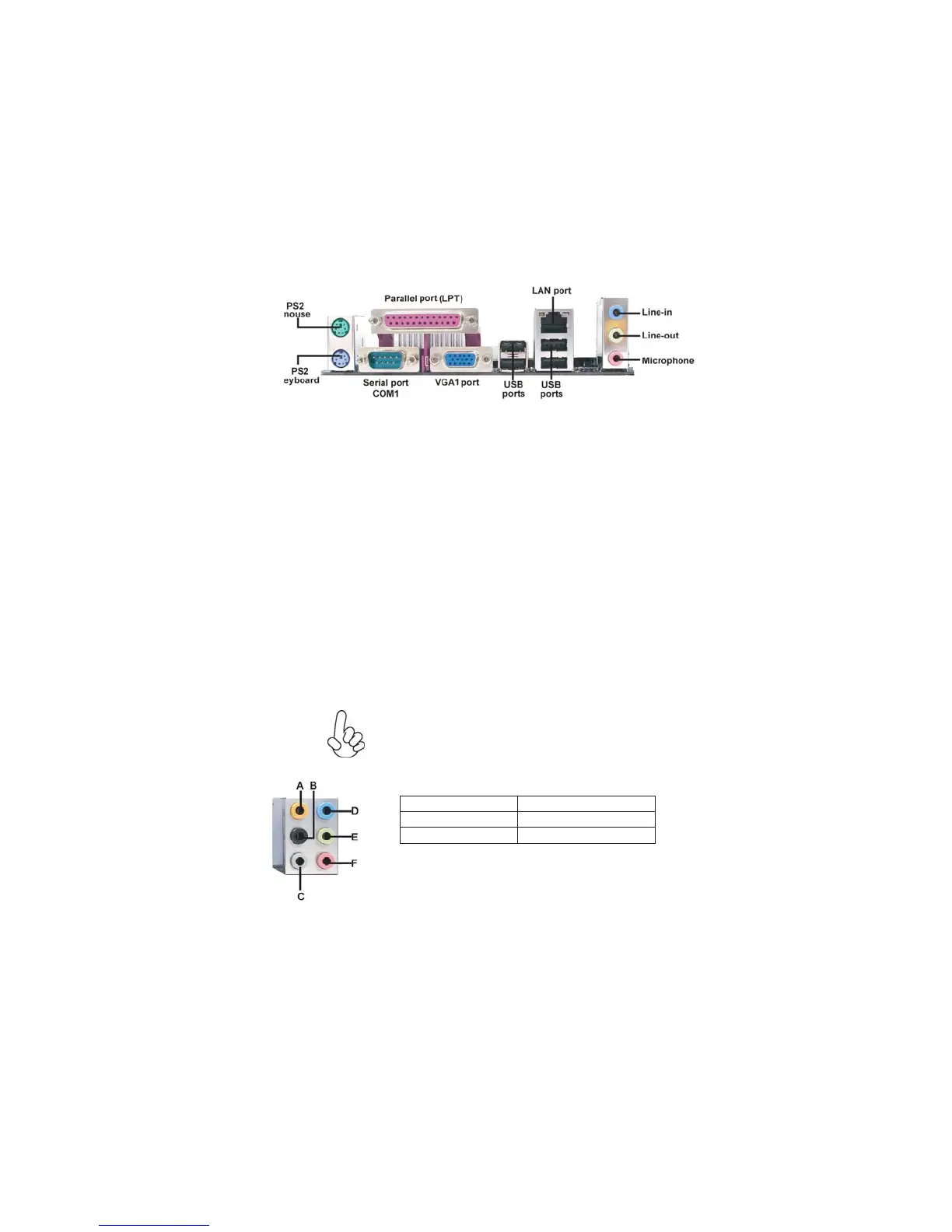

The backplane of the motherboard has the following I/O ports:
PS2 Mouse Use the upper PS/2 port to connect a PS/2 pointing device.
PS2 Keyboard Use the lower PS/2 port to connect a PS/2 keyboard.
Parallel Port
(LPT)
Serial Port Use the COM port to connect serial devices such as mice or
(COM1) fax/modems.
VGA1 Port Connect your monitor to the VGA port.
.
Audio Ports
(optional)
Use LPT to connect printers or other parallel communica-
tions devices.
LAN Port
Connect an RJ-45 jack to the LAN port to connect your
computer to the Network.
USB Ports Use the USB ports to connect USB devices.
This concludes Chapter 2. The next chapter covers the BIOS.
This motherboard may adopt 8-channel audio ports that
correspond to the A,B, C, and E port respectively. In addi-
tion, all of the 3 ports, B, C, and E provide users with both
right & left channels individually. Users please refer to the
following note for specific port function definition.
A: Center & Woofer D: Line-in
B: Back Surround E: Front Out
C: Side Surround F: Mic_in Rear
The above port definition can be changed to audio input or
audio output by changing the driver utility setting.
Use the three audio jacks to connect audio devices. The first
jack is for stereo line-in signal. The second jack is for stero
line-out signal. The third jack is for microphone.
