Setting Up eJIFFY
57
Keyboard Language Setup
Usage F
AQ
Language Control P
anel: Besides setting English as the default interface,
eJIFFY offers multi-language displays and keyboard settings for language-
switch. Open the language control panel to select a preferable language setting.

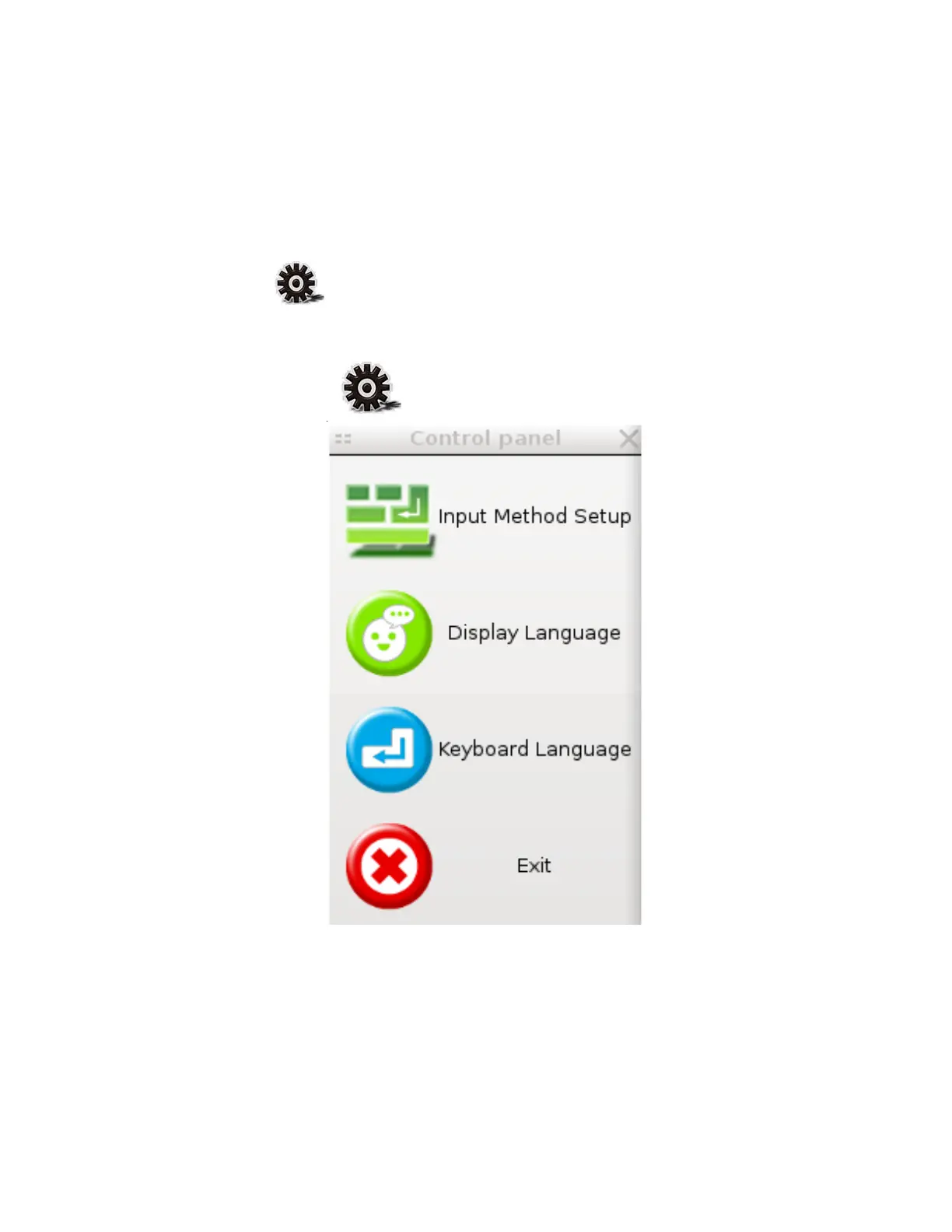

Step1. Click
to open the language control panel.
60
62
