22

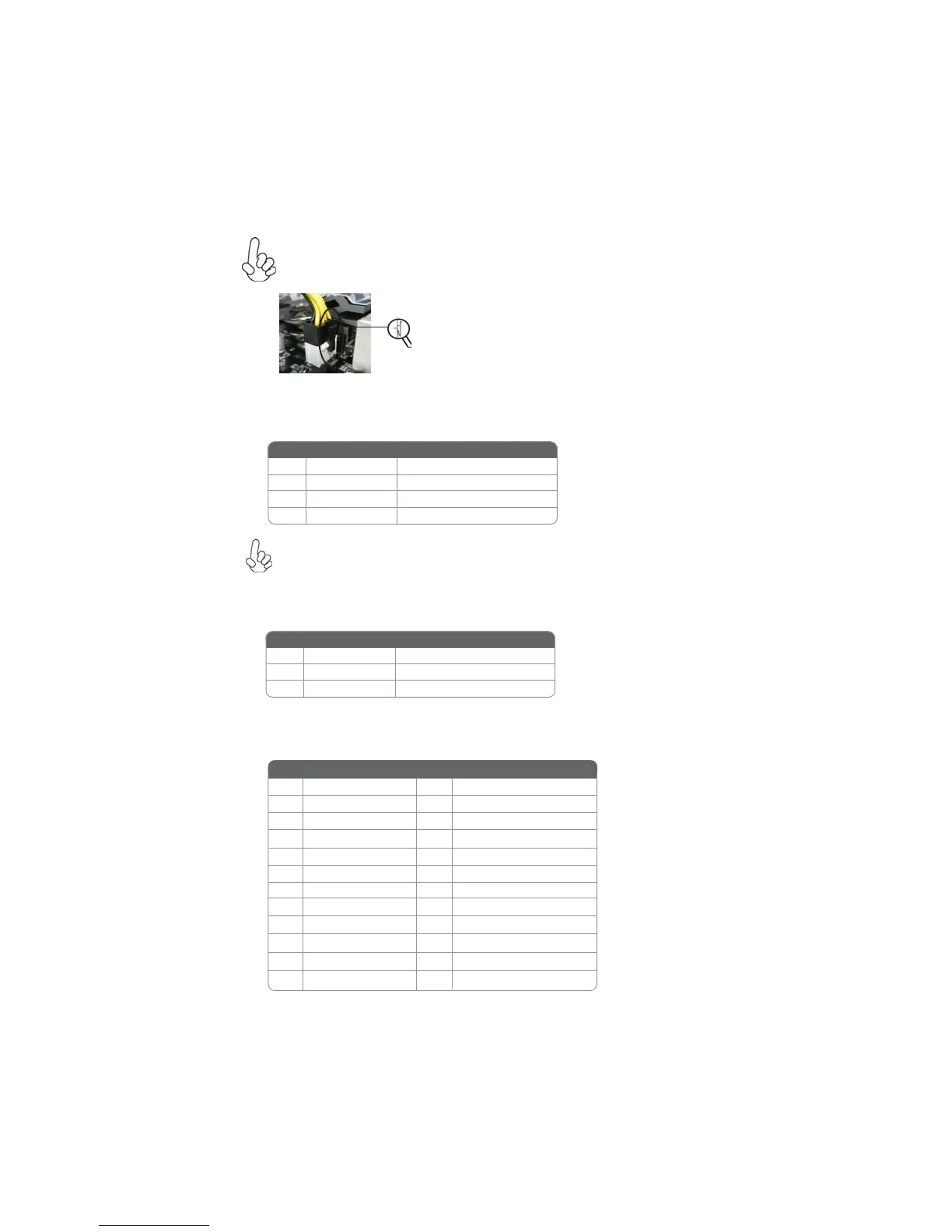

Installing the Motherboard
Users please note that the fan connector supports the CPU cooling fan of
1.1A ~ 2.2A (26.4W max) at +12V.
CPU_FAN: CPU cooling FAN Power Connector
Users please note that the 8-pin and 4-pin power cables can both be con-
nected to the ATX12V connector.
When installing 8-pin power cable, the latches
of power cable and the ATX12V connector
match perfectly.
2. Connecting 8-pin power cable
8-pin power cable
SYS_FAN: FAN Power Connectors
1 GND System Ground
3 Sense Sensor
4 PWM PWM
Pin Signal Name Function
2 +12V Power +12V
ATX_ POWER: ATX 24-pin Power Connector
Pin Signal Name Pin Signal Name
1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 Ground 15 Ground
4 +5V 16 PS_ON
5 Ground 17 Ground
6 +5V 18 Ground
7 Ground 19 Ground
8 PWRGD 20 -5V
9 +5VSB 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 Ground
1 GND System Ground
3 Sense Sensor
Pin Signal Name Function
2 +12V Power +12V
