71
Intel
®
Matrix Storage Manager RAID Configurations

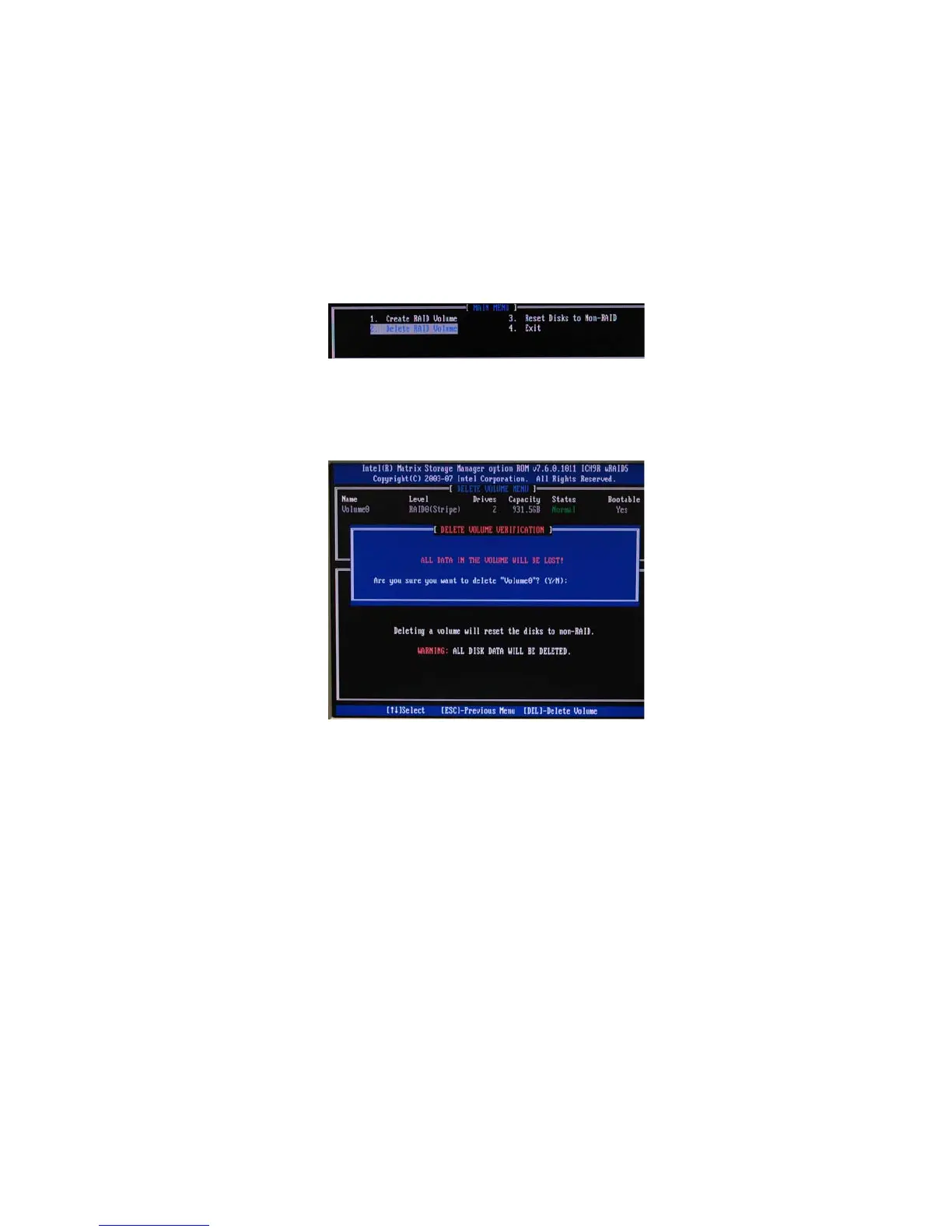

Deleting a RAID set
1
.
In the main Intel
®
Matrix Storage Manager RAID BIOS menu, highlight
Delete RAID V
olume
using the up/down arrow key then press <Enter>.
2
.
Use the space bar to select the RAID set you want to delete.
Press the <Del> key to delete the set.
3
.
A dialogue box appears to confirm the action. Press <Y> to confirm;
otherwise, press <N>.
Pressing <Y> deletes all the data in the HDDs.
74
76
Table of Contents
Default Chapter
2
About the Manual
2
Canadian Department of Communications
2
Declaration of Conformity
2
Table of Contents
3
Chapter 1 Introducing the Motherboard
5
Introduction
5
Feature
6
BIOS Firmware
7
Specifications
8
Motherboard Components
9
Chapter 2 Installing the Motherboard
11
Safety Precautions
11
Choosing a Computer Case
11
Installing the Motherboard in a Case
11
Checking Jumper Settings
12
Setting Jumpers
12
Checking Jumper Settings
13
Jumper Settings
13
Installing Hardware
14
Installing the Processor
14
Cpu Installation Procedure
15
Installing Memory Modules
16
Installation Procedure
17
Expansion Slots
18
Installing Add-On Cards
18
Connecting Optional Devices
20
Installing a SATA Hard Drive
23
Connecting I/O Devices
24
Connecting Case Components
25
Connecting 8-Pin Power Cable
26
Front Panel Header
28
Hard Drive Activity LED
28
Power/Sleep/Message Waiting LED
28
Chapter 3 Using BIOS
29
About the Setup Utility
29
The Standard Configuration
29
Entering the Setup Utilities
29
Resetting the Default CMOS Values
30
Using BIOS
30
BIOS Navigation Key
31
Main Menu
31
Advanced Menu
32
Pc Health Status
33
Acpi Configuration
36
Cpu Configuration
36
Sata Configuration
38
Usb Configuration
39
Super Io Configuration
40
Chipset Menu
41
M.I.B.III(MB Intelligent Bios III) Menu
44
Boot Menu
49
Security Menu
50
Save & Exit Menu
51
Updating the BIOS
53
Chapter 4 Using the Motherboard Software
55
About the Software DVD-ROM/CD-ROM
55
Auto-Installing under Windows Xp/Vista/7
55
Running Setup
56
Manual Installation
58
Utility Software Reference
58
Chapter 5 Setting up Ejiffy
59
Introduction
59
Installation and BIOS Setup
60
Entering Ejiffy
63
Features Icons
64
Usage FAQ
65
Chapter 6 Intel ® Matrix Storage Manager RAID Configurations
71
Before Creating a RAID Set
71
Entering Intel ® Matrix Storage Manager RAID BIOS Utility
72
Creating a RAID Set
73
Deleting a RAID Set
75
Resetting Disks to Non-RAID
76
Exiting Setup
76
Trouble Shooting
77
Start up Problems During Assembly
77
Chapter 7 Trouble Shooting
77
Start up Problems after Prolong Use
78
Maintenance and Care Tips
78
Basic Troubleshooting Flowchart
79
