ECS H87H3-M4 User Manual

81
H87H3-M4 USER MANUAL
Chapter 5
Chapter 5
Intel
®
Matrix Storage Manager RAID Configuration
The Intel
®
Matrix Storage Manager allows you to configure RAID 0, and 1 sets on the
external Serial ATA hard disk drives.
1. Install the external Serial ATA hard disk drive (HDD) on your system.
2. Set the Onboard SATA Mode item in the BIOS to RAID...
See section “Integrated Peripherals” for details.
Before creating a RAID set
1. One SATA HDD.
2. A write-enabled floppy disk.
3. Microsoft
®
Windows
®
OS installation disk (Windows 7/8).
4. Motherboard support CD with Intel
®
Matrix Storage Manager driver.
Complete the following steps before you create a RAID set:
Prepare the following items:
Determines how SATA
controller(s) operate.
Main Advanced Chipset M.I.B. III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit

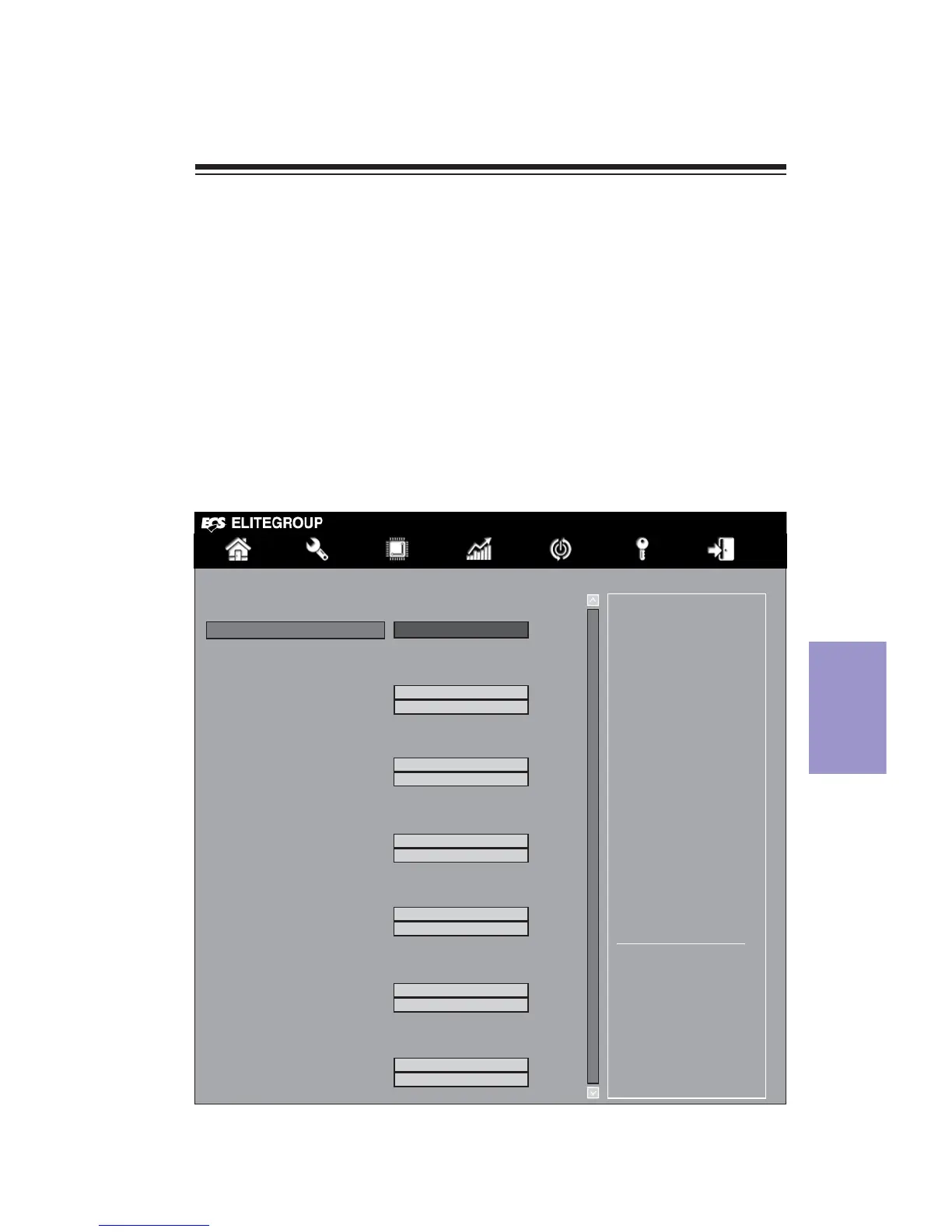

SATA Configuration
SATA Mode AHCI Mode
SATA Port1
Not Present
Spin Up Device Disabled
External SATA Disabled
SATA Port2
Not Present
Spin Up Device Disabled
External SATA Disabled
SATA Port3
Not Present
Spin Up Device Disabled
External SATA Disabled
SATA Port4
Not Present
Spin Up Device Disabled
External SATA Disabled
SATA Port5
Not Present
Spin Up Device Disabled
External SATA Disabled
SATA Port6
Not Present
Spin Up Device Disabled
External SATA Disabled
