85
H87H3-M4 USER
MANUAL
Chapter 5
Deleting a RAID set

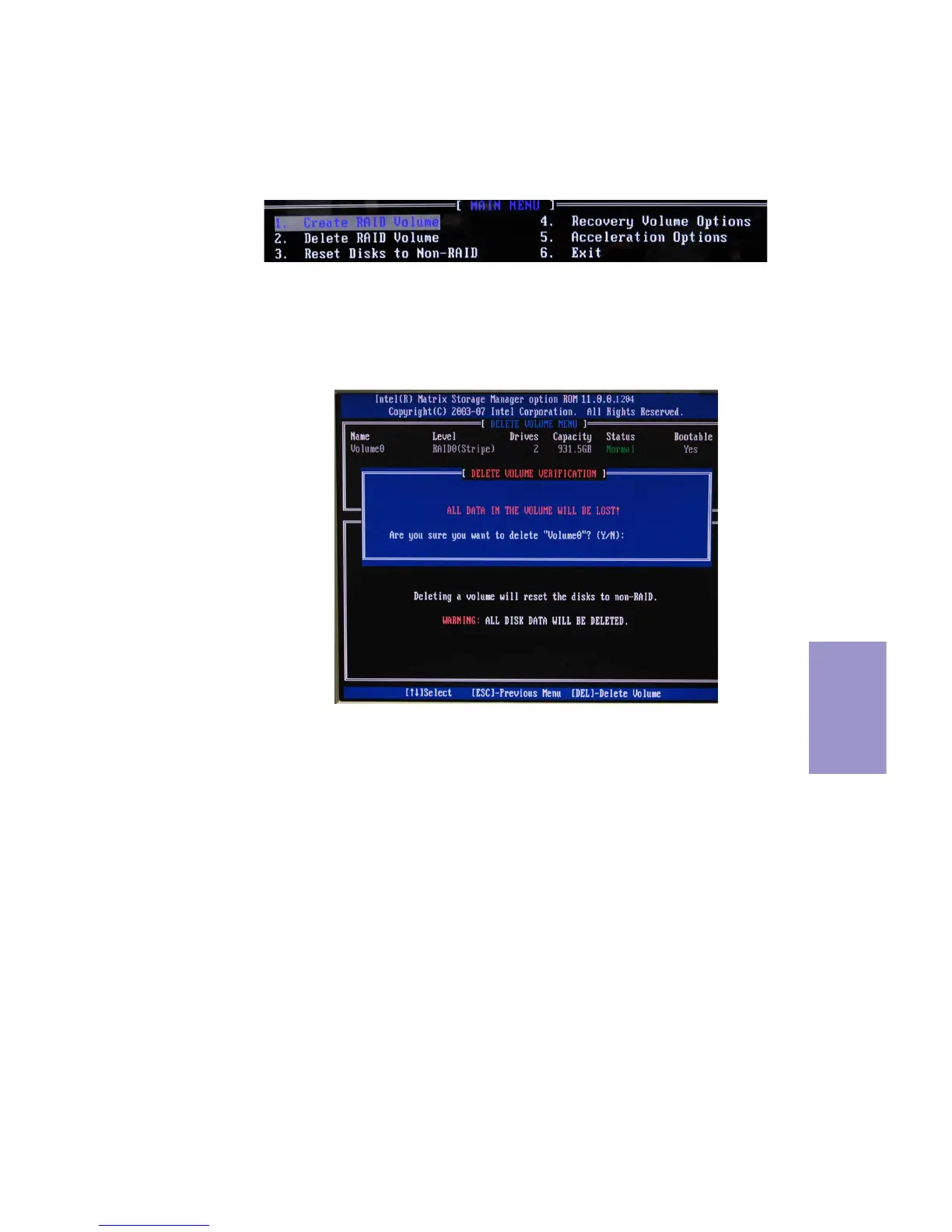

1
.
In the main Intel
®
Matrix Storage Manager RAID BIOS menu, highlight
De-
lete RAID Volume
using the up/down arrow key then press <Enter>.
2
.
Use the space bar to select the RAID set you want to delete.
Press the <Del> key to delete the set.
3
.
A dialogue box appears to confirm the action. Press <Y> to confirm; other-
wise, press <N>.
Pressing <Y> deletes all the data in the HDDs.
