ECS Q87H3-M6 User Manual

Chapter 2
9
Q87H3-M6 USER MANUAL
2-4. Installing Hardware
2-4-1. Installing the Processor
• This motherboard has an LGA1150 socket.
• When choosing a processor, consider the performance requirements of
the system. Performance is based on the processor design, the clock speed
and system bus frequency of the processor, and the quantity of internal
cache memory and external cache memory.
• You may be able to change the settings in the system Setup Utility. We
strongly recommend you do not over-clock processor or other compo-
nents to run faster than their rated speed.

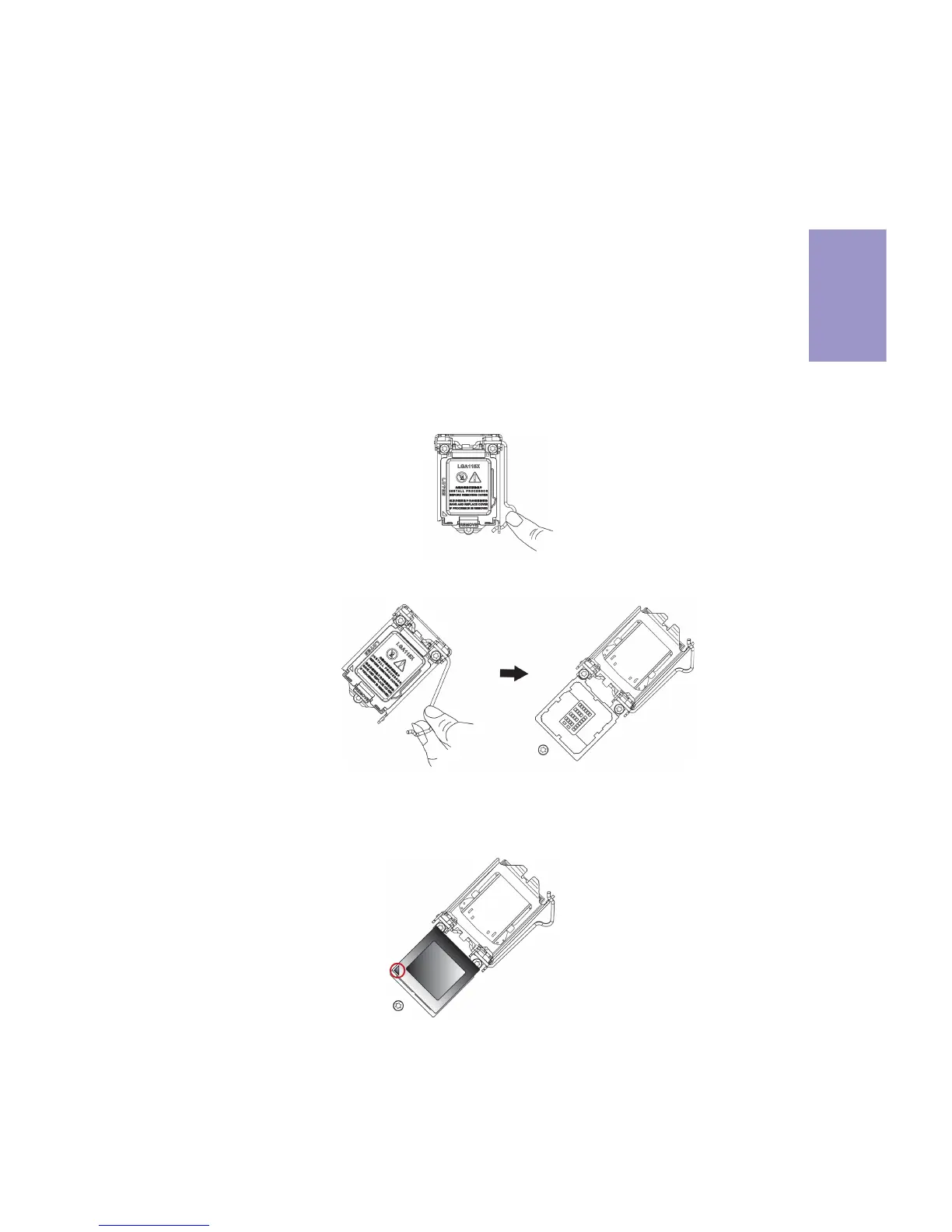

• The following illustration shows CPU installation components.
A. Press the hook of lever down with your thumb and pull it to the right
side to release it from retention tab.
B. Lift the tail of the load lever and rotate the load plate to fully open
position.
C. Grasp the edge of the package substrate. Make sure pin 1 indicator
is on your bottom-left side. Aim at the socket and place the package
carefully into the socket by purely vertical motion.

ECS Q87H3-M6 Specifications

General

Form Factor	Micro ATX
Socket Type	LGA 1150
Chipset	Intel Q87
Memory Slots	4
Max Memory	32 GB
Storage Interface	6 x SATA 6Gb/s
USB Ports	8 x USB 2.0, 4 x USB 3.0
LAN	Gigabit Ethernet
Audio	Realtek ALC887
