Document ID: OMM-00144-L VUTEk 3r & 5r Series Maintenance Guide 55
PPE Items: GLOVES NITRILE DISPOSABLE BOX LARGE
SAFETY GLASSES
Required Items: WIPES 9X9 CLEAN ROOM
ISOPROPYL ALCOHOL (IPA)
How-to Video:
Directions:
1. Open the printer hood and insert the retaining pins into the LH and RH pin sockets.
2. Dampen a lint-free wipe with IPA and fold in half.
3. Wipe down entire length of the linear encoder strip located on the top of the printer beam.
4. Remove the retaining pin and close printer hood.
5. Move carriage to center position to access portion of the encoder strip that was obstructed.
6. Open the printer hood and insert the retaining pins into the LH and RH pin sockets.
7. Complete the encoder strip wiping procedure.
8. Remove the retaining pins after completing tasks.
7.4 Wipe linear encoder strip.
CLICK TO PLAY

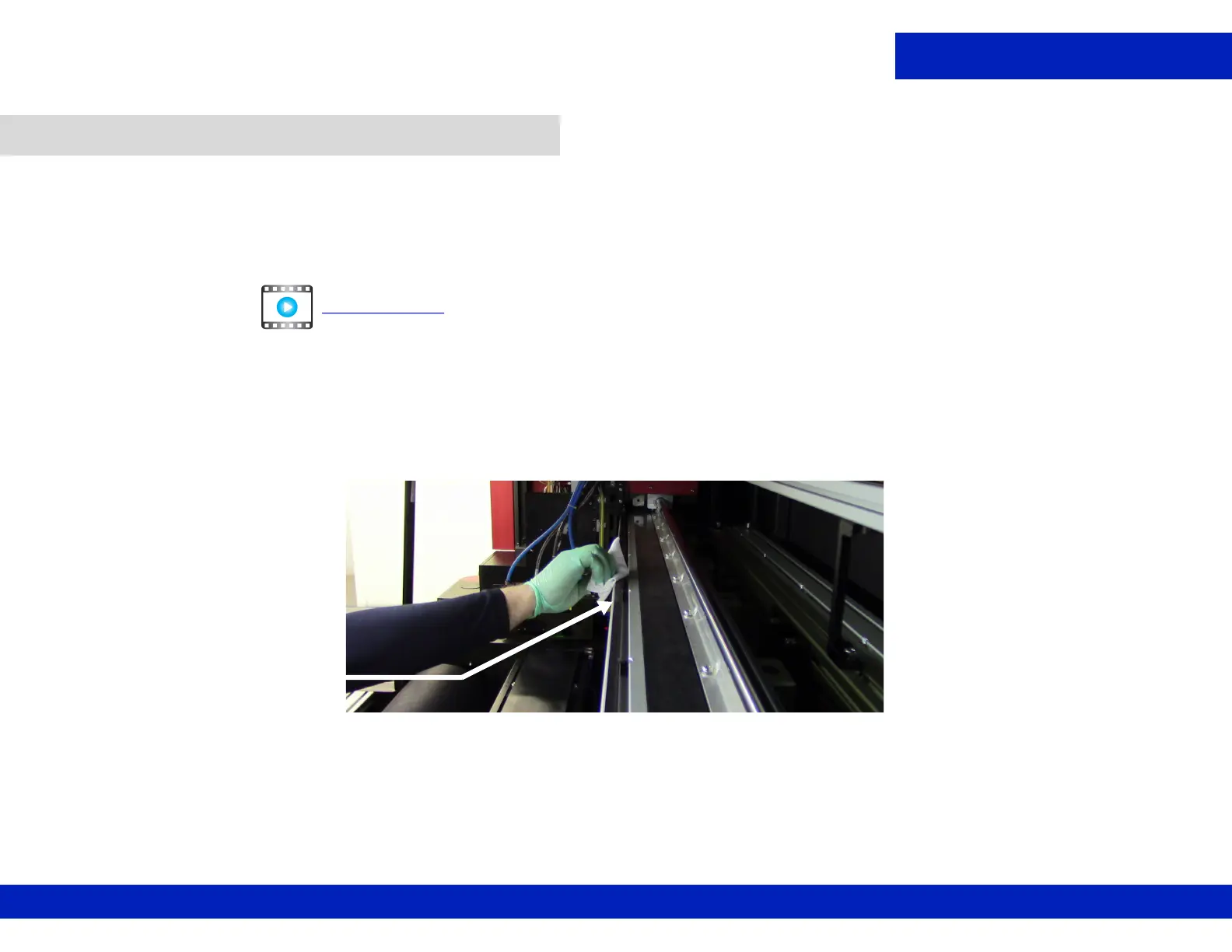

Figure 7-5 Wiping linear encoder strip
