Chapter 2 Adjusting Screens
●

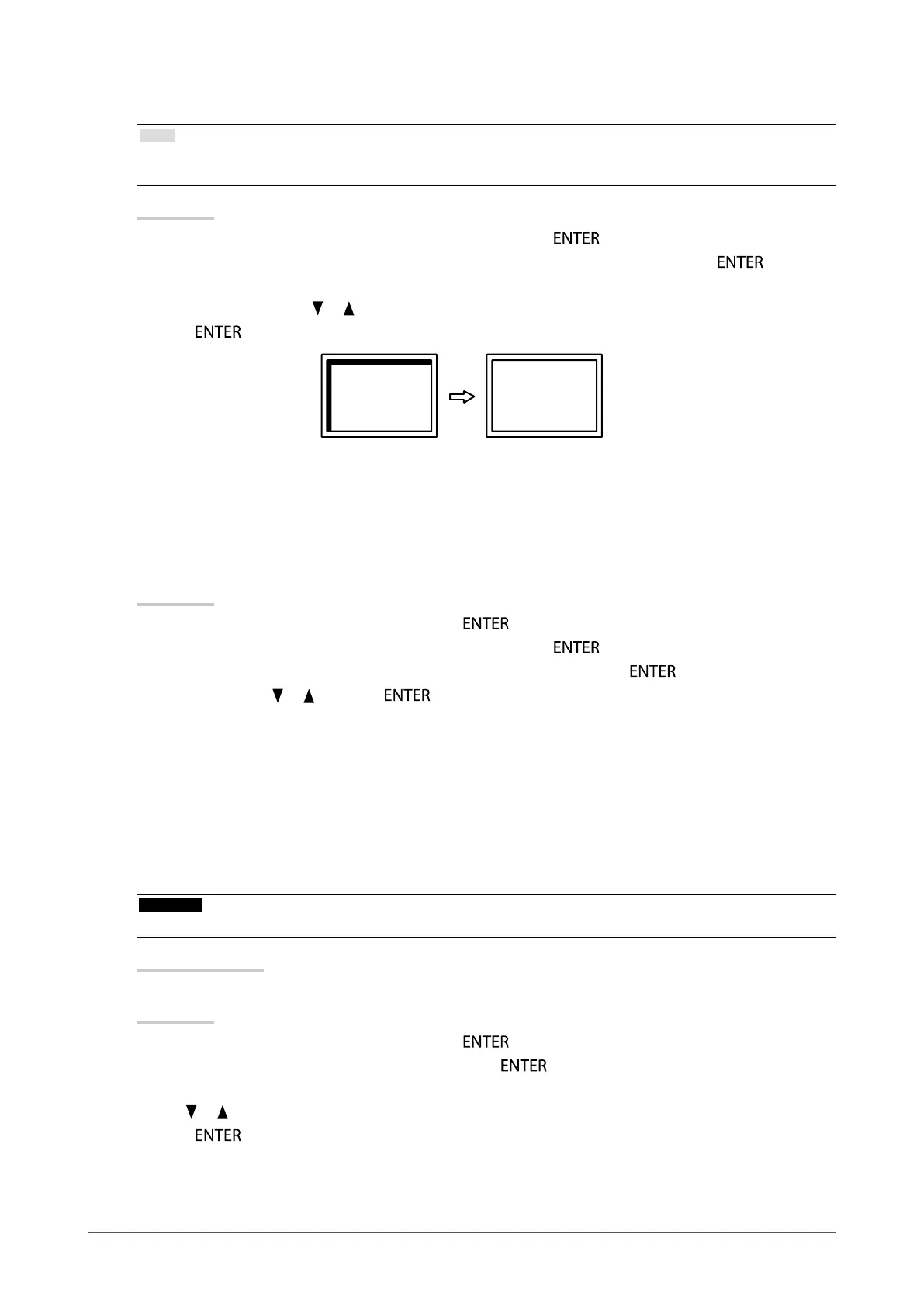

To correct the screen position
Note
• Since the number of pixels and the pixel positions are xed on the LCD monitor, only one position is provided to display
images correctly. The position adjustment is made to shift an image to the correct position.
Procedure
1. Choose “Analog Adjustment” in the “Screen” menu, and press
.
2. Choose “Hor.Position” or “Ver.Position” from the “Analog Adjustment” menu, and press
.
The “Hor. Position” or “Ver. Position” menu appears.
3. Adjust the position with or .
4. Press
to exit.
3.
Adjusting color gradation.
●
To adjust color gradation automatically
Every color gradation (0 to 255) can be displayed by adjusting the signal output level.
Procedure
1. Choose “Screen” in the Setting menu, and press
.
2. Choose “Analog Adjustment” in the “Screen” menu, and press
.
3. Choose “Auto Range Adjust” in the “Analog Adjustment” menu, and press
.
4. Select “Yes” with
or , and press .
The output range is set automatically.
4.
Modify blurred characters or lines.
●
To modify blurred characters / lines
When an image is displayed with a resolution other than recommended, the characters or lines of the
displayed image may blur.
Attention
• Smoothing setting may not be required depending on the display resolution. (You cannot choose the smoothing icon.)
Adjustable range
1 to 5
Procedure
1. Choose “Screen” in the Setting menu, and press
.
2. Choose “Smoothing” in the “Screen” menu, and press
.
The “Smoothing” menu appears.
3. Use or for adjustment.
4. Press
to exit.
