Eizo FlexScan EV2456-WT User Manual

33
Chapter 6 Reference
●
Attaching the Optional Arm (or Optional Stand)
1. Lay the LCD monitor on a soft cloth spread over a stable and at surface with the panel surface
facing down.
2. Remove the stand.

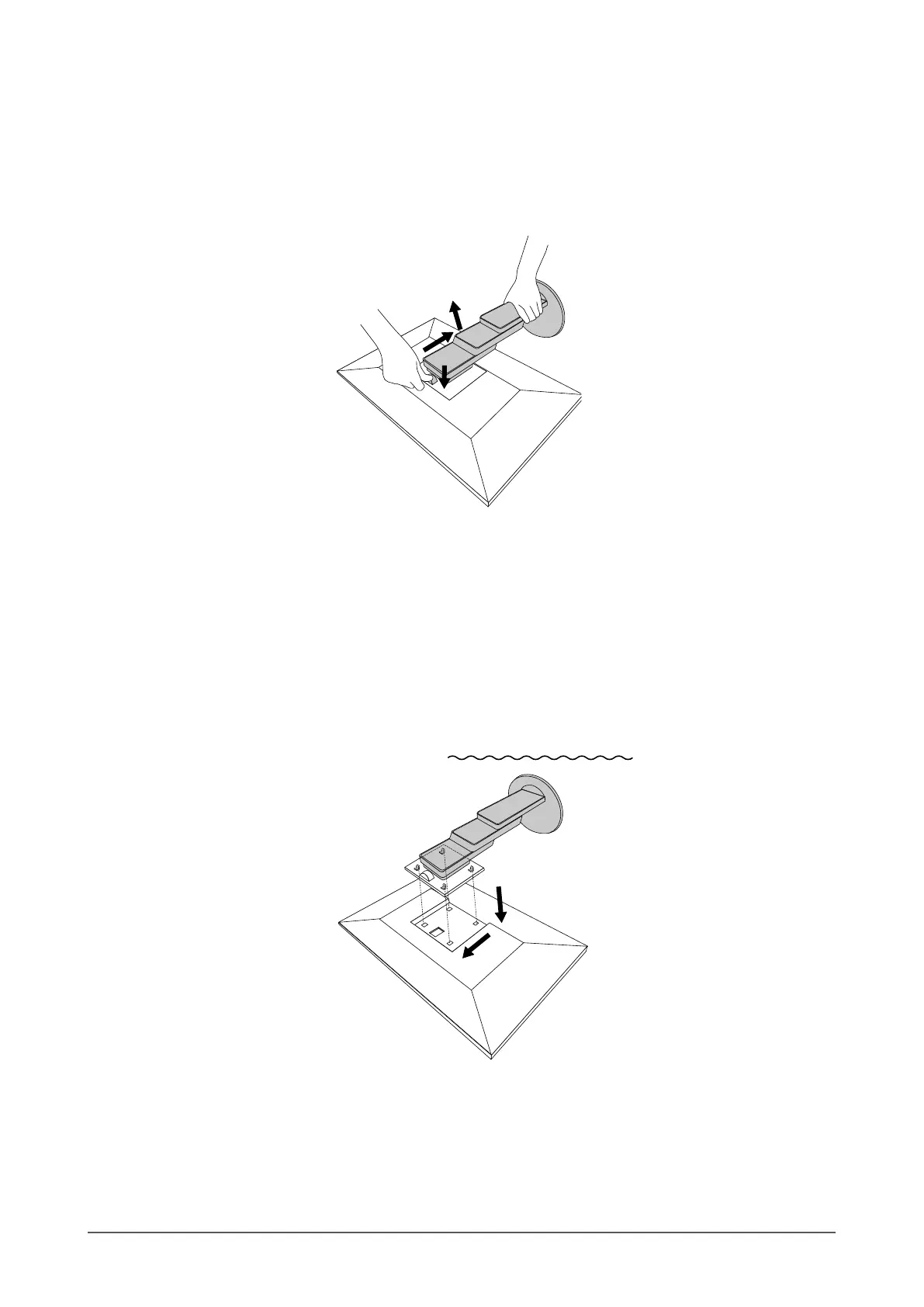

As shown in the gure, while holding down the lock button (1), slide the stand toward the stand base until it
touches the stand base (2). Then, lift the stand up (3).
(3)
(1)
(2)
3. Attach the arm or stand to the monitor.
Use the VESA mounting screws supplied with this product when attaching the arm or stand.
●
Attaching the original stand
1. Remove the xing screws on the optional arm (or optional stand), and detach the optional arm (or
optional stand).
2. To prevent damaging the panel surface, lay the monitor with its panel surface facing down on a
soft cloth spread on a stable surface.
3. Attach the original stand.
As shown below, insert the four tabs on the stand into the square holes on the back panel (1) and slide the
stand towards the upper portion of the monitor until it makes a clicking sound (2).
(1)
(2)
Click
!
