02/2011 - Art. Nr. 4200 1027 9501B12

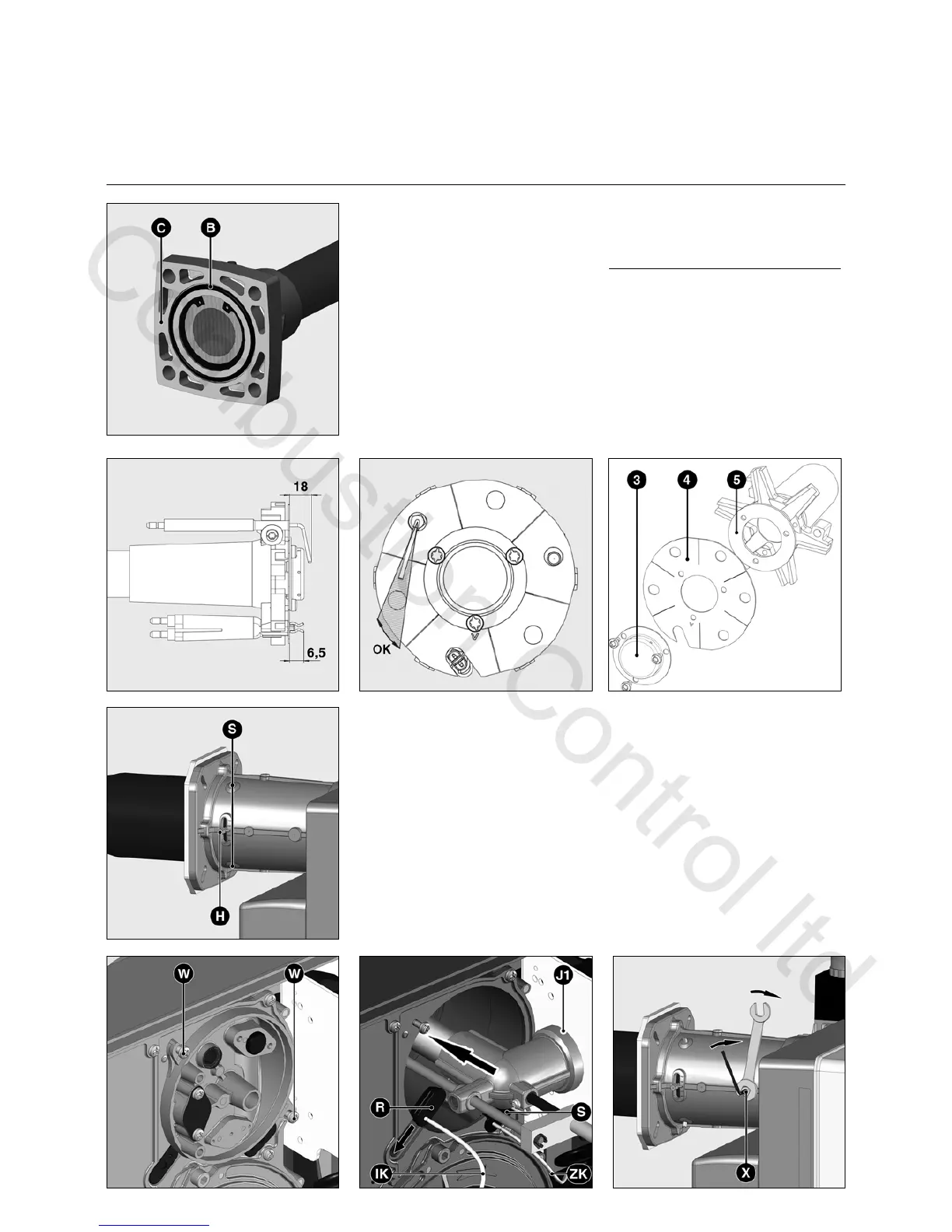

Assembly
Gas manifold
Check/adjust the burner head
Checking the burner head
• Check the adjustment settings of the
ionisation probe and of the ignition
electrode as per the diagrams.
Setting to propane gas operation
• Remove the shutter 3 and the
turbulator 4.
• Fit the spacer 5 (supplied with the
burner body).
• Fit the turbulator 4 and the shutter 3.
Gas train assembly
• Check the correct position of the O-
ring B in the gas connecting flange C.
• Secure the gas train on the burner
head so that the gas train coils are in
the upper vertical position.
• Pay attention to the direction of
circulation.
• Connect the power cable to the gas
train.
Check the radial position of the flame
tube
After untightening the three mounting
screws S, it is possible to change the
position of the flame tube using the lever
H. Nitrogen oxide emissions may be
affected by the radial position of the
flame tube.
• Set first on scale value : 1.
Fitting the combustion components
• Check that the O-Ring J1 is in the
correct position in the gas elbow.
• Insert the combustion components
into the head, tighten the mounting
screw X using an Allen key, then
tighten the lock nut using an open-
ended spanner.
• Thread the ionisation cable IK and the
ignition cables ZK into the grommets
R and S.
• Remove the cover.
