- ITZAA 14/31 599 38 97-89
5.3.1 Temperature sensor
1 NTC sensor detects the temperature of the cooler:
• cooler air temperature sensor A (located on the cooler cell)
The sensor A has the foamed cable inside the cabinet, therefore it is not replaceable (for further information
please see Service Bulletin 599374122).

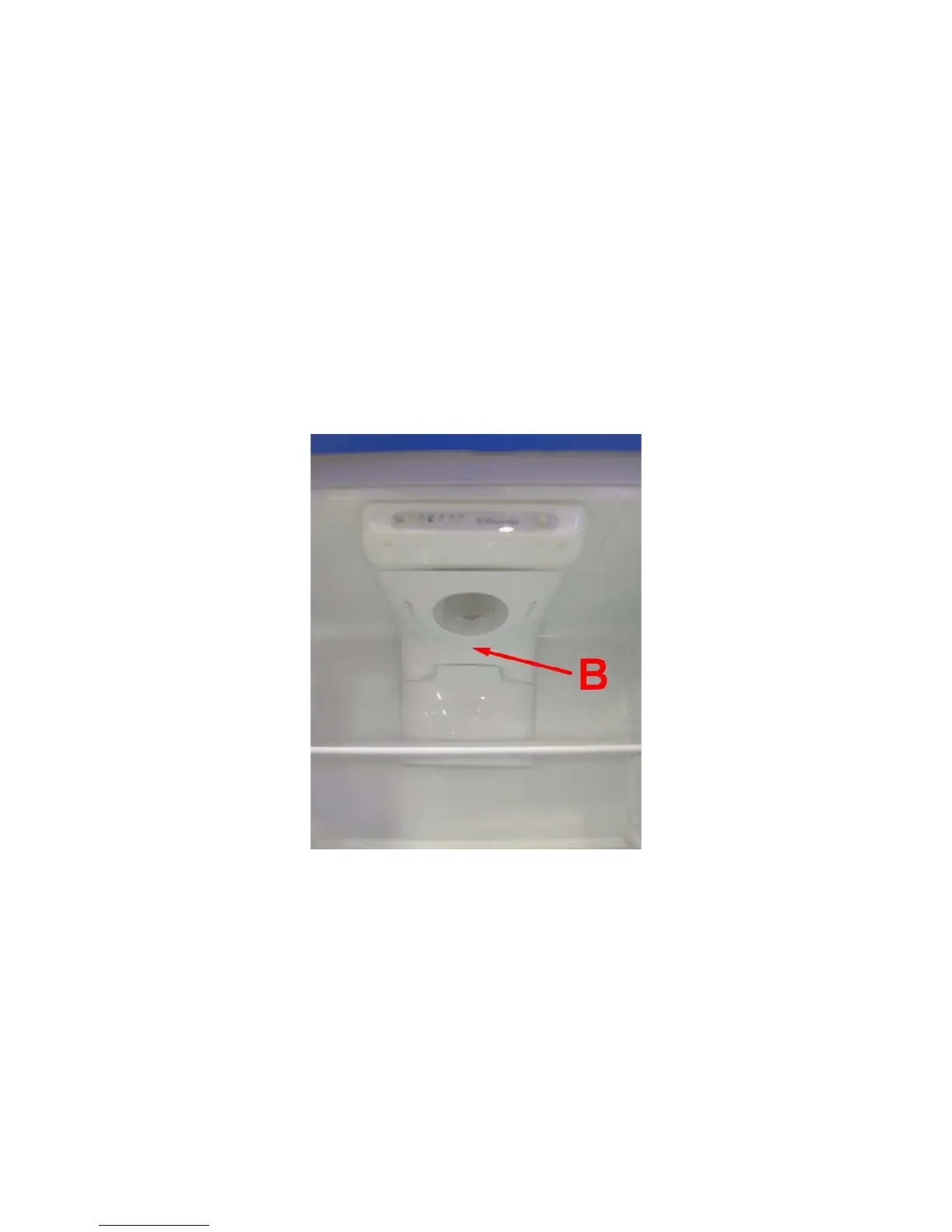

5.3.2 Air box
The air box is located inside the cooler compartment.
The air box contains:
• ERF550 electronic board
• cooler door switch
•lamp
• fan (The switching on of the fan occurs manually through the B button of ON/OFF.)
• air filter
