5.3.2.1 Air box fan
The fan has the following characteristics:
- voltage 240 V
- power 2,9 W
- speed 1550 rpm
The fan is supplied with the 90 mm diameter fan.
5.3.2.2 Cooler door switch
The detection of the opening of the cooler door is carried out by means of:
• electromechanic switch for cooler door control (located in the controls of the air box)
The fan is located inside the air box.

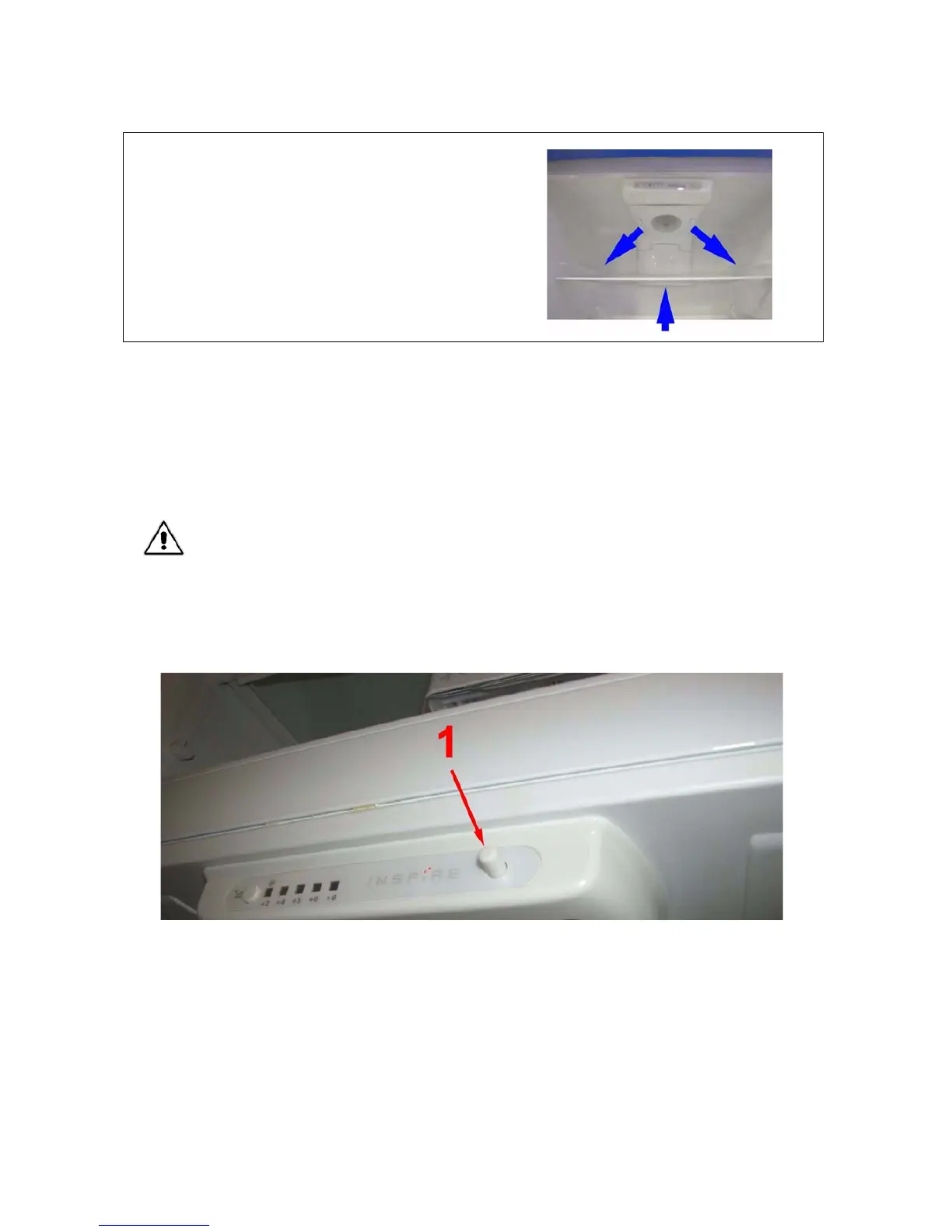

The air is intaken by the fan, therefore, in case of its
replacement, ensure that the air coming out from the fan is
forced towards the front part of the compartment.
In case of cooler door opening, the air box fan does not stop.
1. cooler door switch
