The electromechanical switch controlling the refrigerator door is actioned by the inner door.
The function of the cooler door switch is:
• controlling the switching on and off of the lamp
• sending the open door button to the ERF550 electronic board
The battery evaporator defrosting is driven by the electronic board and depends also on the detection of the
opening of the cooler door.

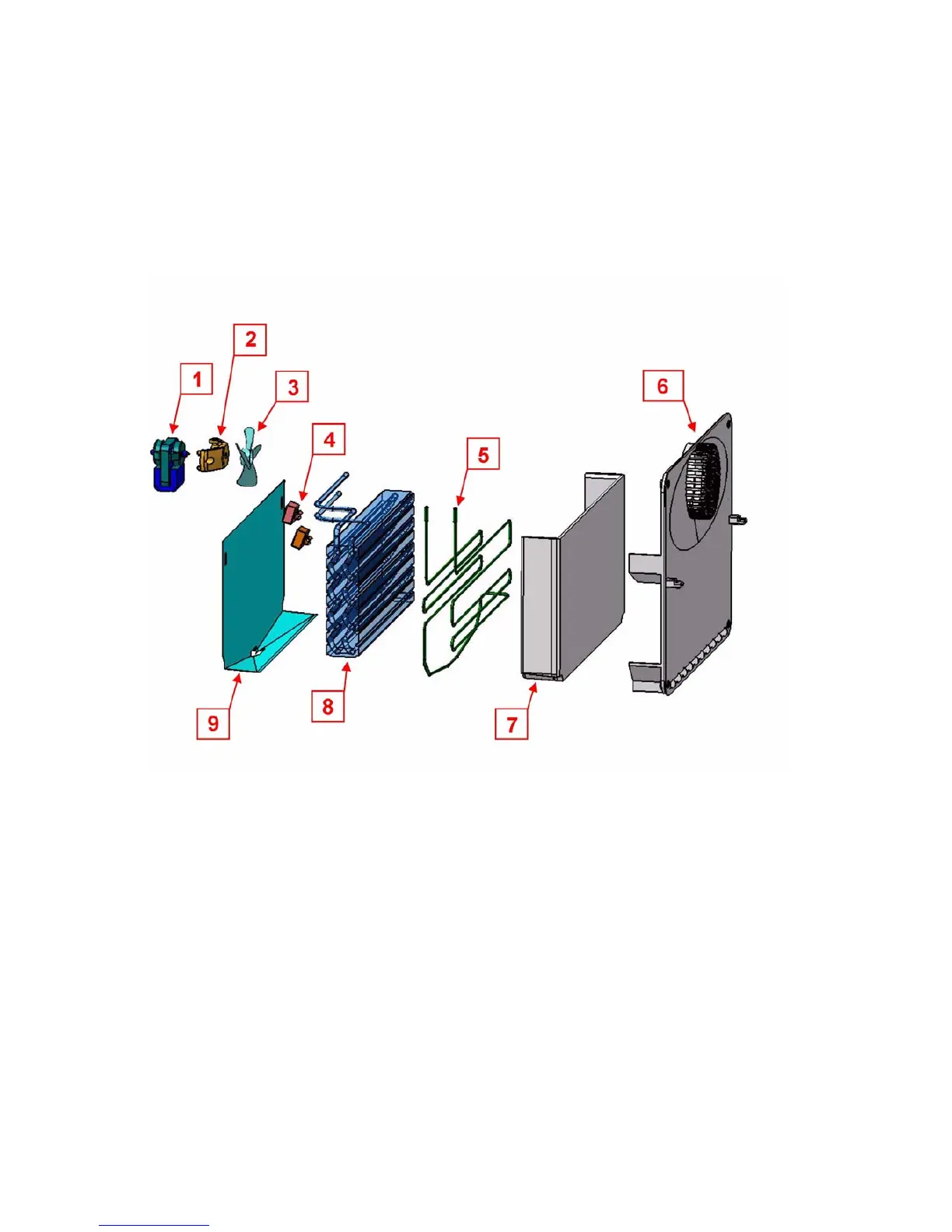

5.4 Freezer compartment
Key:
1. cold module fan
2. fan bracket
3. fan blade
4. thermal switches
5. defrosting heater
6. battery evaporator cover
7. insulation
8. battery evaporator
9. aluminium foil
