Emax Nanohawk 1S User Manual

Nanohawk
3
emax-usa.com
Caution: Failure to support the motor sufficiently can cause the frame to break. Use
caution when pressing the propellers on.
Propeller Dismount
Use caution when dismounting the propellers. Only do so if completely necessary to
change to a new propeller.
1. Use a small tool (such as a 1.5mm hex wrench or the small screwdriver
provided) to press on the metal on the bottom of the motor and Nanohawk.
2. Press on the blades of the propeller with your fingers until the propellers pop
off the motor.
Caution: Failure to support the motor sufficiently can cause the frame to break. Use
caution when pressing the propellers off.
Nanohawk VTX Settings

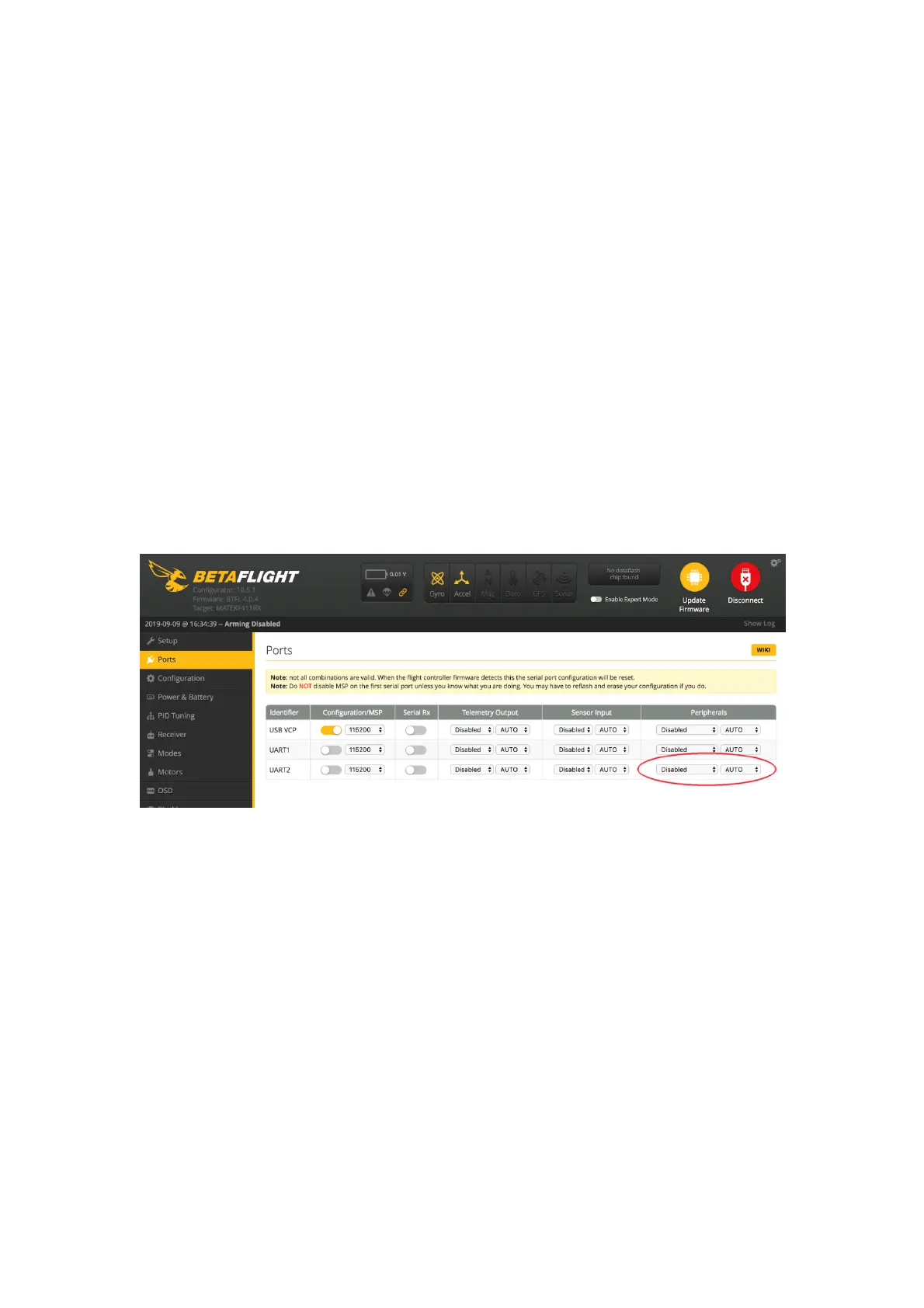

NOTE: You must “disable” VTX Smart AUDIO on UART 2 in order for push button
VTX adjustment to work as described below.
Vtx Schematic and Button Diagram
