Emax Nanohawk 1S User Manual

Nanohawk
4
emax-usa.com

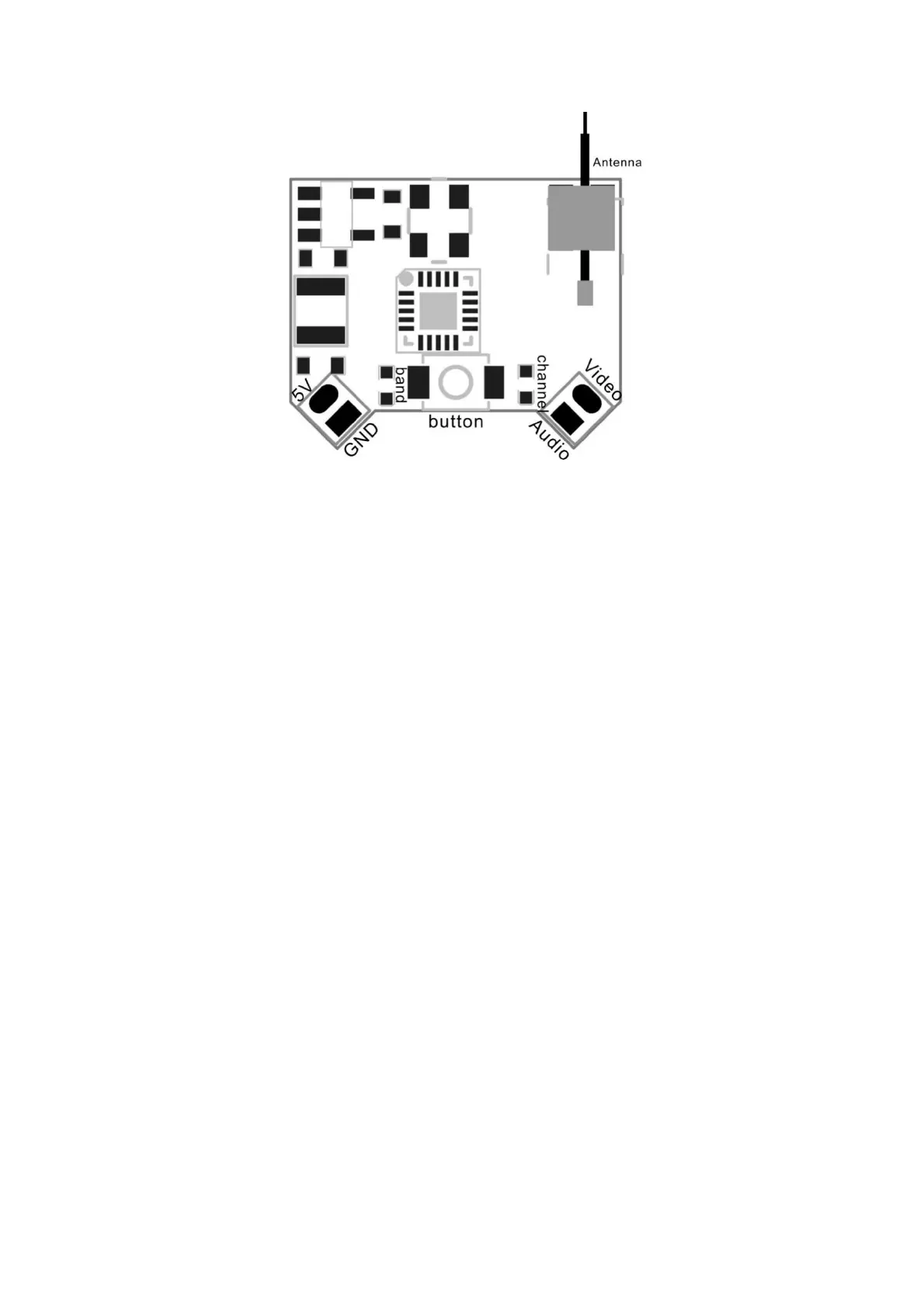

VTX Channel Settings with the Button
1. Normal display
When powered on, the parameters of frequency group band and frequency point
are displayed twice by LED cycle., then the LED is extinguished. To check
frequency group band and channel status click the button once quickly, and LED
starts to indicate frequency band band and frequency channel. First indicate the
frequency group band and then indicate the frequency channel. After all 2 rounds of
LED display cycles, all LED will be off.
2. Menu Entry / Exit
(1)Press the button and hold for 5s to enter the menu. After entering the menu,
band LED lights up.
(2)Press the button and hold for 5s again to save parameters and exit the menu.
After saving and exiting the menu, all LED goes out.
3.Enter / Exit Band / Channel option
(1) After entering menu, short click button to switch frequency group band
frequency point, and the LED of the corresponding menu is lit.
(2) Press the button and hold for 2s to enter frequency group band / channel option.
(3) Press the button and hold for 2s again to exit frequency group band / channel
option and return to the menu.
4. Band / Channel parameter change
After entering frequency group band / channel option, short click button to change
the parameter.
Notice: If you change to an illegal channel using SmartAudio, there will be no image
transmitting from Nanohawk. To switch back to a legal channel, press the button on
the vtx and follow the vtx menu guide shown below.

Emax Nanohawk 1S Specifications

General

Brand	Emax
Model	Nanohawk 1S
Category	Drones
Language	English
