10 C6.2.38/0719/E

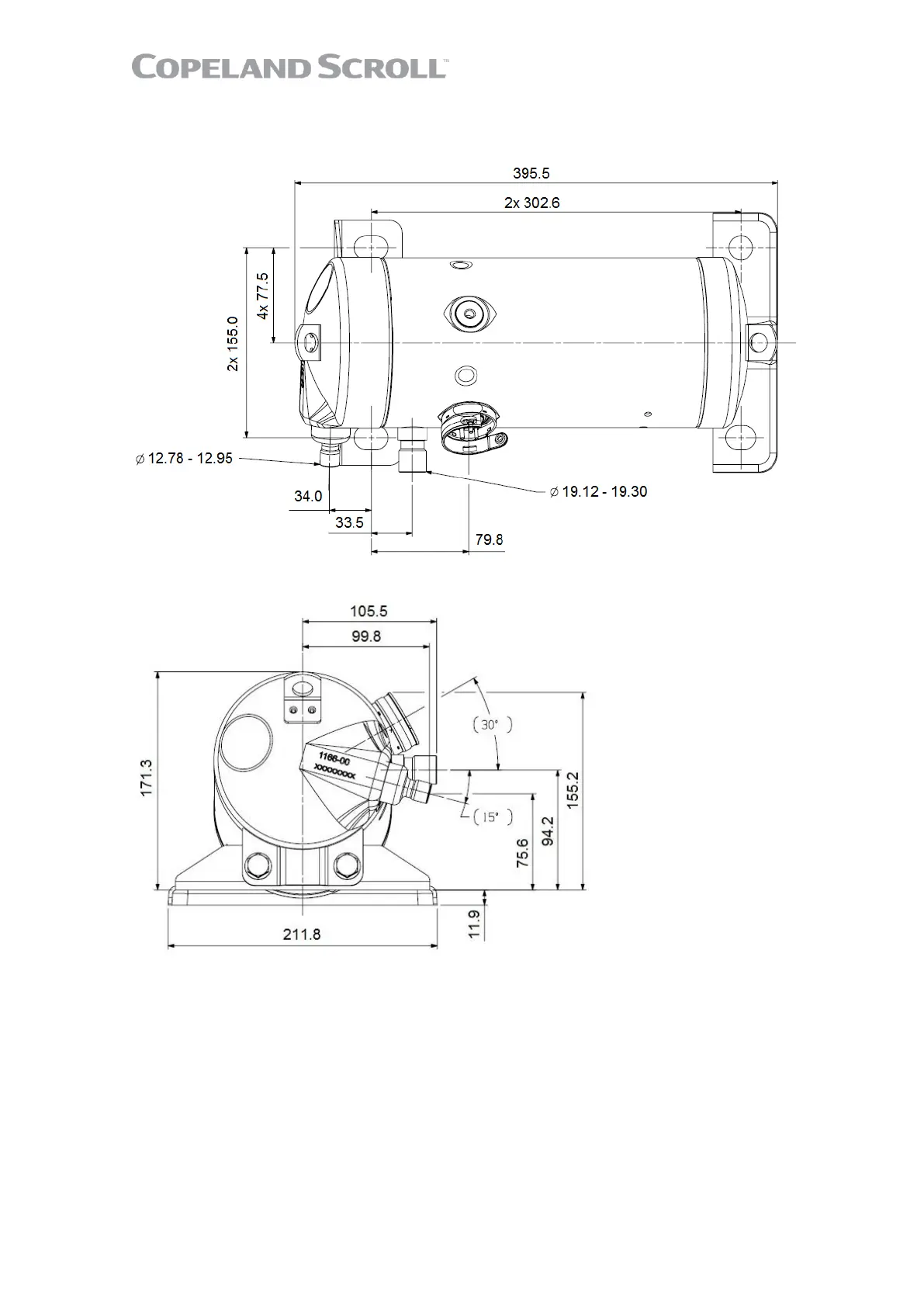

2.7 Dimensions
The external dimensions of YBVH* compressors are shown in Figures 8 & 9 below.
Figure 8: YBVH* compressors external dimensions – top view
Figure 9: YBVH* compressors external dimensions – side view
