Unpacking Instructions
3
emersonfans.com
Please contact 1-800-654-3545 for further assistance
U.L. Model No.: CF244 & CF252
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product by
Emerson Electric Co. Substitution of parts or
accessories not designated for use with this product
by Emerson Electric Co. could result in personal injury
or property damage.
WARNING
!
Do not install or use fan if any part is damaged or
missing. Call Toll-Free:
1-800-654-3545
WARNING
!

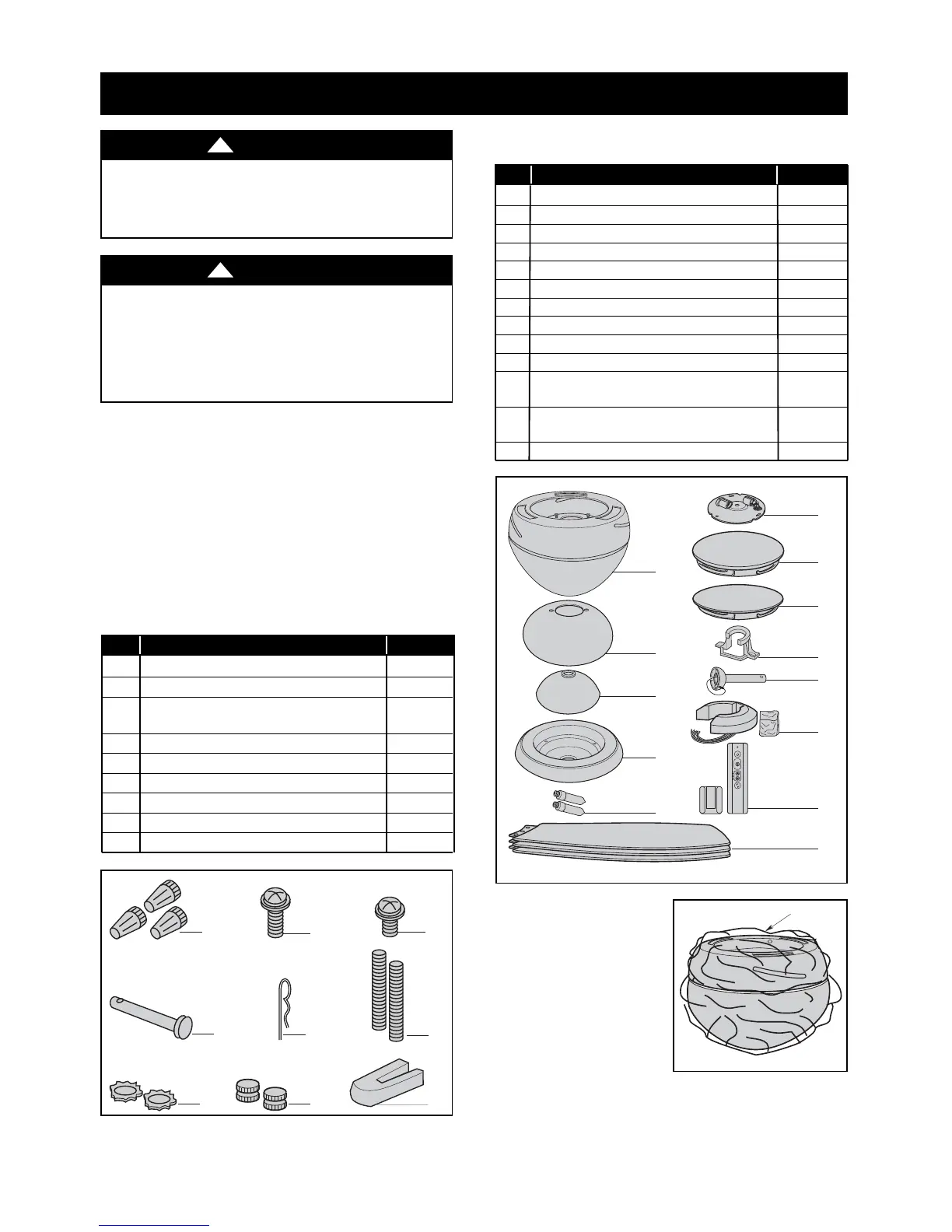

1. Open carton containing fan. Remove top half of
styrofoam unit. Remove parts and check to see that
you have received the following parts:
NOTE: If you are uncertain of part description, refer
to exploded view illustration.
NOTE: Place the parts from the loose parts bags in
a small container to keep them from being lost. If
any parts are missing, contact your local
retailer or catalog outlet for replacement before
proceeding.
HARDWARE CONTENTS
Part Description Quantity
A Fan Motor Assembly 1
B Ceiling Cover 1
C Coupler Cover 1
D Fan Blades 3
E Lower Housing 1
F Light Kit Plate 1
G Glass Shade 1
H No-Light Cover Plate 1
I Hanger Bracket 1
J Hanger Ball/Downrod Assembly 1
K 6-Speed Electronic Receiver Control
with Parts Bag 1
L 6-Speed Handheld Transmitter
with Wall Bracket 1
M 50-Watt Halogen Mini Candelabra Bulbs 2
2. Remove the fan motor
assembly from the
protective plastic bag.
Place all carton
contents on a
protective surface.
Part Description Quantity
1 Wire Connectors, 12 ga. 3
2 M5 x 16mm Flange Head Blade Screws 10
3 M4 x 10mm Pan Head Screw for Lower
Housing/Light Kit (spare) 1
4 Clevis Pin 1
5 Hairpin Clip 1
6 Threaded Stud, #8-32 x 1/1-4” 2
7 External Tooth Lockwasher 2
8 Knurled Knob 2
9 Blade Balance Kit 1
To Next Page
