Figure 4
General
Your Emerson ceiling fan comes supplied with a
Fan/Light Remote Control which consists of a receiver
mounted inside the ceiling cover of the fan motor
housing. This system allows you to regulate your ceiling
fan speed and light intensity.

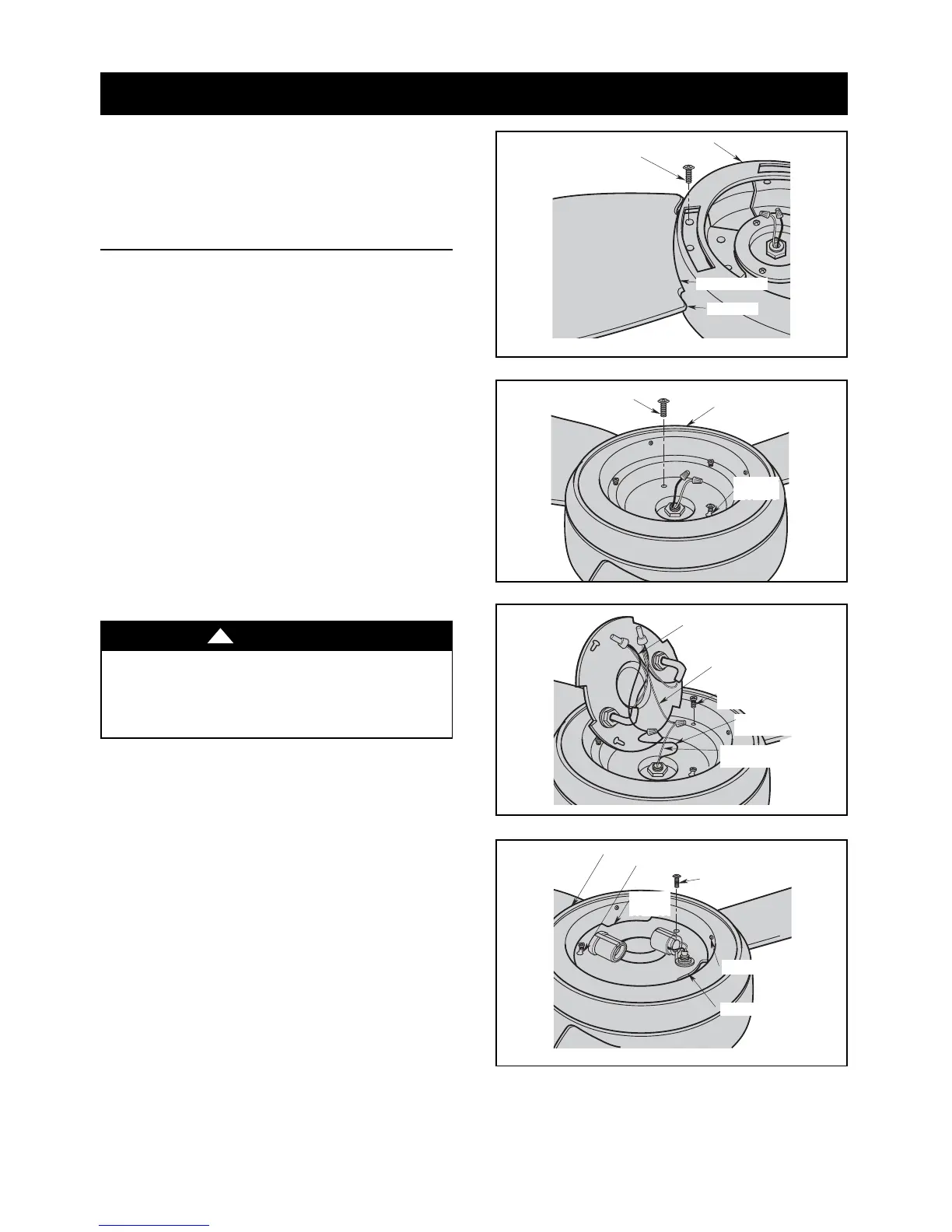

1. Position the fan motor assembly upside down in
preparation for mounting the three fan blades.
2. Slide blade through blade slot in fan housing
assembly. Mount blade to fan housing using three
M5 x 16mm flange head blade screws (Figure 1).
NOTE: Take care not to scratch fan housing
assembly when installing blades.
3. Complete the remaining two blades installation per
the above instructions.
4. Remove one of the three screws in the motor
housing assembly and loosen the remaining two
screws (Figure 2).
5. Attach the lower housing assembly to the fan motor
using the two key slot holes (Figure 2). Secure the
lower housing assembly by tightening the two
screws. Reinstall the screw that was previously
removed.
6. Remove and retain the wire connectors from the
white and blue wires.
7. Connect the white wire from the ceiling fan to the
white wire of the light kit plate (Figure 3). Connect
the blue wire from the ceiling fan to the black wire of
the light kit plate. Use wire connectors (previously
removed) to make connections.
8. Remove one of the three screws in the lower
housing and loosen the remaining two screws
(Figure 3).
9. Tuck the wires and connectors into the fan housing.
Position the light kit plate into the fan housing by
placing the cut out notches over the fan housing
dimples (Figure 4).
NOTE: Make sure all wires and connectors are
tucked under the light kit plate and not pinched
between light kit plate and fan housing.
10. Attach the light kit plate assembly to the lower
housing using two key slot holes (Figure 4). Secure
the light kit plate assembly by tightening the two
screws. Reinstall the screw that was previously
removed.
To avoid possible fire or shock, the connectors should
not be removed unless immediately installing the light
kit.
Power should be turned off prior to connector removal
and light kit installation.
WARNING
!
5
emersonfans.com
Please contact 1-800-654-3545 for further assistance
U.L. Model No.: CF244 & CF252
