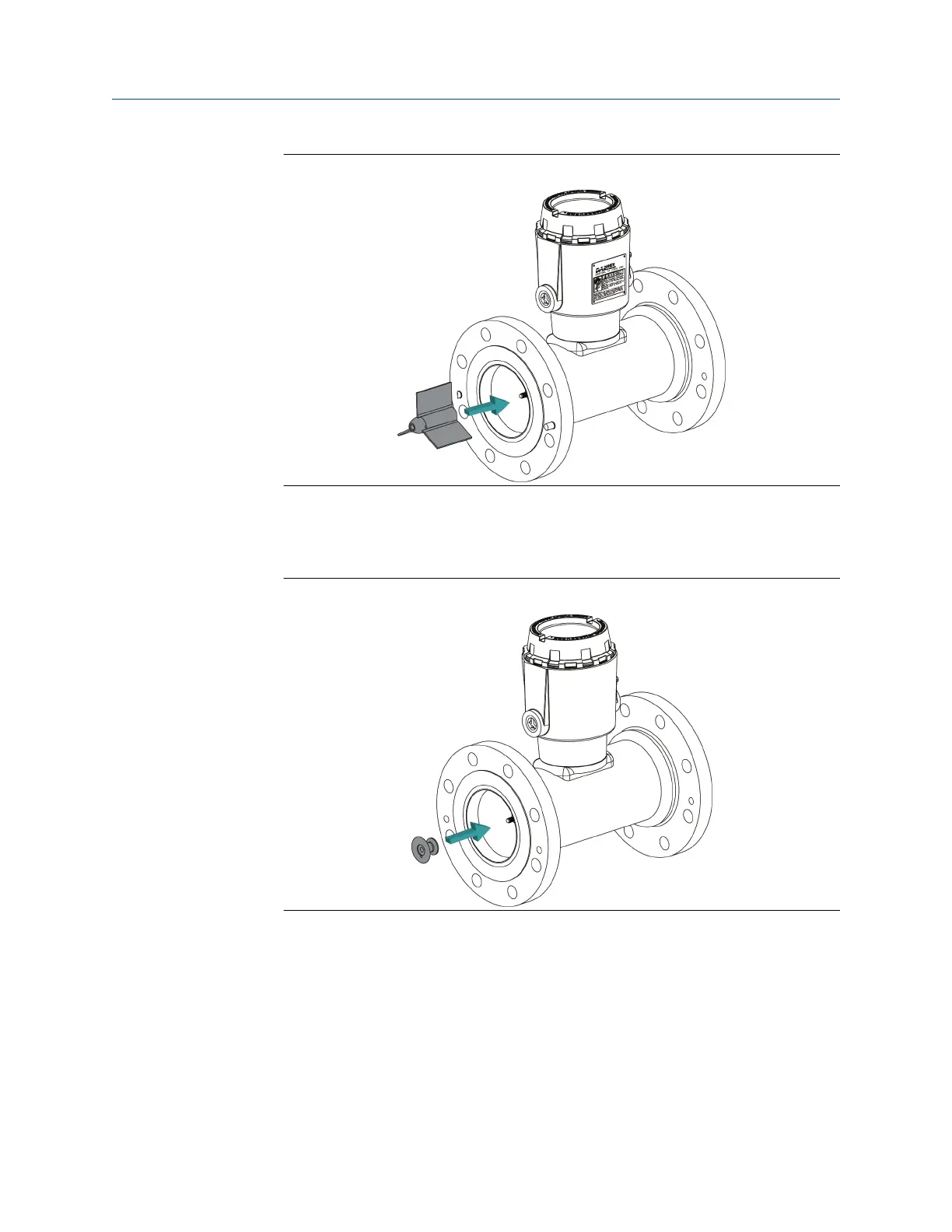

Figure 9-8: Upstream hanger assembly installation
2. Thread the nut into the shaft end and insert the shaft through the upstream hanger
assembly on the inlet side.
3. Insert the upstream cone to the shaft. The thrust washer should remain in the cone.
Figure 9-9: Upstream cone installation
4. Insert the journal bearing in to the rotor assembly.
Planned maintenance User manual
March 2019 P/N 3-9008-515
92 Daniel Series 1500 Liquid Turbine Meter, NPS 3-24
