Wiring Power
EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-
hazardous. Performing this operation in a hazardous area could result in an
explosion.
The flow computer accepts DC power with an input voltage range from 5.7 to 30V. The
amount of power required depends on installed options.
If your device includes the 6-channel expansion I/O board your terminal block includes
eight connectors; if it does not, your terminal block includes six connectors.
Note

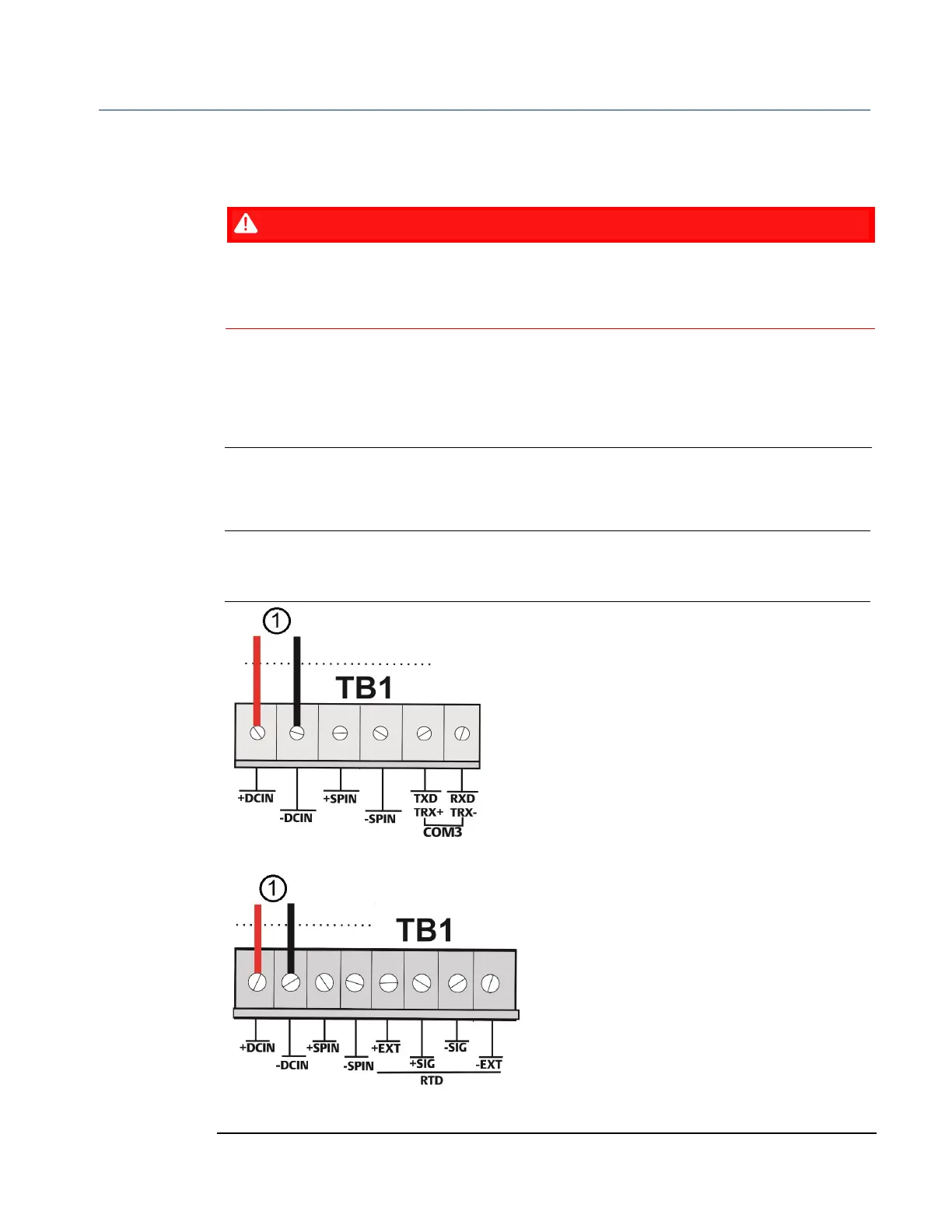

The two upper graphics show the wiring for units with the 6-channel expansion I/O
board; the lower graphic shows wiring for units without this board.
DC Power
To Next Page
