FB1200 Flow Computer Quick Start Guide
D301786X012
November 2023
6
Bolting Considerations
EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-
hazardous. Performing this operation in a hazardous area could result in an explosion.
If the flow computer installation requires assembly of a process flange, manifold, or
flange adapters, follow these assembly guidelines to ensure a tight seal for optimal
performance characteristics of the flow computer.
Only use bolts supplied with the flow computer or sold by Emerson as spare parts.

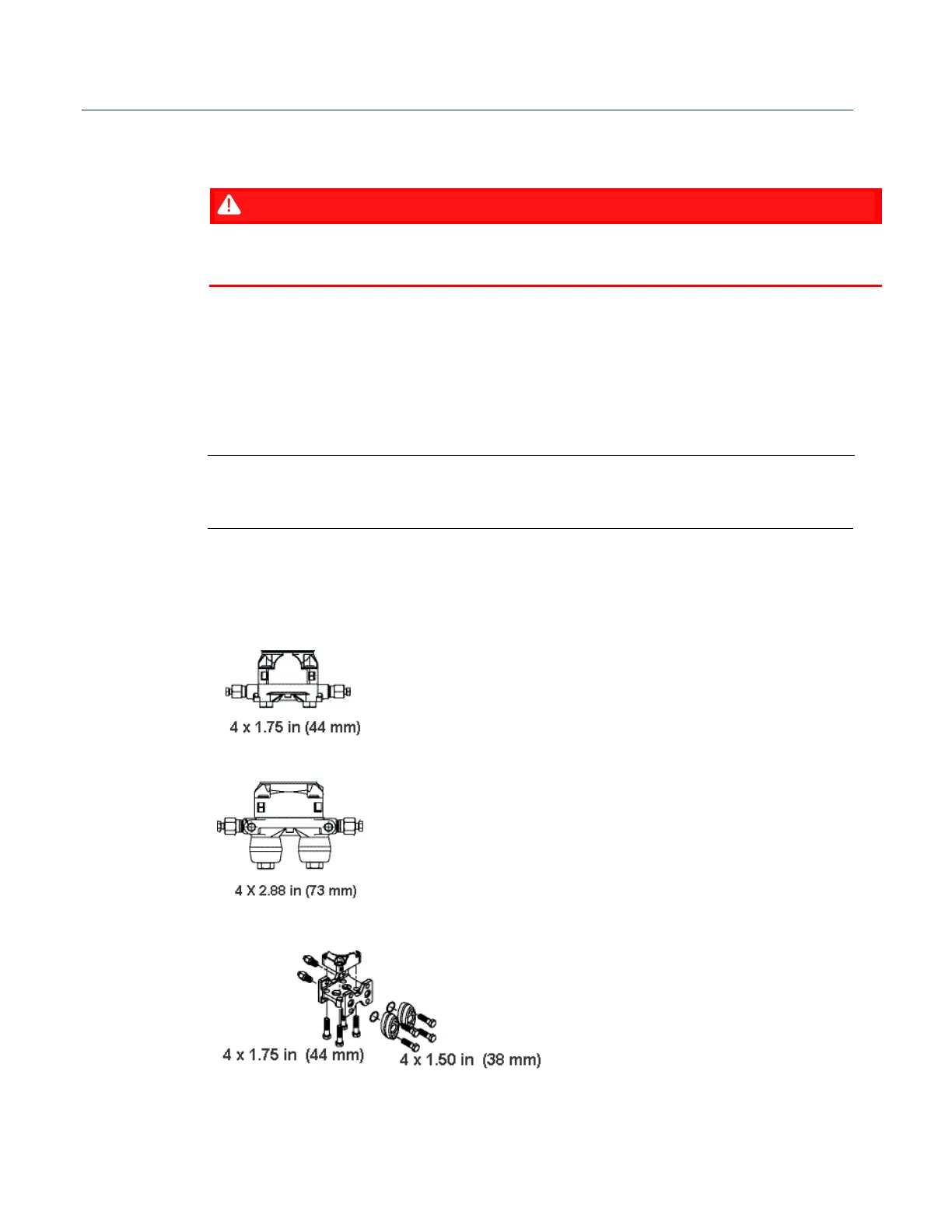

Refer to the figures, below, for common flow computer assemblies with the bolt length
required for proper flow computer installation.
Note
For all other manifolds, contact your local Emerson Sales office or Emerson Impact
Partner.
Bolts are typically carbon steel or stainless steel. Confirm the material by viewing the
markings on the head of the bolt and referencing Table 2. If bolt material is not shown
in the table, contact your local Emerson representative for more information.
Transmitter with coplanar flange
Transmitter with coplanar flange and optional flange adapters
Transmitter with coplanar flange and optional flange adapters
