Instruction Manual
D104161X012
D3 Valve with Gen 2 easy-Drive Actuator
February 2021
12
D Dual Contact On/Off
D Single Contact On/Off
D Modbus On/Off
D Positioning Tier - License required (see Licensing section)
D Dual Contact On/Off
D Single Contact On/Off
D Modbus On/Off
D Modbus Positioning
D 4-20mA Positioning
D 4-20mA Level

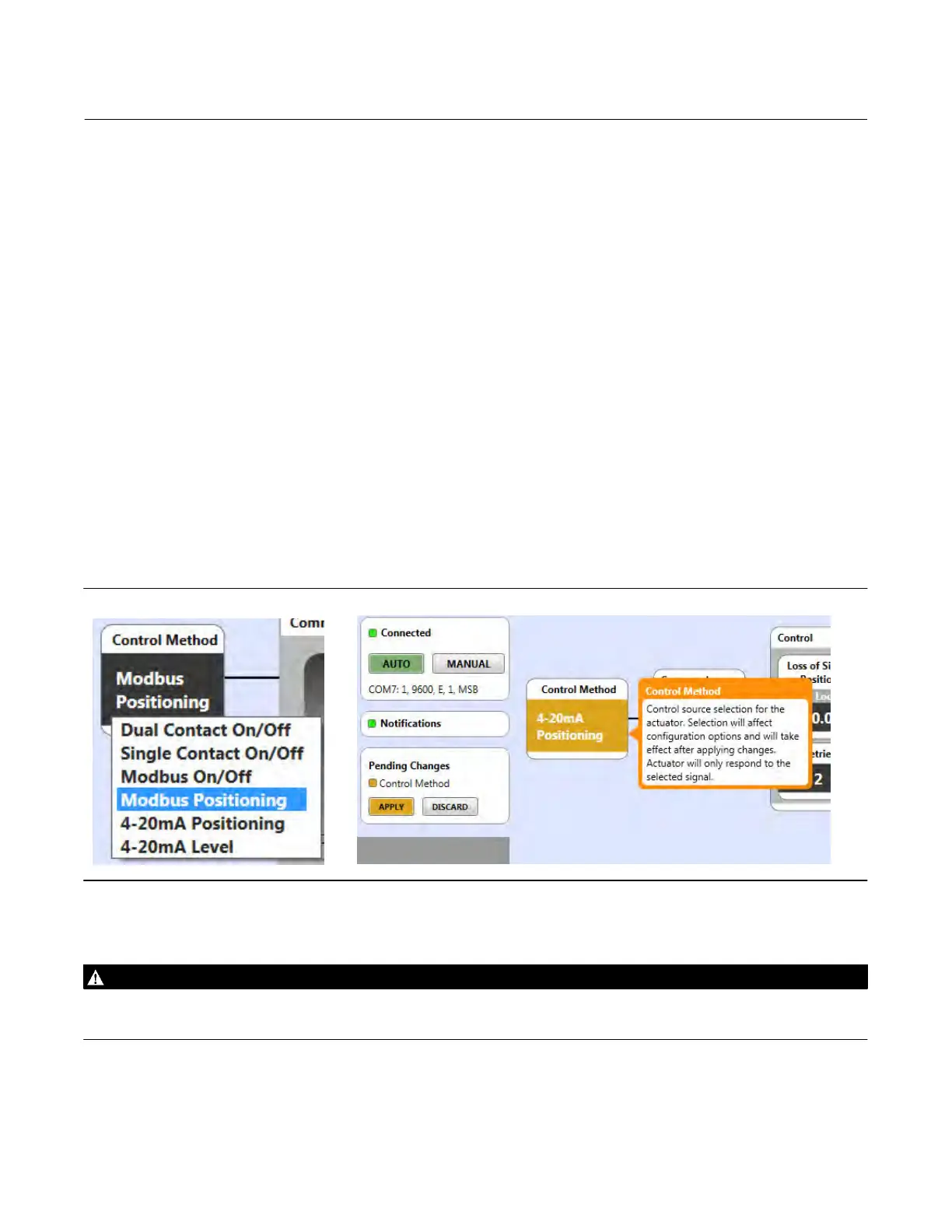

When using the easy-Drive Configuration Tool, clicking on the “Control Method” box will create a drop menu as
shown. Select the desired control source; the selection will turn yellow. A box with Pending Changes will appear
showing all changers. Press “APPLY” and the valve will immediately respond to that signal only.
Figure 11.
Calibration Instructions
WARNING
To avoid personal injury or property damage, be aware that the valve will open fully and then close fully during the
calibration cycle.
