Instruction Manual
D104161X012
D3 Valve with Gen 2 easy-Drive Actuator
February 2021
19
iii. Command 100% (20mA or 5V).
iv. Using a Modbus link, send a 1 to register 40005 or use the Fisher easyDrive configuration software by clicking
the button “Analog Cal at 100%”.

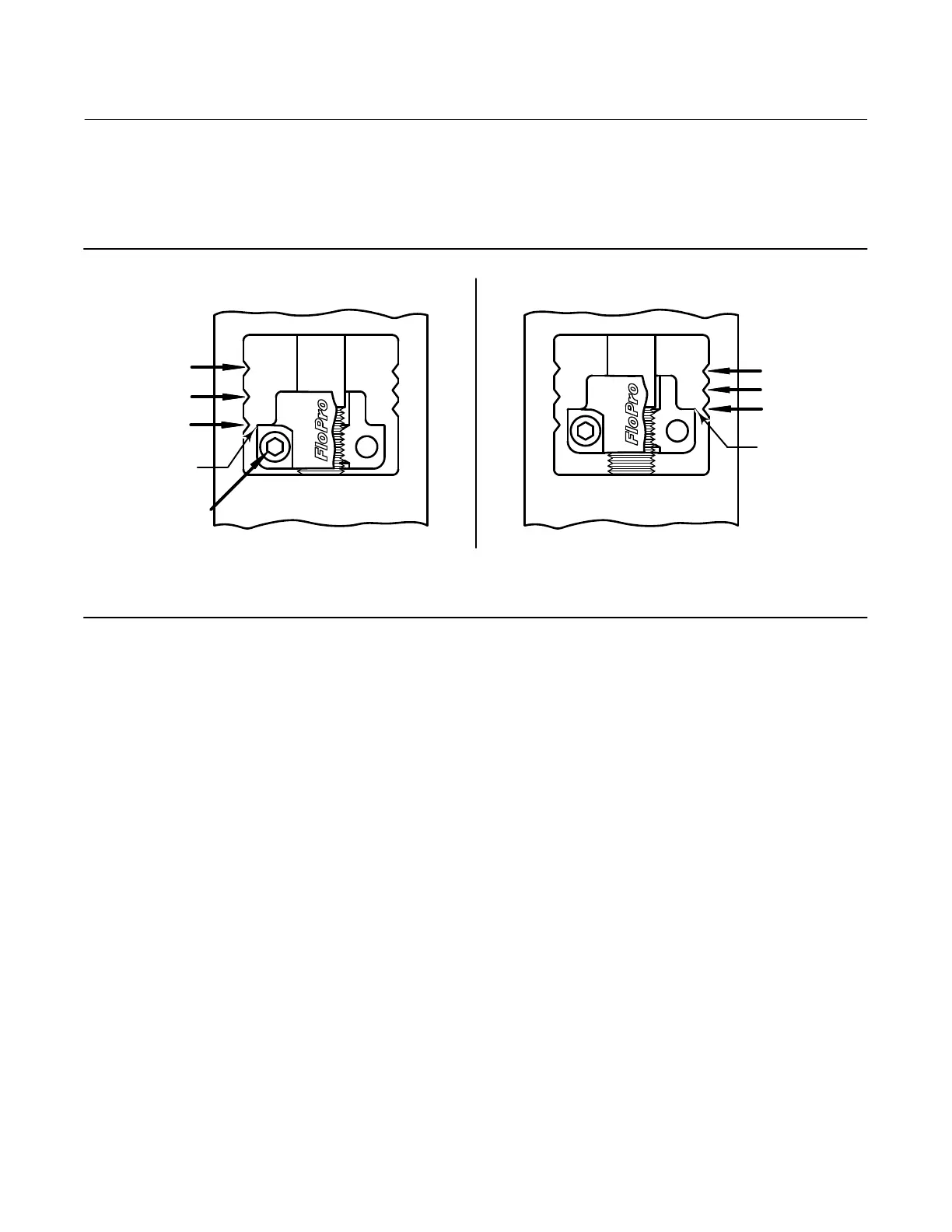

Figure 19. Adjusts to Vary Flow Capacity (Shown with Valve Plug in Seated Position)
CLOSED
50%
100%
CLOSED
50%
100%
USE 5/32 INCH
ALLEN KEY
FULL CAPACITY SETTING (FACTORY SET)
15 mm (0.6 INCH) TRAVEL
NOTE: USE THE WIDELY-SPACED TRAVEL INDICATORS,
AS SHOWN ON THE LEFT PORTION OF THIS VIEW.
REDUCED CAPACITY SETTING
10 mm (0.4 INCH) TRAVEL
NOTE: USE THE CLOSELY-SPACED TRAVEL INDICATORS,
AS SHOWN ON THE RIGHT PORTION OF THIS VIEW.
STEM CONNECTOR
INDICATES TRAVEL
STEM CONNECTOR
INDICATES TRAVEL
Setting the Valve Flow Adjuster
The flow setting may only be adjusted if the 0.375 and 0.75 inch port sizes are installed and only when using the on/off
version.
When shipped from the factory, the actuator has the flow adjuster set at the maximum flow rate position for the given
port size.
1. Ensure the valve plug is in the seated position.
2. To change the valve flow rate, loosen the flow adjuster socket head cap screws (key 15) with a 5/32 inch Allen key,
and reposition the flow adjuster halves (key 13 and 14) to the desired flow rate position. See figure 19 for flow rate
settings.
3. Retighten the socket head screws (key 15) to 3 NSm (26 lbfSin).
4. Follow instructions for recalibration on page 10.
