FloBoss 103/104 Instruction Manual
4-2 Input/Output Revised August-2017
4.1.1 Selecting the Type of I/O
To select the type of output for the Analog Output/Discrete Output #1
channel, flip the AO/DO switch on the termination board to the desired
position. Refer to Figure 4-1 for the switch location. Then select the
desired output type on the Configure > I/O > Setup screen in ROCLINK
800 configuration software. Analog Output is the default position for
this channel.
To select the type of input for the Analog Input/Discrete Input and
Pulse Input/Discrete Input channels, use the Configure > I/O > Setup
screen in ROCLINK 800 configuration software. The defaults are
Analog Input and Pulse Input.
A
Optional I/O terminal block
B
250-ohm resistor switches
C
AO/DO switch

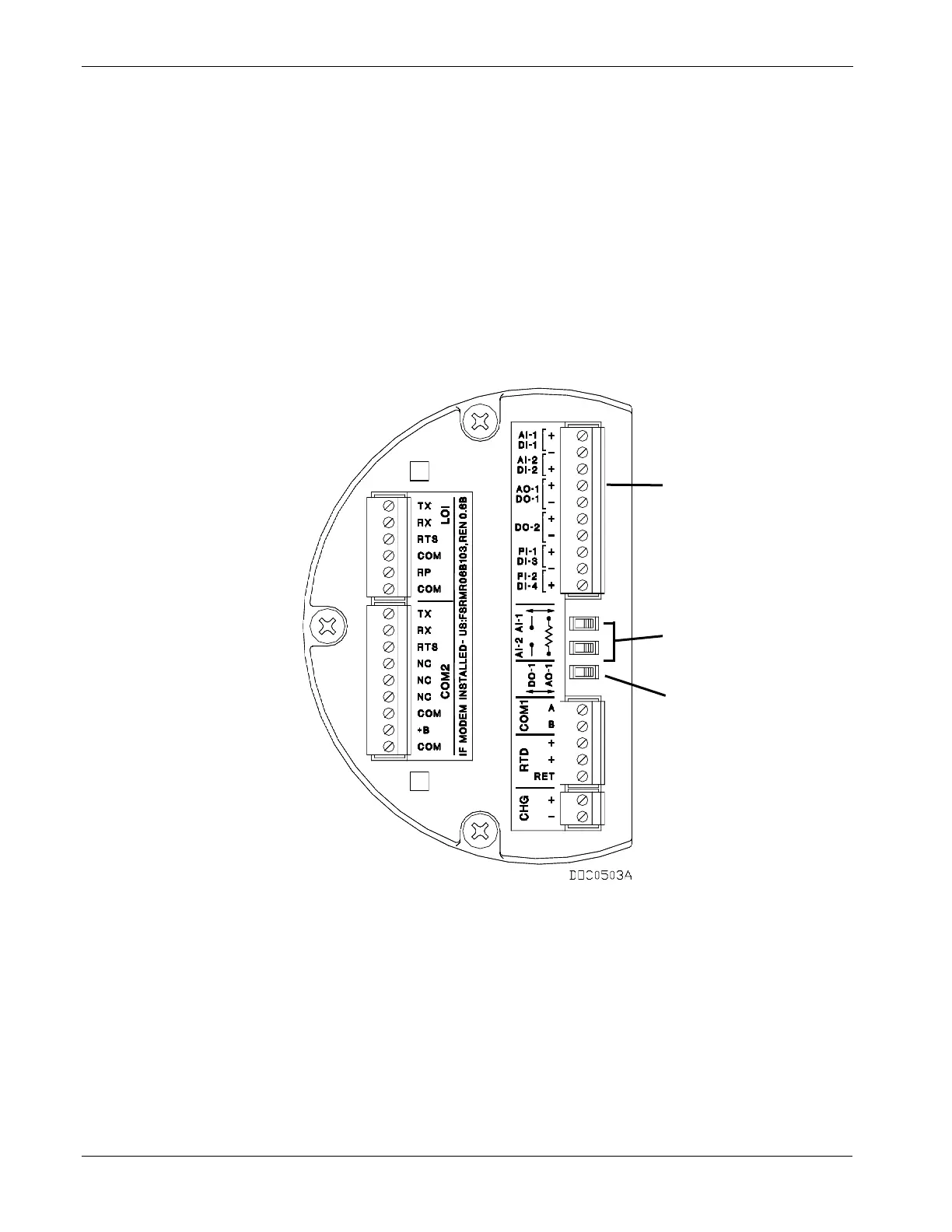

Figure 4-1. Termination Board with Optional I/O
