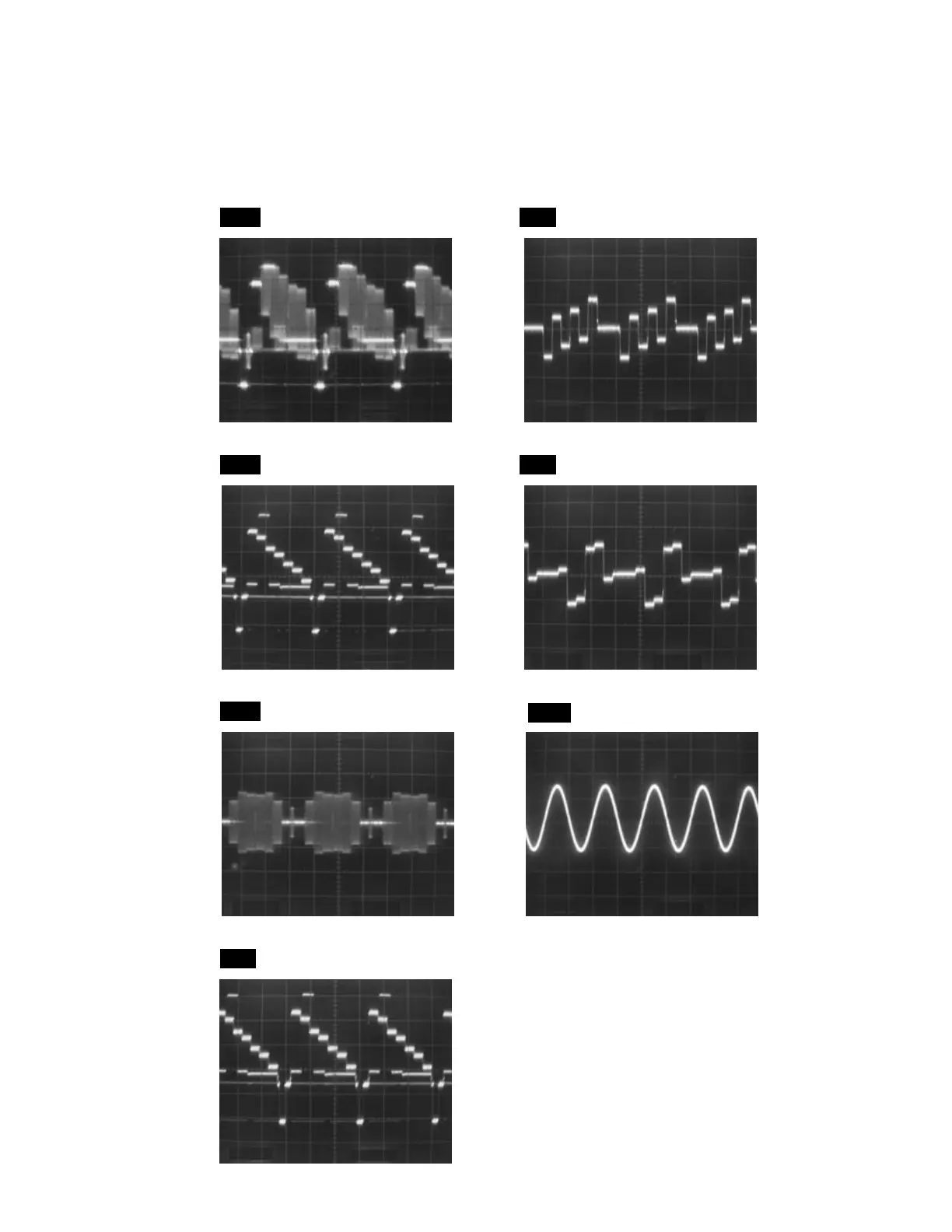

WAVEFORMS
A71F0WF9-1
Input: NTSC Color Bar Signal (with 1kHz Audio Signal)
WF1 ~ WF7 = Waveforms to be observed at
Waveform check points.
(Shown in Schematic Diagram.)
CVBS 0.2V 20
µ
s
WF1
Pin 1 of CN7501
S-VIDEO-Y 0.2V
WF2
Pin 9 of CN7501
20
µ
s
S-VIDEO-C 0.2V
WF3
Pin 8 of CN7501
20
µ
s
AUDIO 1V 0.5ms
WF7
Pin 14 of CN7501
VIDEO-Pr 0.2V 20
µ
s
Pin 6 of CN7501
WF6
VIDEO-Pb 0.2V 20
µ
s
Pin 5 of CN7501
WF5
VIDEO-Y 0.2V 20
µ
s
Pin 3 of CN7501
WF4
