Battery Installation
22

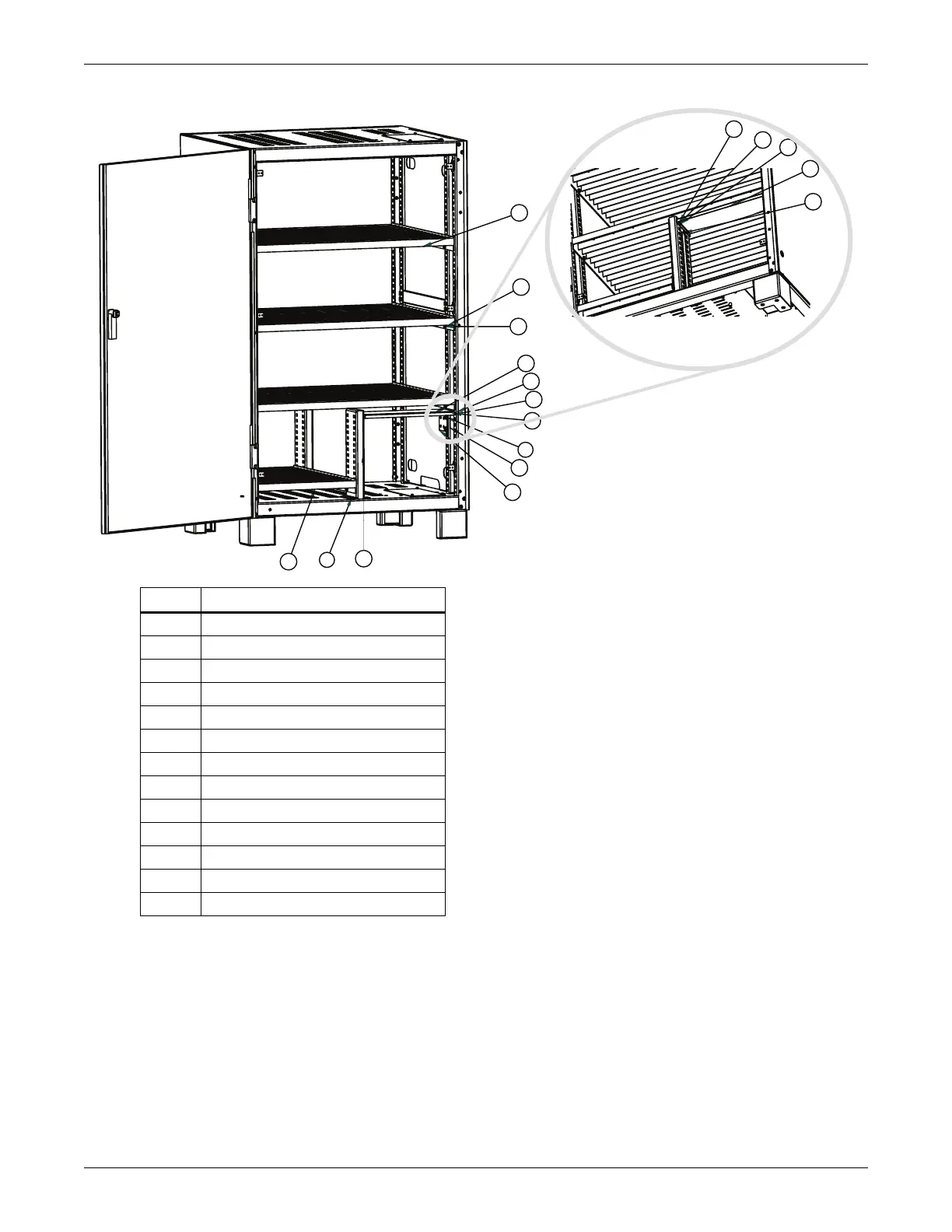

Figure 11 Battery cabinet, bottom entry
2.4 Battery Power Cables
2.4.1 Connection Principles
The following notes, in conjunction with the diagrams, illustrate the broad principles to be followed
when fitting and connecting the majority of battery installations.
Item #
Item Name
1 Grille steel
2 Grille steel
3 Middle pillar
4 Cover module BC Small NXf
5 Ground bus
6 Captive nut M4
7 Captive nut M6
8 Screw flange M6x16
9 Nut flange M6
10 Screw M6x16 countersink
11 Spring washer M4
12 Flat washer M4
13 Screw mushroom head cross M4x12
10
8
8
5
1
2
3
4
9
6
13
12
12
11
13
4
6
7
