Quick Start Guide
11
February 2019
3.6 Flexible rubber tube mounting
The transmitter and flange are secured to the rubber tube by tightening clips.
This is done by the factory, prior to delivery.
1. Install a suitable pipe in the tank.
2. Insert the rubber tube into the pipe and secure the provided flange to the
deck socket.

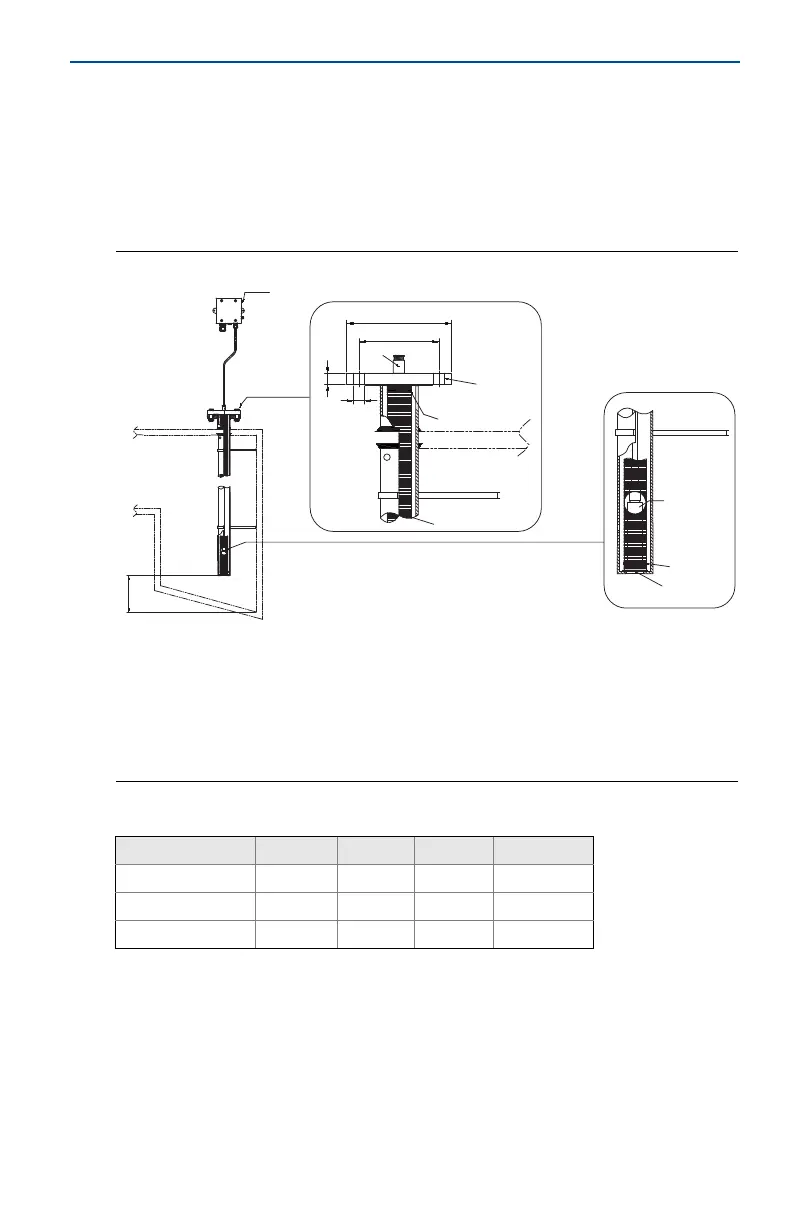

Figure 6. Installation Drawing
A. Optional junction box
B. Refer to Table 3
C. Tank top
D. Refer to Table 3
E. Dead zone
F. Lowest tank bottom
G. Transmitter
H. Washer
I. Tightening clip
J. Rubber tube
K. Refer to Table 3
L. Flange
M. Cable gland PG11, DIN 89280
Table 3. Flange Size for Flexible Rubber Tube and PTFE Tube
Standard D (mm) B (mm) K (mm) d x n (mm)
DN50 PN16 165 19 125 18 x 4
JIS50A—16K 155 20 120 19 x 4
2-in. ANSI/150 153 19 120 19 x 4
A
C
E
F
G
I
H
M
I
L
J
D
K
B
d
00825-0100-4520_RevAC.fm Page 11 Thursday, February 7, 2019 10:16 AM
