4.3 Rail mount transmitter and sensor

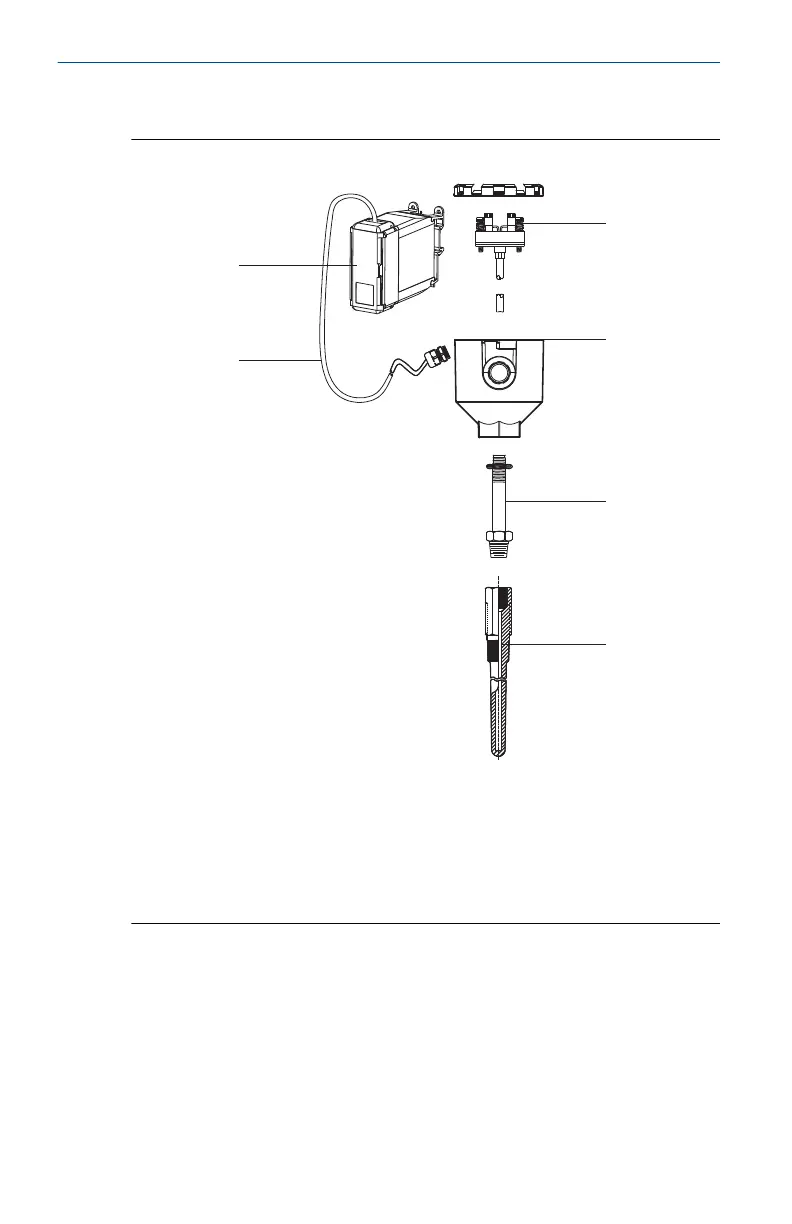

Figure 4-1: Rail mount transmitter and sensor exploded view
A. Rail mount transmitter
B. Sensor leads with cable glands
C. Integral mount sensor with terminal block
D. Connection head
E. Standard extension
F. Threaded thermowell
Procedure
1. Attach the transmitter to a suitable rail or panel.
2. Attach the thermowell to the pipe or process container wall.
3. Install and tighten the thermowell, according to plant standards,
before applying pressure.
4. Attach the sensor to the connection head and mount the entire
assembly to the thermowell.
Quick Start Guide April 2019
16 Rosemount 644H and 644R
