16.0 QUICK REFERENCE GUIDE - PENDANT CONTROLS
• Refer to Figure 11 for pendant quick reference guide.
• For some functions, two pendant buttons must be pushed simultaneously and/or in a sequence. Refer to sections 8.0 and 9.0 of
this manual for detailed instructions.
• Pump must be connected to AC power. Pendant buttons are not functional when AC power is disconnected.
Activate
Manual
Mode
Stop Pump
Motor
Activate
Auto Cycle
Mode
Set Stored
Pressure
Manual Pressure
Relief
Clear
Stored
Pressure

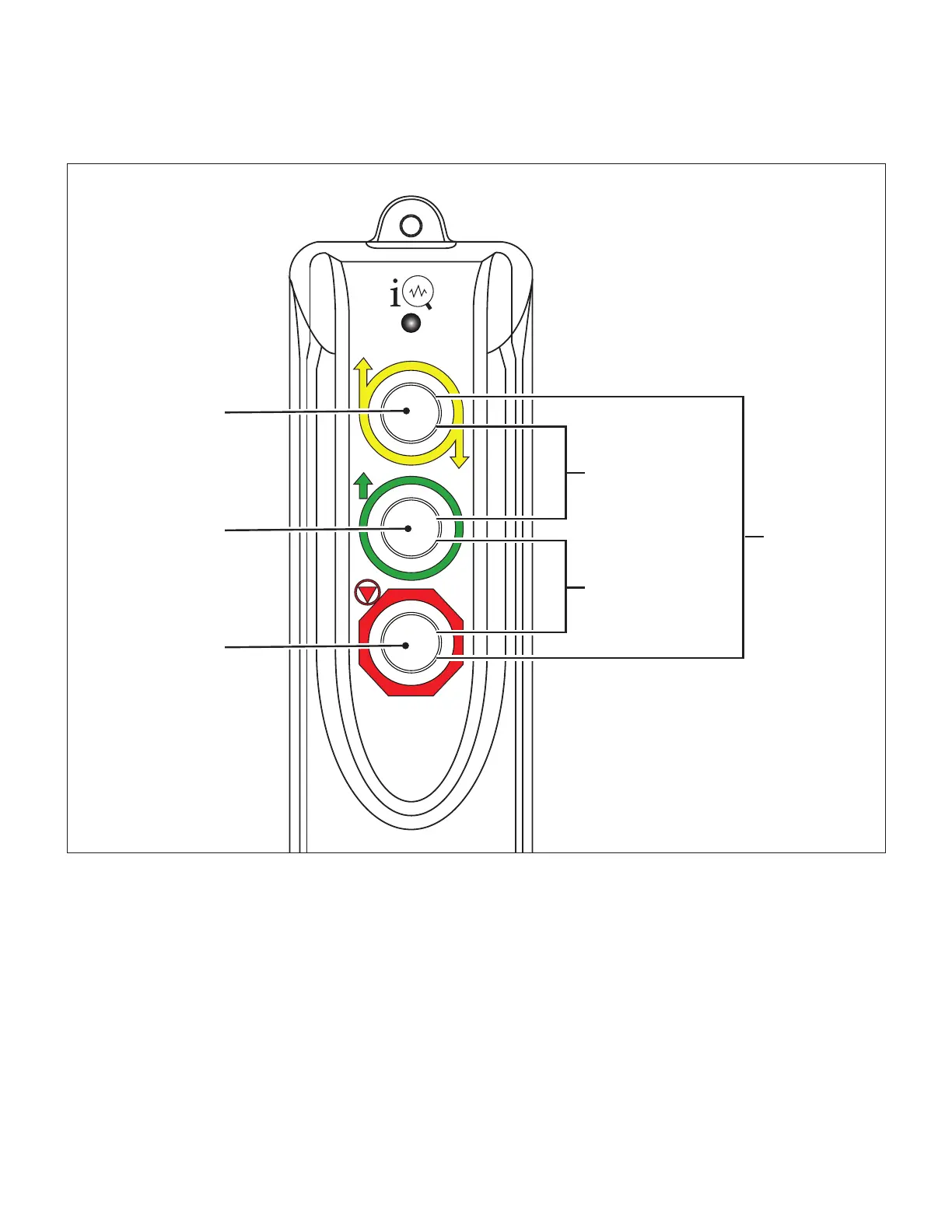

Figure 11, Quick Reference Guide - Pendant Controls
