IQ8 Commercial Microinverter grid-tied PV system
17 © 2023 Enphase Energy Inc. All rights reserved. November 2023
USG-00026-1.0
2.2.3 Design considerations for QD accessories
Table 7: QD Cable accessories
Accessories SKU number Description
Three-phase Field
Wireable QD
Connectors
QD-CONN-10M (Male)
QD-CONN-10F
Use Field Wireable QD Connectors for making
connections from Raw QD Cable
QD Cable Clip ET-CLIP-100 Used to fasten cabling to the racking or to secure looped
cabling
QD Disconnect Tool QD-DISC-10
Disconnect tool for QD Cable connectors, DC
connectors, and AC module mount
QD Sealing Caps QD-SEAL-10 Female sealing cap for the unused connector in QD Cable
QD Terminator QD-TERM-10 Terminator for unused cable ends
Three-phase Field Wireable QD Connectors
When the microinverters are located some distance from the roof top junction box, it may be most
economical to use Raw QD Cable (without connectors) to run across an array or to run through a
raceway, conduit, or a chase to another array and use three-phase Field Wireable QD Connectors to
connect. The three-phase Field Wireable QD Connectors should be used for cables with a cable
gauge of 12 AWG/10 AWG and with a maximum outer diameter of 21 mm.
For more information, see the Three-phase Field Wireable QD Connector Quick install Guide.
NOTE: The five-pin, three-phase Field Wireable QD Connectors include connections for L1,
L2, L3, N, and PE. Do not use PE pin when using with four-core QD Cable.

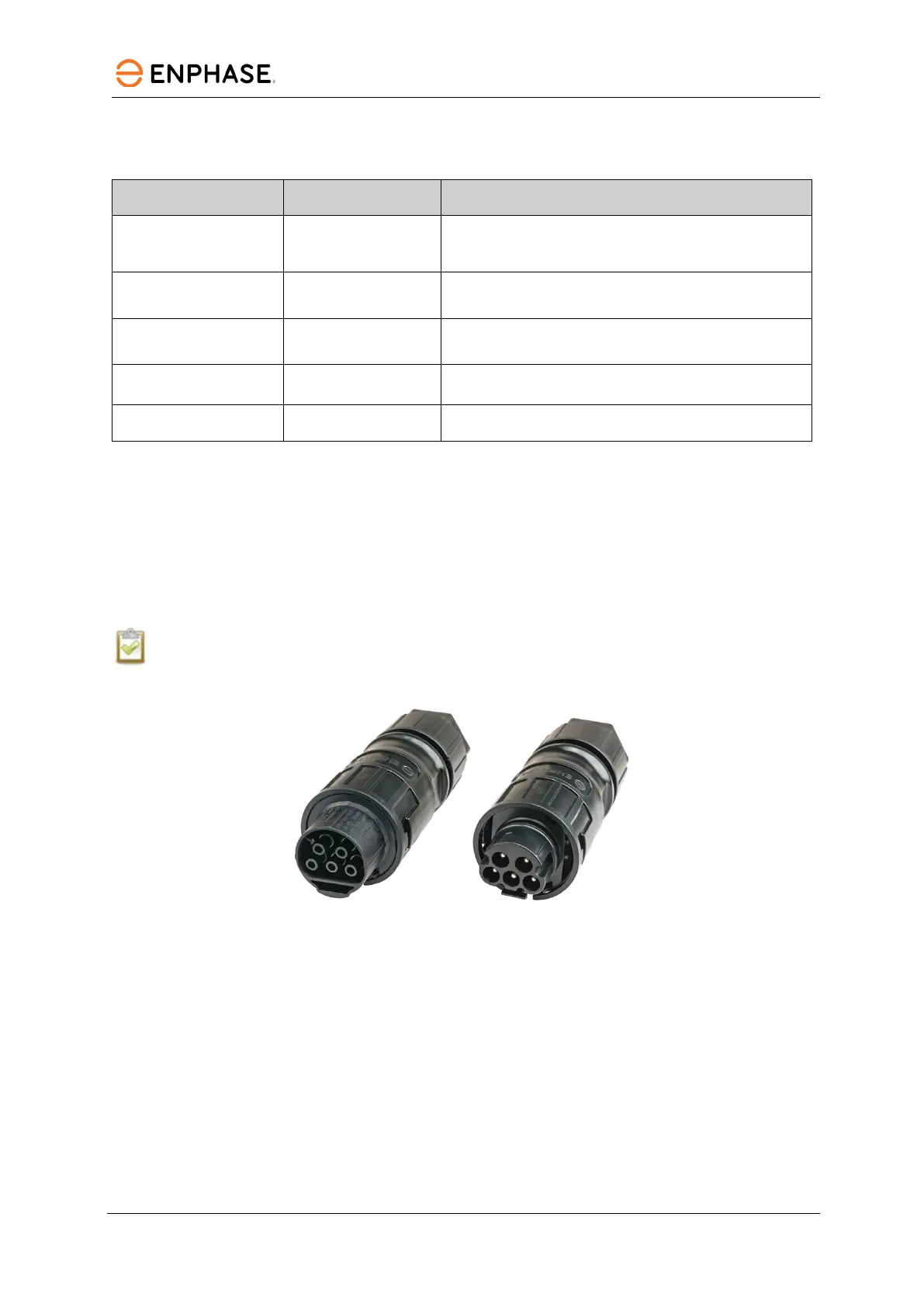

Figure 6: Three-phase Field Wireable QD Connector
QD Cable Clip
The Enphase QD Cable Clip (ET-CLIP-100) can support one or two QD Cables or Raw QD Cables to a
solar mounting rail. This clip has been evaluated with a large selection of racking systems and works
with most available rail-based racking systems.
These clips support the cable along the rail and may be adequate for supporting the cabling during
row-to-row transitions (depending on cable length), but additional support may be provided from
module frame clips.
