Installing and Connecting a Redundant Power System
2-14 Installation
Rack Mounting the Chassis
Refer to Figure 2-7 or Figure 2-8 and proceed as follows to install the chassis into a 19-inch
(48.3-cm) rack:
1. Position the chassis between the vertical rails and align the mounting holes in the chassis
brackets with those in the rack frame.
2. Fasten the chassis securely to the rails using the customer-supplied mounting screws (four for
the STK-RPS-150CH2, ten for the STK-RPS-150CH8).

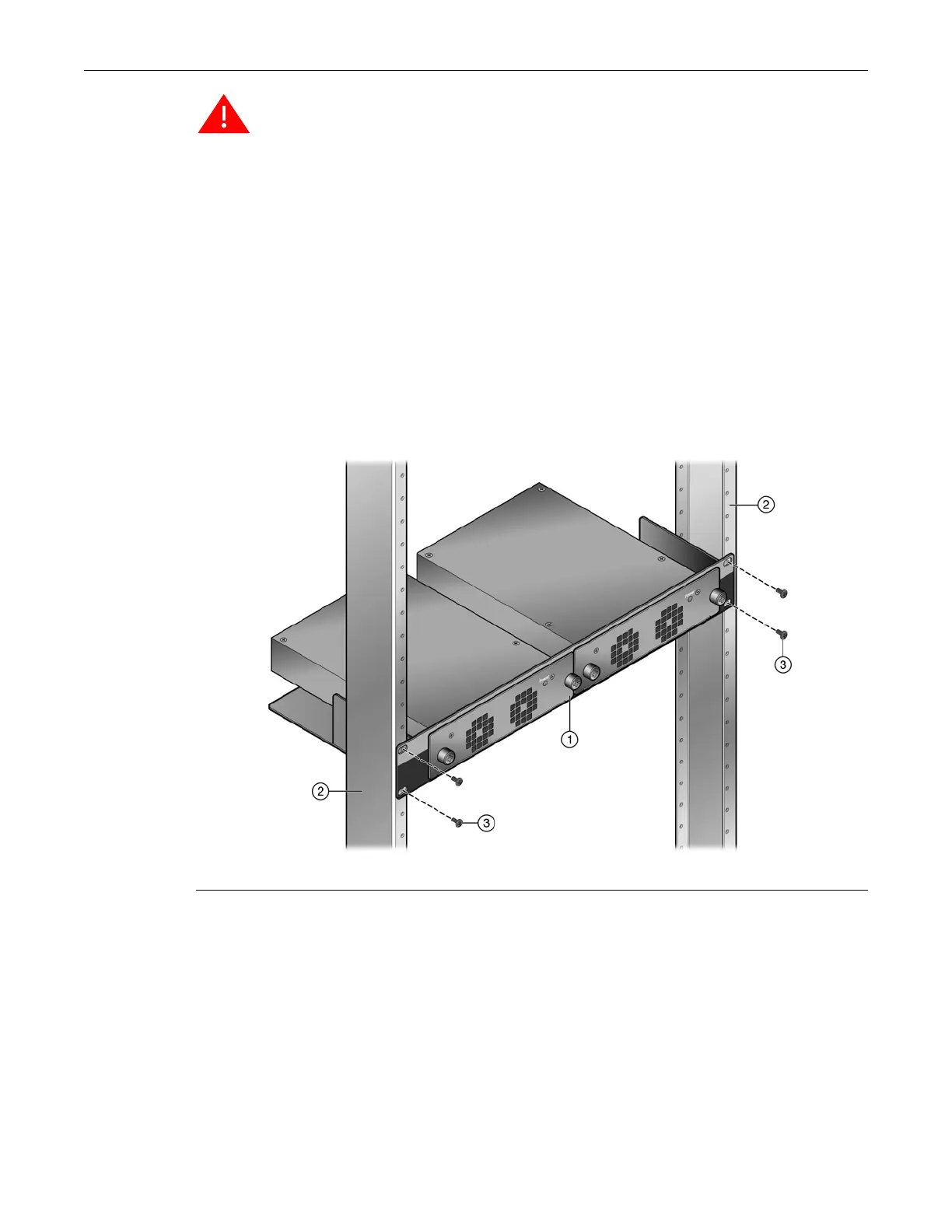

Figure 2-7 Fastening the STK-RPS-150CH2 to the Rack
Warning: Before installing the chassis into a rack, ensure that the rack can support the device(s)
without compromising the stability of the rack. Otherwise, personal injury and/or equipment damage
may result.
Advertencia: Antes de instalar el chassis en un rack, asegurarse que el rack puede soportar el(los)
dispositivo(s) sin comprometer la estabilidad del mismo. De otra forma puede suceder algun tipo de
daño personal o del equipo.
Warnhinweis: Schützen Sie sich vor Verletzungen und Geräteschaden, überzeugen Sie sich vor
der Installation des Chassis in das Rack, von dessen Stabilität.
1 STK-RPS-150CH2 chassis 2 Rails of 19-inch rack 3 Mounting screws
