Epson EB-X12 User Manual

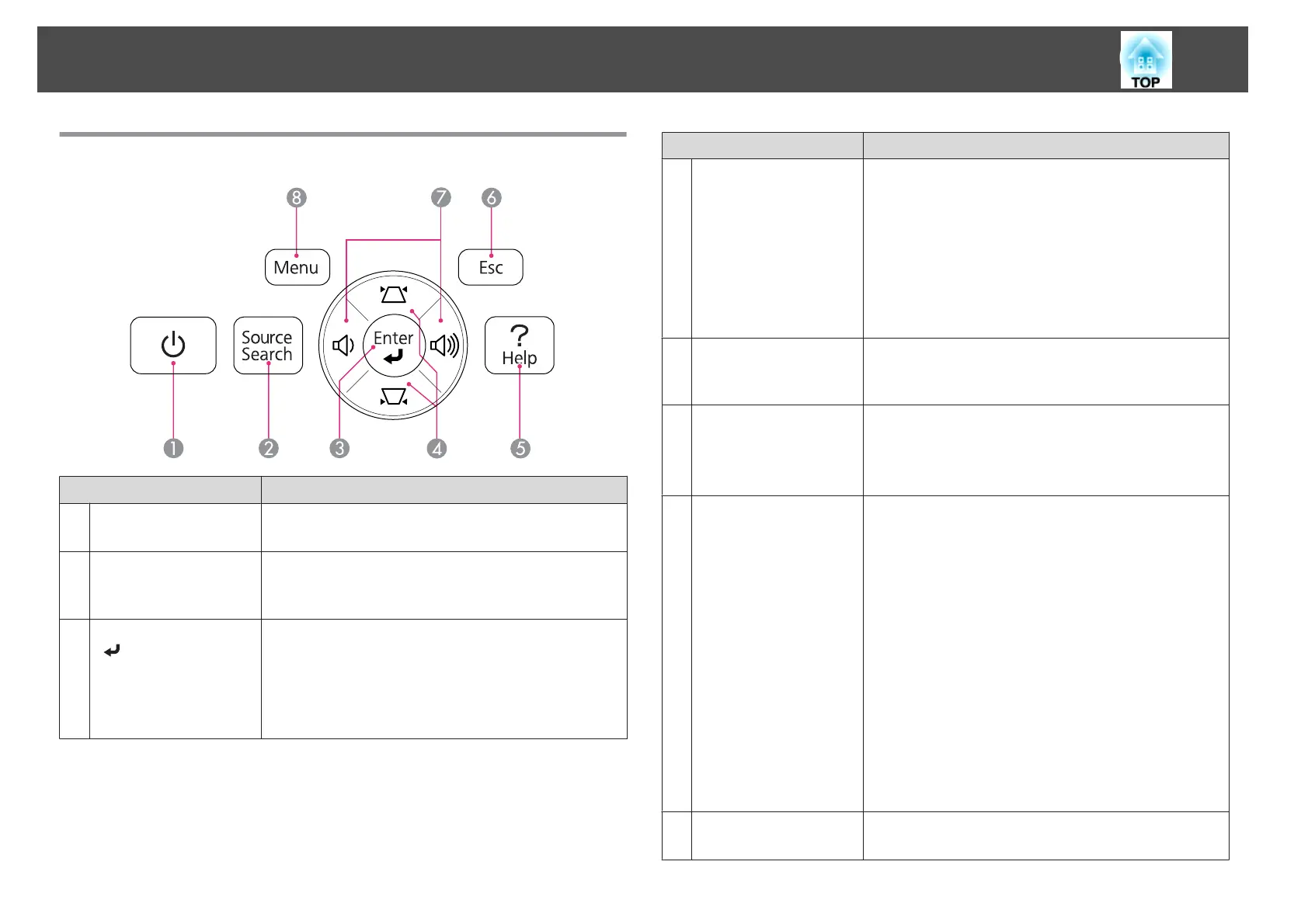

Control Panel
Name Function
A
[t] button
Turns the projector power on or off.
s "From Installation to Projection" p.30
B
[Source Search]
button
Changes to the next input source that is sending an image.
s "Automatically Detect Input Signals and Change the
Projected Image (Source Search)" p.31
C
[Enter] button
[
]
• When the Configuration menu or the Help screen is
displayed, it accepts and enters the current selection and
moves to the next level.
• If pressed while projecting analog RGB signals from the
Computer port, you can automatically optimize
Tracking, Sync., and Position.
Name Function
D
[w][v] buttons
• Displays the Keystone screen allowing you to correct
keystone distortion in vertical and horizontal
directions.
s "Correcting manually" p.37
• If pressed when the Configuration menu or the Help
screen is displayed, these buttons select menu items and
setting values.
s "Using the Configuration Menu" p.65
s "Using the Help" p.75
E
[Help] button
Displays and closes the Help screen which shows you how
to deal with problems if they occur.
s "Using the Help" p.75
F
[Esc] button
• Stops the current function.
• If pressed when the Configuration menu is displayed, it
moves to the previous menu level.
s "Using the Configuration Menu" p.65
G
[a][b] buttons
or [Wide][Tele]
buttons
• For EB-X14/EB-W12/EB-X12/EB-X11
[a] Decreases the volume.
[b] Increases the volume.
s "Adjusting the Volume" p.41
• For EB-S12/EB-S11
[Wide]: Enlarges the size of the projected image.
[Tele]: Reduces the size of the projected image.
s "Adjusting the Image Size" p.40
• Corrects keystone distortion in the horizontal direction
when the Keystone screen is displayed.
s "H/V-Keystone" p.37
• If pressed when the Configuration menu or the Help
screen is displayed, these buttons select menu items and
setting values.
s "Using the Configuration Menu" p.65
s "Using the Help" p.75
H
[Menu] button
Displays and closes the Configuration menu.
s "Using the Configuration Menu" p.65
Part Names and Functions
14

Epson EB-X12 Specifications

General

Matrix size	0.55 \
Projection distance	- m
Projection technology	LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	30 - 300 \
Projector native resolution	XGA (1024x768)
Aspect ratio	4:3
RS-232 ports	0
Dimensions (WxDxH)	295 x 228 x 77 mm
Connectivity technology	Wired
Maximum operating altitude	2286 m
Offset	8:1 %
Zoom capability	Yes
Focal length range	1.58 - 20.28 mm
Lamp type	UHE
Lamp power	200 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
DVI port	No
USB connector type	USB Type-A, USB Type-B
USB 2.0 ports quantity	2
S-Video inputs quantity	1
Analog signal format system	-
RMS rated power	2 W
Product type	Standard throw projector
Product color	Black, White
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.47 W
Power consumption (typical)	283 W
Noise level	37 dB
Country of origin	China
Noise level (economic mode)	29 dB
Operating temperature (T-T)	5 - 35 °C
Pallet width	800 mm
Pallet height	2204 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	78 pc(s)
Quantity per pallet layer	6 pc(s)

Weight and Dimensions

Weight	2300 g
Package depth	360 mm
Package width	335 mm
Package height	158 mm
Package weight	3847 g
