Epson EB-X12 User Manual

ESC/VP21 Commands
You can control the projector from an external device using ESC/VP21.
Before starting
EB-X14/EB-W12/EB-X12/EB-S12
a
Install the USB communication driver (EPSON USB-COM Driver) to
your computer. For information about the EPSON USB-COM Driver,
contact your local dealer or the nearest address provided in the
Epson Projector Contact List.
s Epson Projector Contact List
b
Set USB Type B to Link 21L from the Extended menu.
s Extended - USB Type B p.71
c
Connect the computer's USB port to the projector's USB (Type B)
port with a USB cable.
Start from step 2 from the second time.
EB-X11/EB-S11

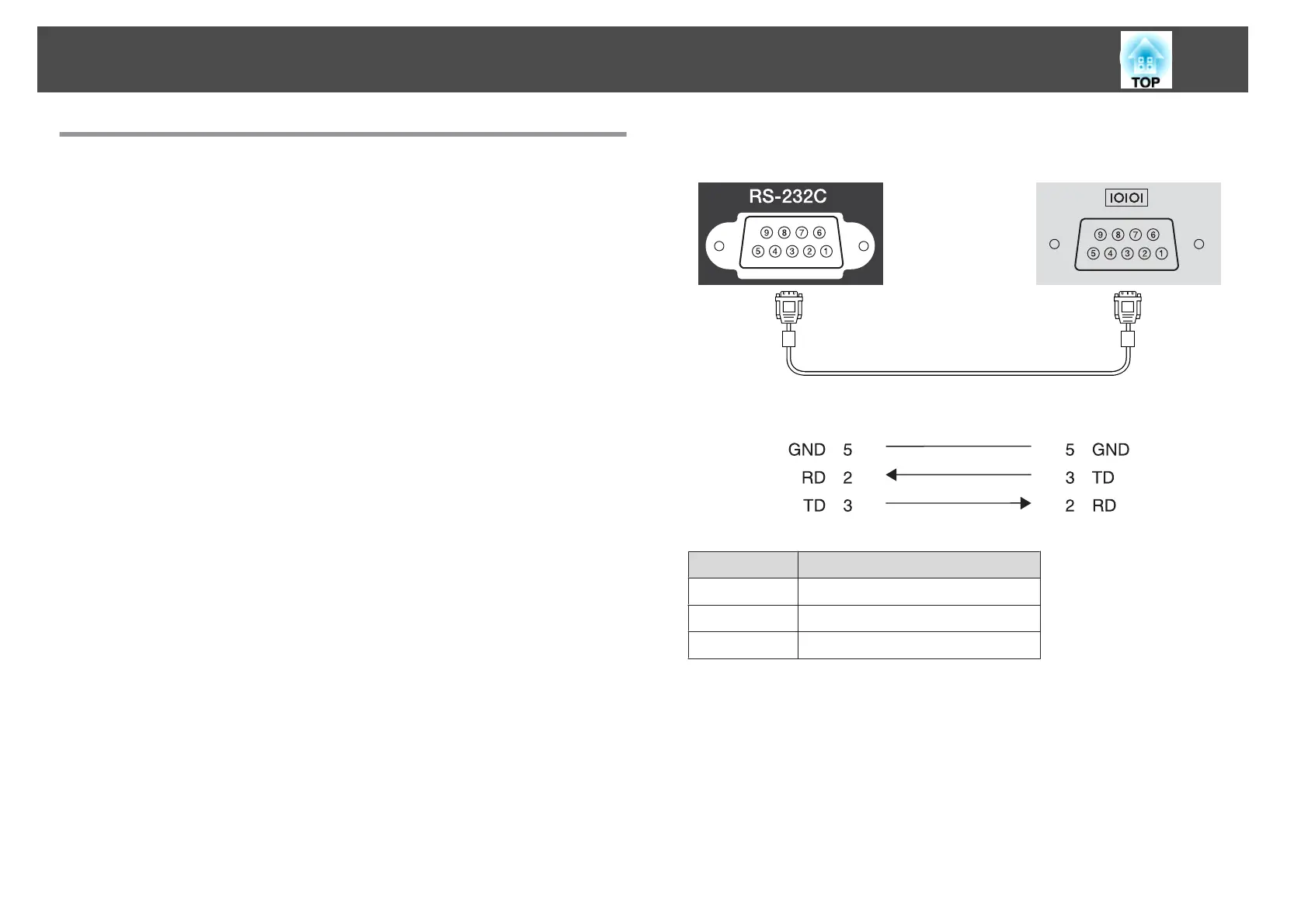

Connect the computer's serial port (D-Sub 9pin) to the projector's RS-232C
port with a PC serial cable.
• Connector shape: D-Sub 9-pin (male)
• Projector input port name: RS-232C
<At the projector> <At the computer>
<At the projector> (PC serial cable) <At the computer>
Signal Name Function
GND Signal wire ground
TD Transmit data
RD Receive data
Command list
When the power ON command is transmitted to the projector, the power
turns on and it enters warm-up mode. When the projector's power has
turned on, a colon ":" (3Ah) is returned.
When a command is input, the projector executes the command and
returns a ":", and then accepts the next command.
Monitoring and Controlling
62
