Epson EB-X14 Service Manual

EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480 Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 106 Revision C
3.5 Writing the DR Data
3.5.1 Overview
In this projector’s case, when either of the Optical Engine or the MA Board is broken, you can replace the broken Optical Engine or MA Board solely if you carry out the following
procedure. In this case (a new combination of them), you will write the DR data adjusted for the characteristics of the Optical Engine (the current one or the replaced one) into the
newly-combined MA Board according to the specified procedure. This section describes the specific repair process including how to write the DR data.

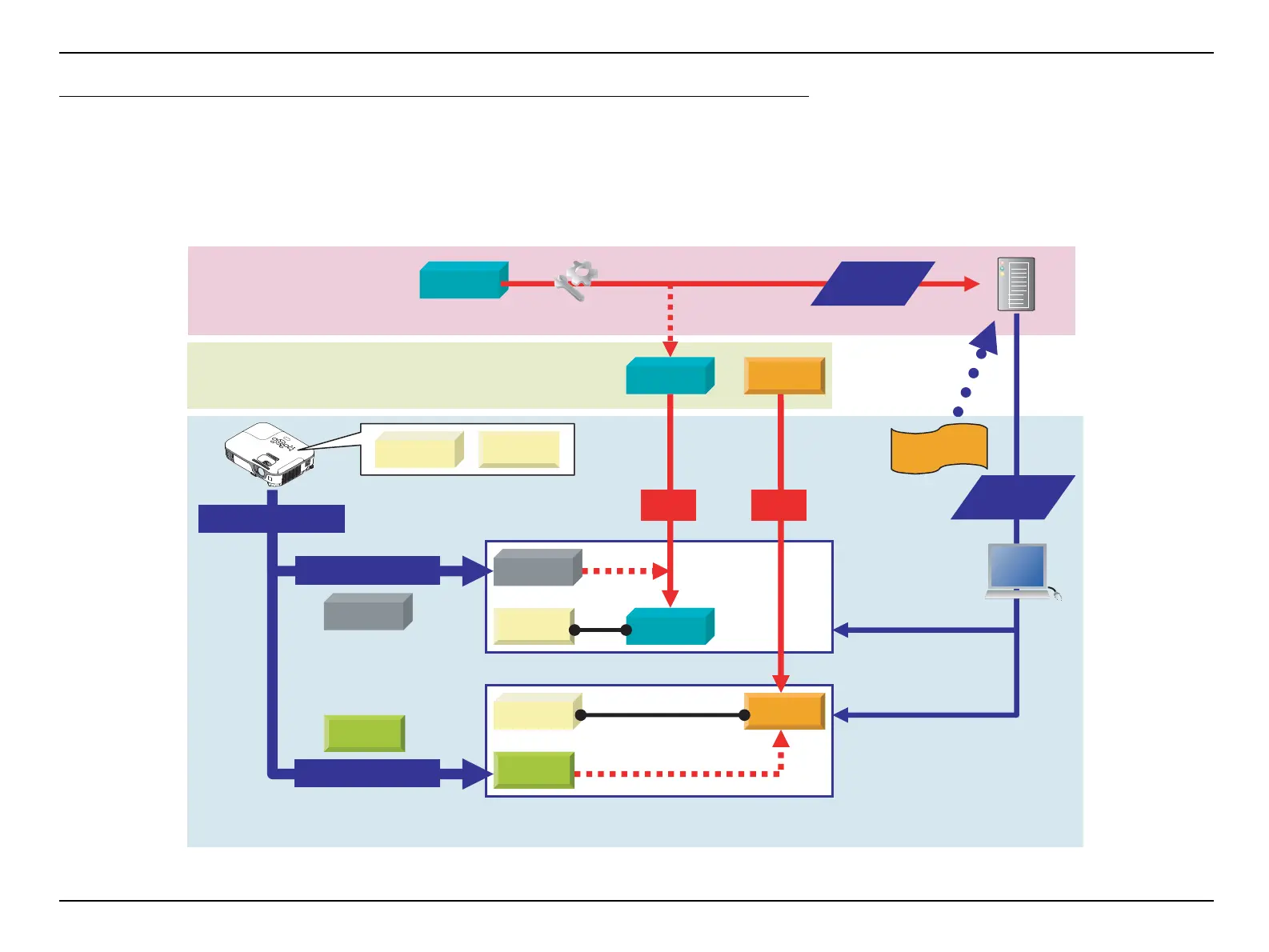

Figure 3-42. Conceptual diagram of the replacement using DR data
Optical adjustment
Troubleshooting
Writing DR data
Factory (ESL)
Distributor’s service section
DR data inquiry
(Engine’s S/N required)
[MA Board] broken
Replace
Optical Engine
MA Board
[Optical Engine] broken
DR data
Optical Engine
Optical Engine
Optical Engine
Optical Engine
MA Board
MA Board
MA Board
MA Board
MA Board
Writing DR data
Replace
DR data
Optical Engine
Optical Engine
ASP Depository

Epson EB-X14 Specifications

General

Native aspect ratio	4:3
Projection distance	1.1 - 10.8 m
Projection technology	LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	30 - 300 \
Projector native resolution	XGA (1024x768)
Keystone correction, horizontal	±30 °
Projector brightness (economic mode)	2400 ANSI lumens
Focus	Manual
Throw ratio	1.48 - 1.77:1
Focal length range	17 - 20 mm
Lamp type	E-TORL
Lamp power	200 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
DVI port	No
AC (power) in	Yes
Audio (L/R) in	-
Composite video in	0
USB connector type	USB Type-A, USB Type-B
USB 2.0 ports quantity	2
S-Video inputs quantity	1
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
RMS rated power	2 W
Noise level	37 dB
Preset modes	Dynamic, Presentation, sRGB, Vivid photo
Country of origin	China
Noise level (economic mode)	29 dB
Placement	Desktop
Product type	Standard throw projector
Product color	Black, White
Cable lock slot type	Kensington
Power source	AC
AC input voltage	220 - 240 V
Power consumption (standby)	0.47 W
Power consumption (typical)	270 W
Pallet width	800 mm
Pallet height	2204 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	78 pc(s)
Quantity per pallet layer	6 pc(s)
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	228 mm
Width	295 mm
Height	77 mm
Weight	2300 g
Package depth	360 mm
Package width	335 mm
Package height	158 mm
Package weight	3964 g
